Three-Way Catalytic Converter (TWC) System: Components

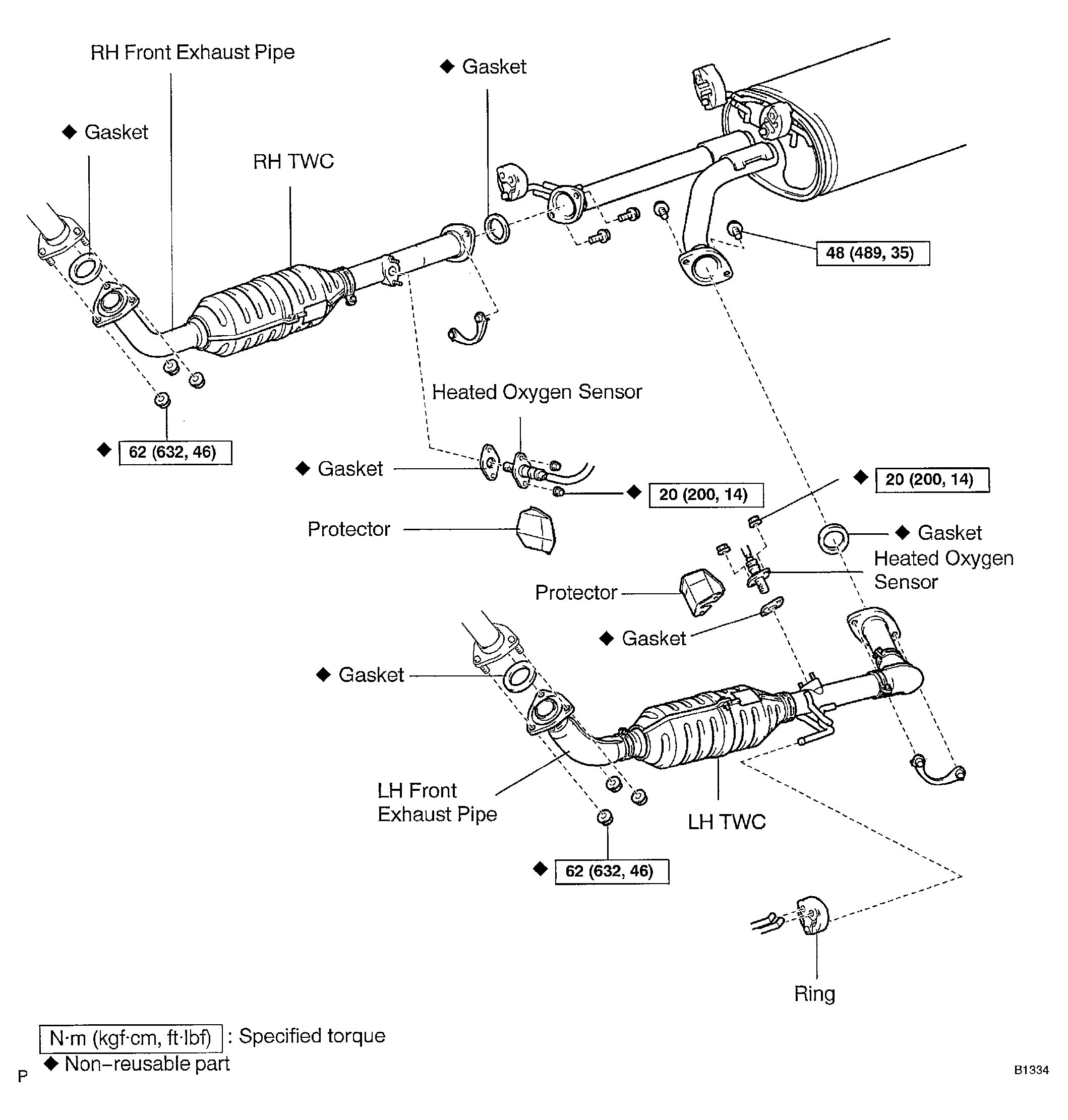

Fig 1: Identifying Catalytic Converter System Components

G04207935

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
