Inspect Fuel Tank And Line

1. Check the fuel lines for cracks or leakage, and all connections for deformation.
   Fig 1: Inspecting Fuel Tank And Line

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check the fuel tank vapor vent system hoses and connections for looseness, sharp bends or damage.
3. Check the fuel tank for deformation, cracks, fuel leakage or tank band looseness.
4. Check the filler neck for damage or fuel leakage.
5. Hose and pipe connections are as shown in Fig 3 .

If a problem is found, repair or replace the parts as necessary.

Fig 2: Measuring Dimension

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

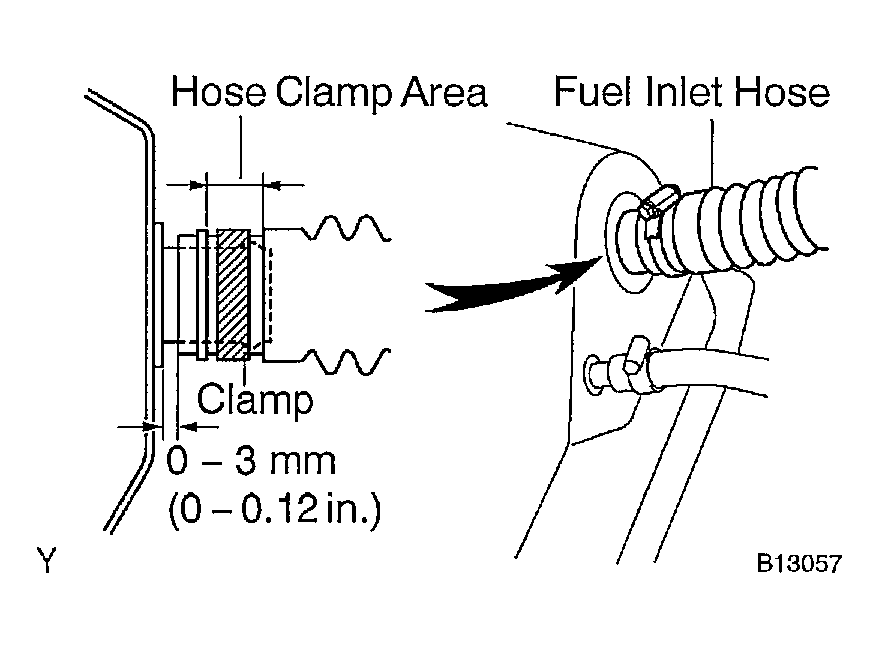

Fig 3: Checking Fuel Inlet Hose

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
