Engine Oil Pump Components: Replacement

REPLACE CRANKSHAFT FRONT OIL SEAL

1. If the oil pump is removed from the cylinder block:

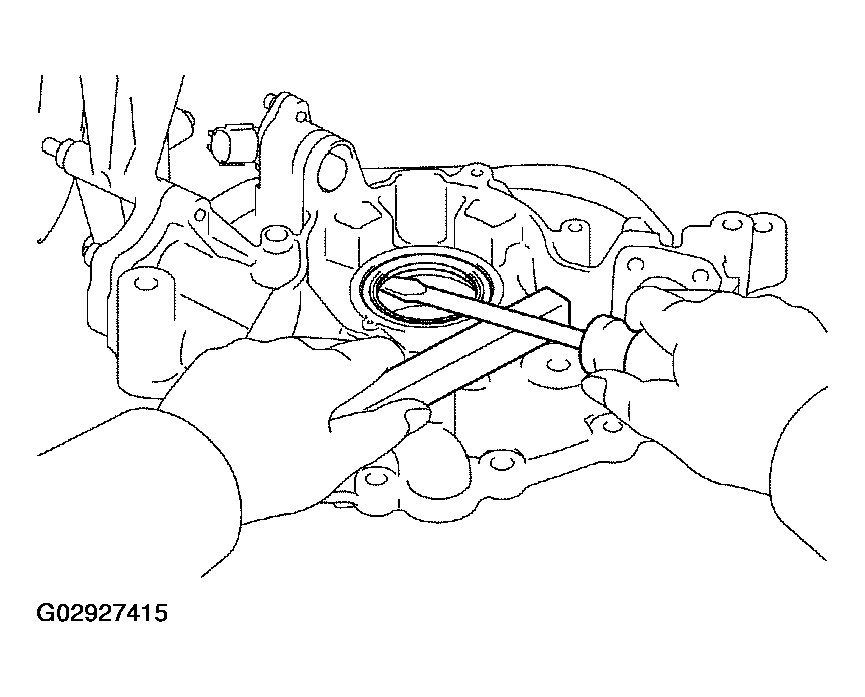

   1. Using a screwdriver, pry out the oil seal.
      Fig 1: Replacing Crankshaft Oil Seal

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

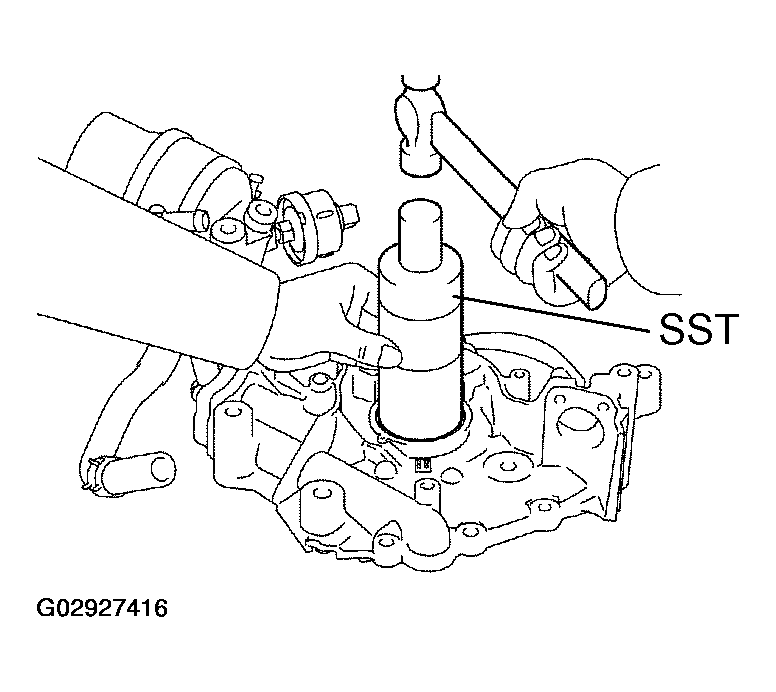

   2. Using SST and a hammer, tap in a new oil seal until its surface is flush with the oil pump body edge.

      SST 09316-60011 (09316-02211)

   3. Apply MP grease to the oil seal lip.
   Fig 2: Tapping New Oil Seal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. If the oil pump is installed to the cylinder block:

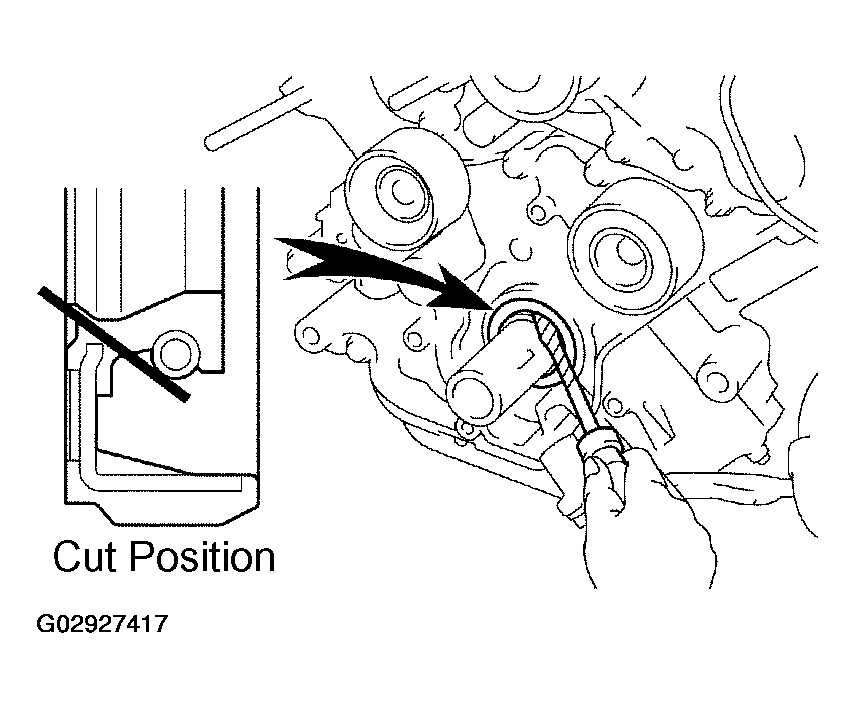

   1. Using a knife, cut off the oil seal lip.
   2. Using a screwdriver, pry out the oil seal.
      NOTE: Be careful not to damage the crankshaft. Tape the screwdriver tip.
      Fig 3: Prying Out Oil Seal

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Apply MP grease to a new oil seal lip.

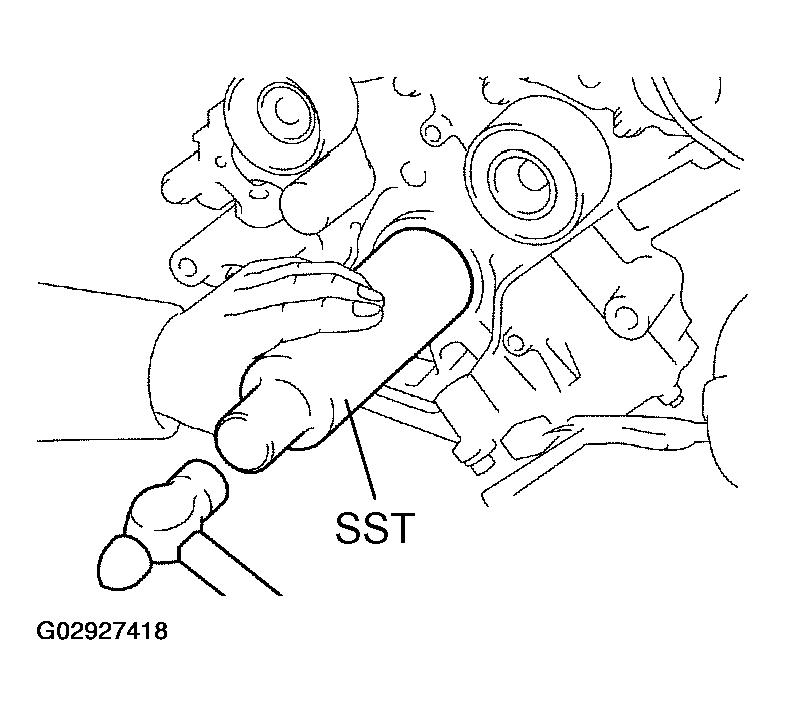

   4. Using SST and a hammer, tap in the oil seal until its surface is flush with the oil pump body edge.

   SST 09316-60011 (09316-02511)

   Fig 4: Tapping New Oil Seal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
