Home >> Toyota >> 2004 >> Sequoia SR5, 4WD >> Repair and Diagnosis >> Engine Mechanical >> Engine Exhaust Assembly >> Components

Engine Exhaust Assembly: Components

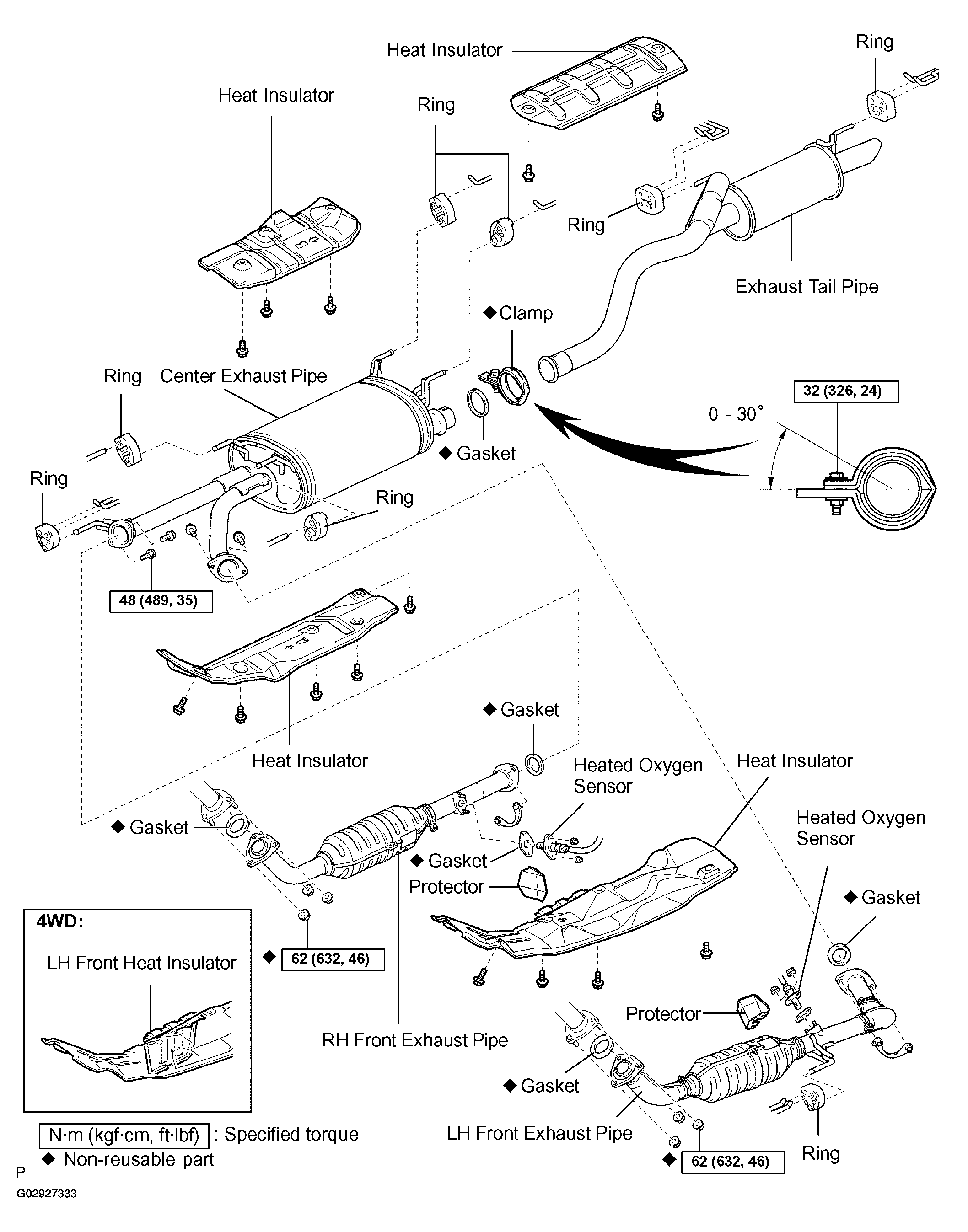

Fig 1: Identifying Exhaust System Components

G02927333

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
