Front Brake Speed Sensor: Removal

  1. REMOVE FRONT WHEEL
    1. Torque: 110 N.m (1,150 kgf.cm, 83 ft.lbf)
  2. DISCONNECT SPEED SENSOR CONNECTOR
  3. REMOVE SPEED SENSOR
    1. Remove the clips and 3 clamp bolts holding the sensor harness from the frame, upper arm and steering knuckle.
      1. Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)
    2. Remove the bolt and speed sensor from the steering knuckle.
      1. Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)

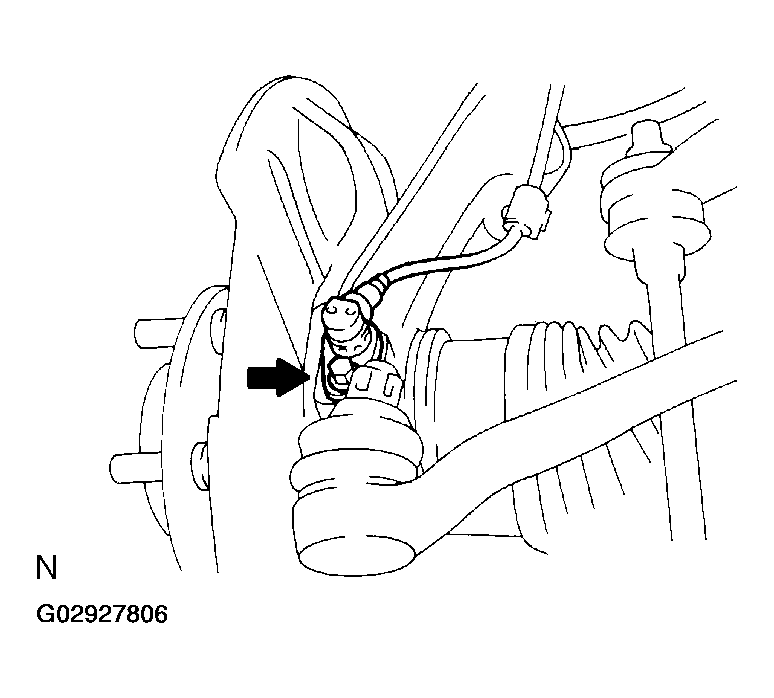

    Fig 1: Removing Speed Sensor
    G02927806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
