Home >> Toyota >> 2004 >> Sequoia SR5, 4WD >> Repair and Diagnosis >> Brakes >> Traction Control >> Front Brake Speed Sensor >> Components

Front Brake Speed Sensor: Components

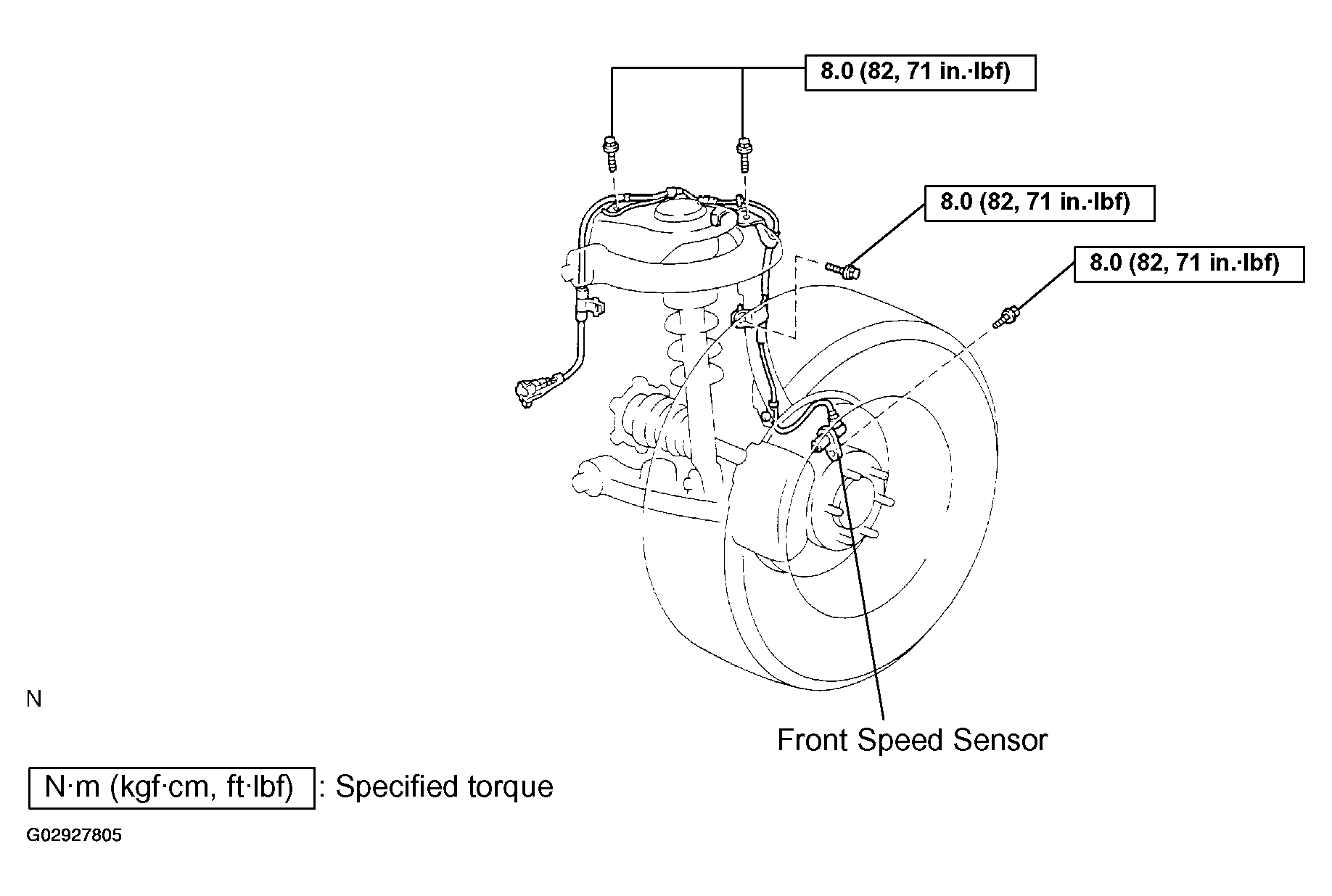

Fig 1: Identifying Front Speed Sensor Components

G02927805

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
