Quarter Window Glass: Removal

w/Rear No. 2 seat:
REMOVE REAR NO. 2 SEAT

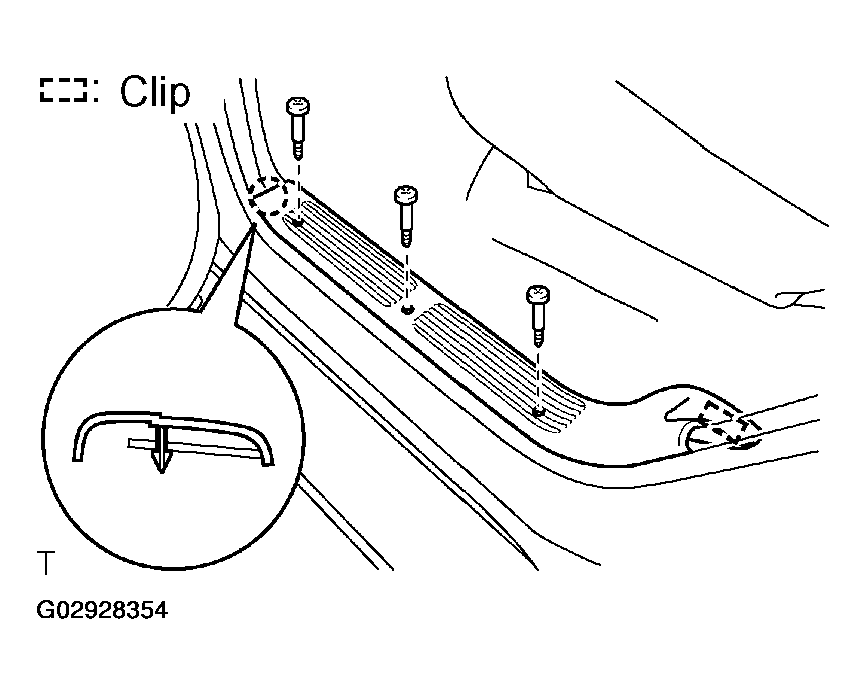

REMOVE REAR DOOR SCUFF PLATE
1. Remove the 3 screws.
2. Using a screwdriver, remove the rear door scuff plate.
NOTE: Tape the screwdriver tip before use.

Fig 1: Removing Rear Door Scuff Plate

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP
REMOVE DOME LIGHT
1. Using a screwdriver, remove the lens.
  NOTE: Tape the screwdriver tip before use.
2. Remove the 2 screws and dome light, then disconnect the connector.

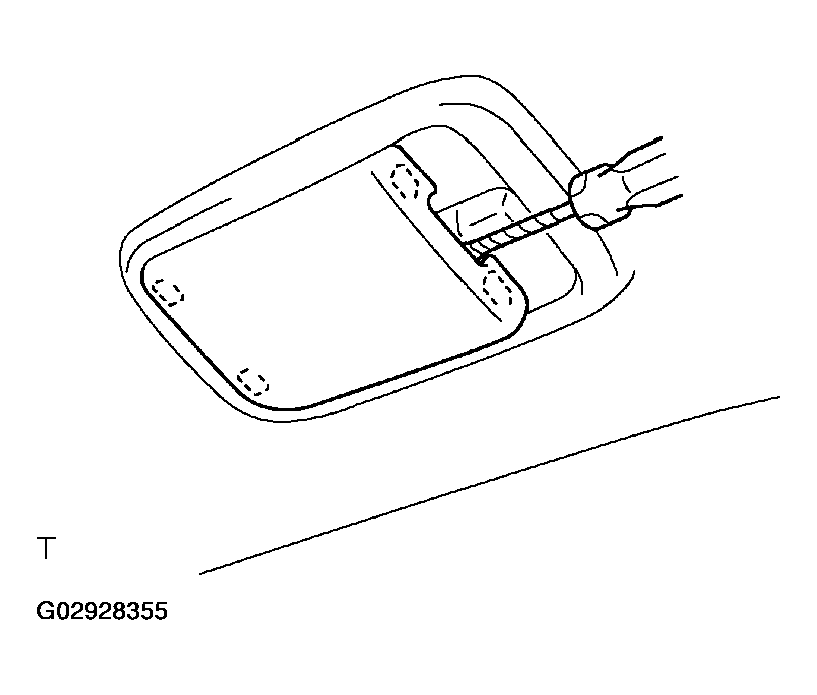

Fig 2: Removing Dome Light
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR TRIM COVER
Using a screwdriver, remove the rear trim cover.

NOTE: Tape the screwdriver tip before use.

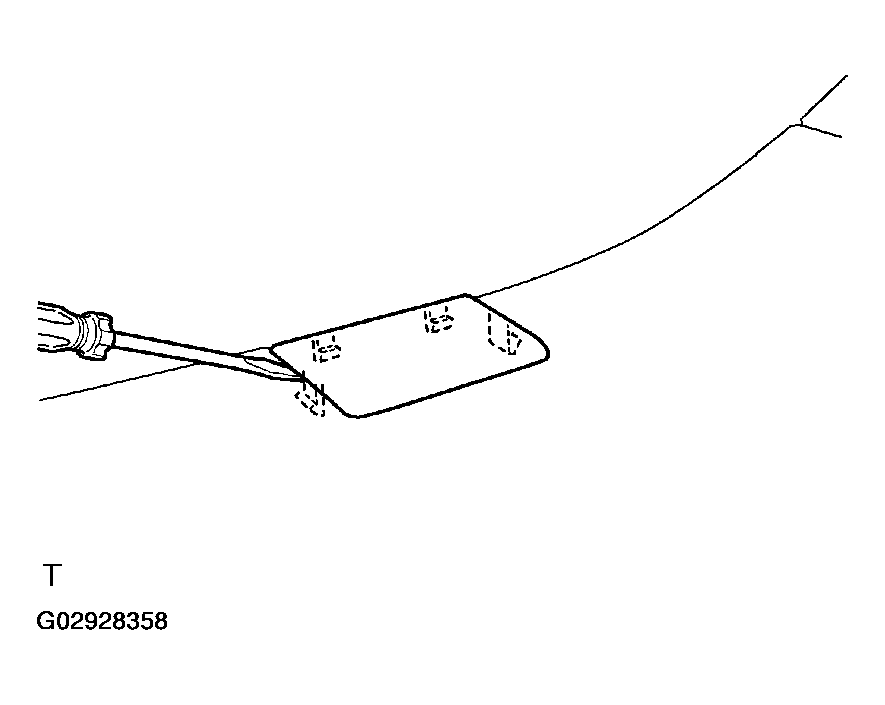

Fig 3: Removing Rear Trim Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR TRIM
Using a screwdriver, remove the rear trim.

NOTE: Tape the screwdriver tip before use.

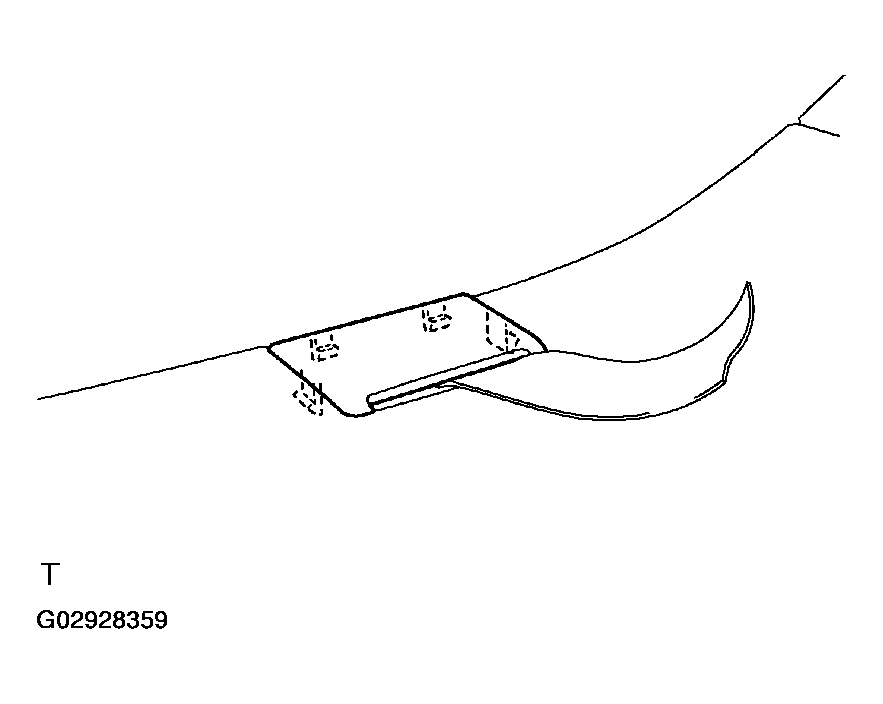

Fig 4: Removing Rear Trim

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR FLOOR MAT SUPPORT PLATE
w/o Rear No. 2 seat:
REMOVE QUARTER TRIM HOLE COVER

Using a screwdriver, remove the quarter trim hole cover.

NOTE: Tape the screwdriver tip before use.

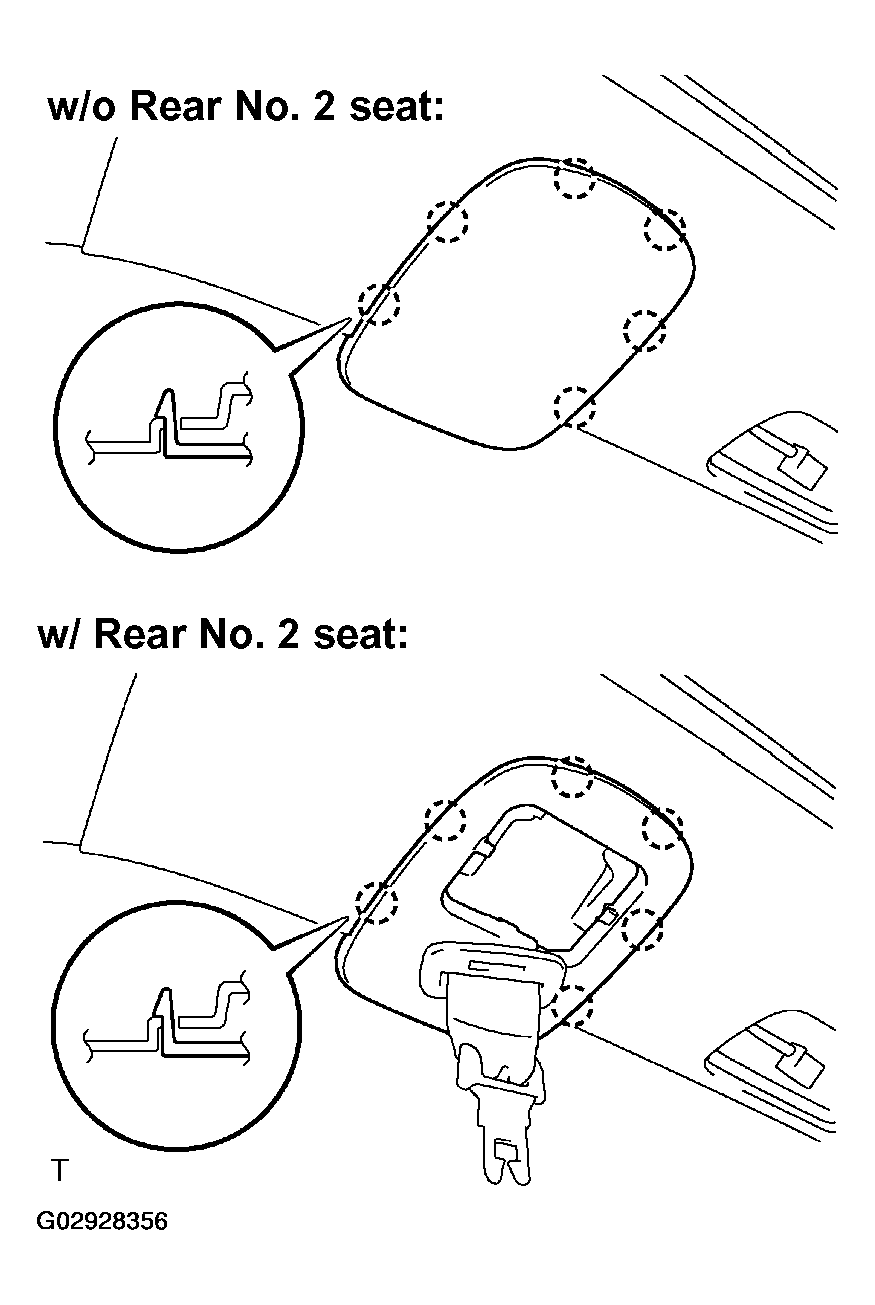

Fig 5: Removing Quarter Trim Hole Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
w/ Rear No. 2 seat:
REMOVE QUARTER TRIM UPPER BELT HOLE COVER

Using a screwdriver, remove the quarter trim upper belt hole cover.

NOTE: Tape the screwdriver tip before use.

Fig 6: Removing Quarter Trim Upper Belt Bole Cover

REMOVE QUARTER TRIM PANEL
1. w/o Tonneau cover:
  Using a screwdriver, remove the 2 No. 1 tonneau cover holder caps.

  NOTE: Tape the screwdriver tip before use.
2. Remove the 2 package holder net hooks.
3. Remove the rear No. 1 seat outer belt floor anchor.

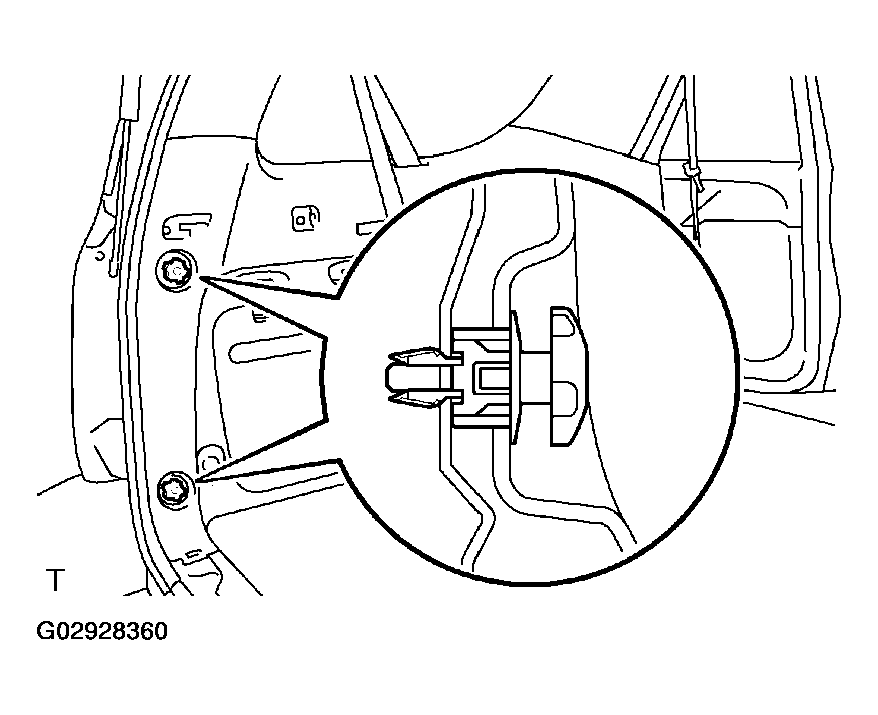

  Fig 7: Removing Rear No - 1 Seat Outer Belt Floor Anchor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

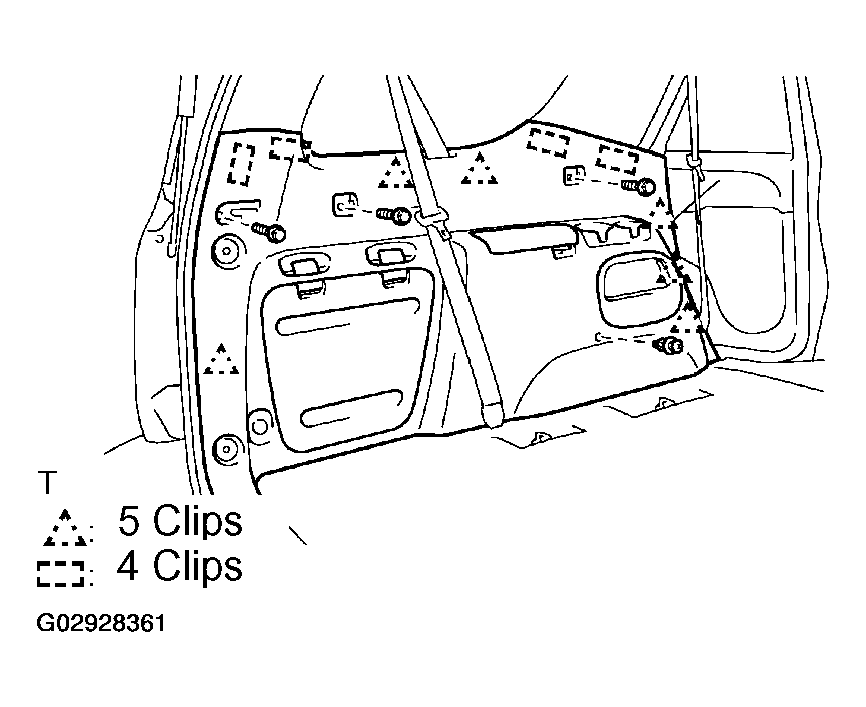

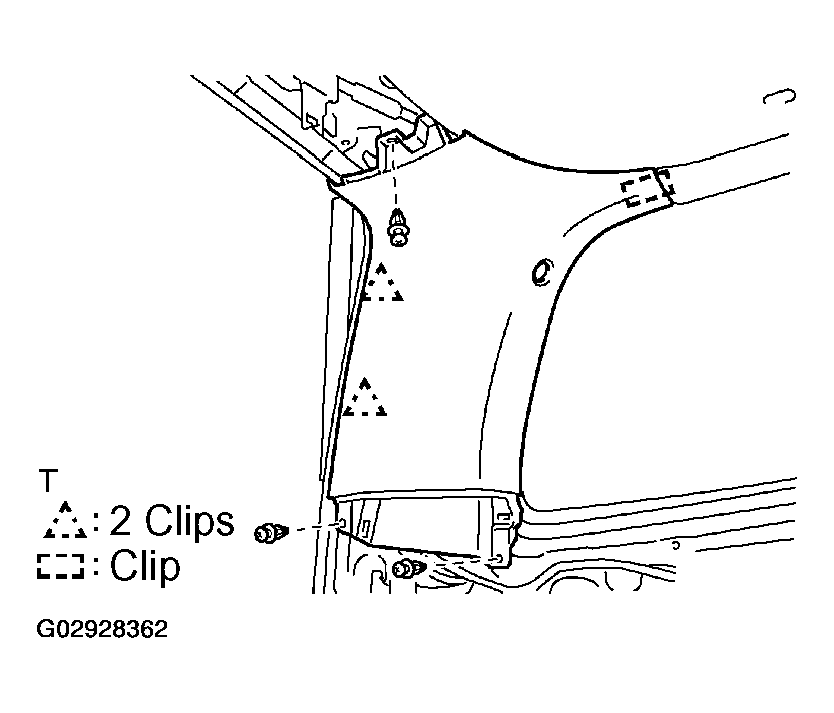

4. Remove the 3 bolts, clip and quarter trim panel, then disconnect the connector.
w/Rear No. 2 seat:
REMOVE REAR NO. 2 SEAT OUTER BELT SHOULDER ANCHOR
REMOVE NO. 2 REAR WINDOW SIDE GARNISH
Remove the 2 clips and No. 2 rear window side garnish.

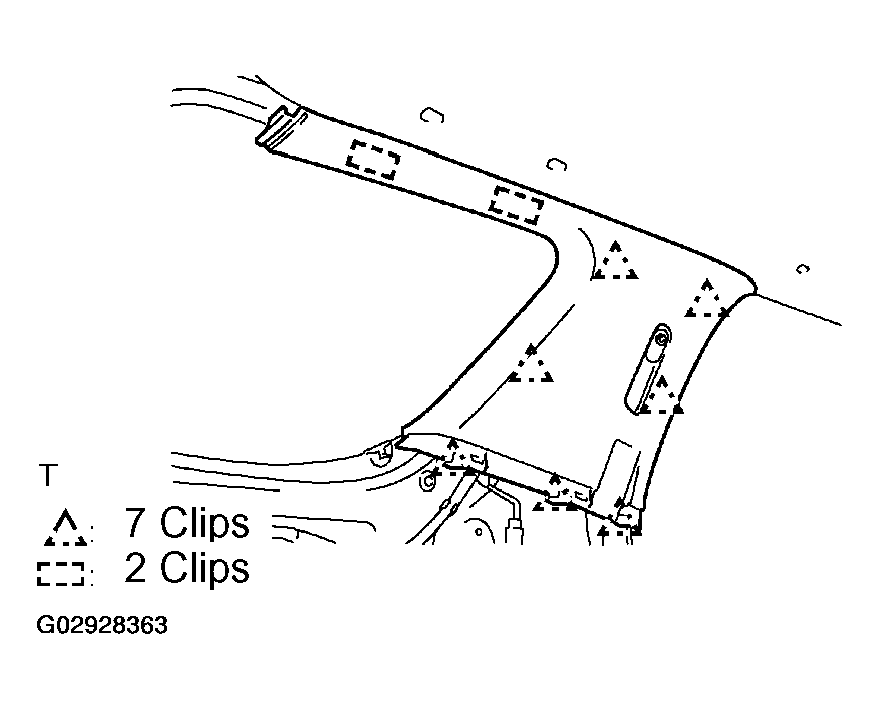

Fig 9: Removing No-2 Rear Window Side Garnish
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR NO. 1 SEAT OUTER BELT SHOULDER ANCHOR
1. Using a screwdriver, remove the anchor cap.
  NOTE: Tape the screwdriver tip before use.
2. Remove the rear No. 1 seat outer belt shoulder anchor.
REMOVE REAR WINDOW SIDE GARNISH
Remove the rear window side garnish.

Fig 10: Removing Rear Window Side Garnish
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE QUARTER WINDOW GLASS
1. w/ Glass antenna:
  Disconnect the connectors from the glass antenna terminals.

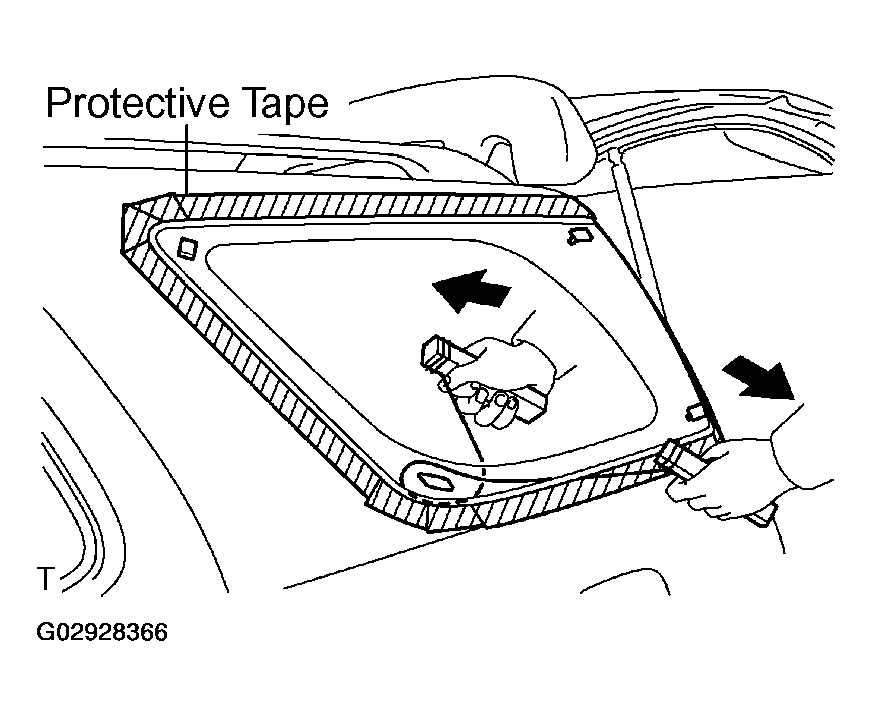

2. Push a piano wire through from the interior.
3. Tie both wire ends to wooden blocks or similar objects.
  NOTE: Apply protective tape to the outer surface to keep the surface from being scratched.

  NOTE: When separating the glass, take care not to damage the paint and interior.

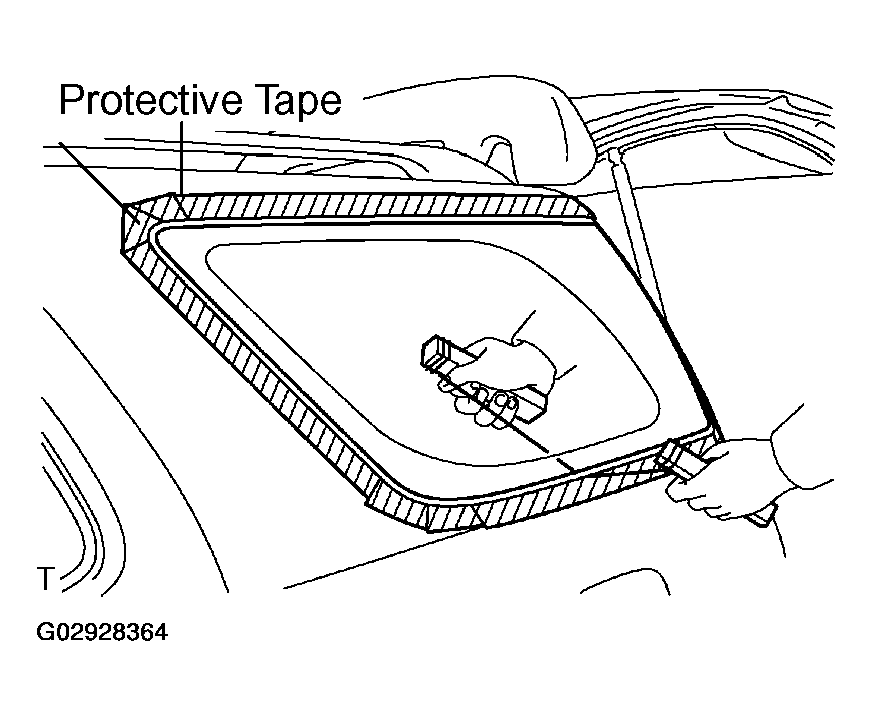

  Fig 11: Removing Quarter Window Glass
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Cut the adhesive by pulling the piano wire around it.

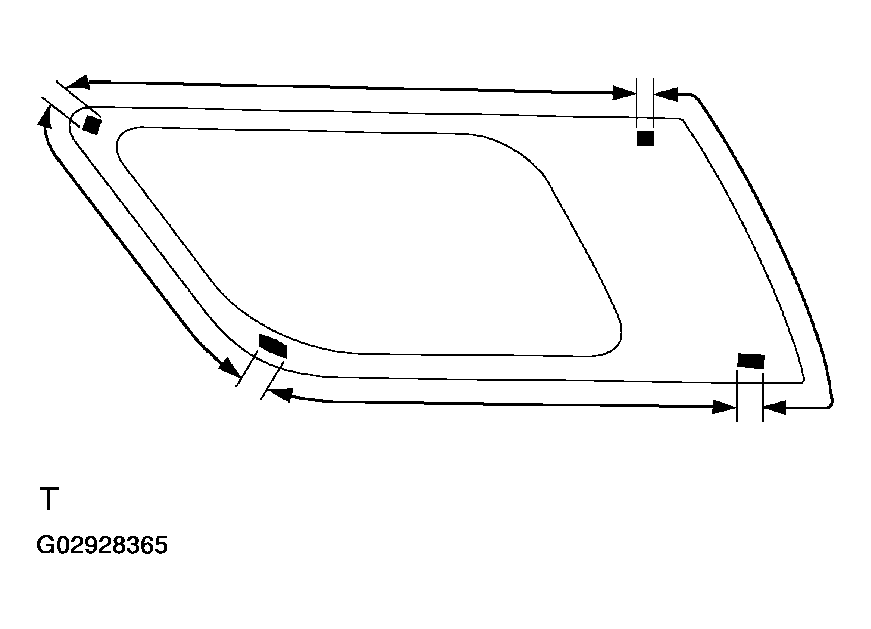

  NOTE: Cut the adhesive areas as shown in the illustration, leaving the adhesive where the clips are.

  Fig 12: Locating Adhesives Areas For Cutting
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Push the piano wire through as shown in the illustration, cut off the adhered part to the clips.

  Fig 13: Installing Piano Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the glass.
NOTE: Leave as much of the adhesive on the body as possible when cutting off the glass.
