Back Door Power Window Control System: Location

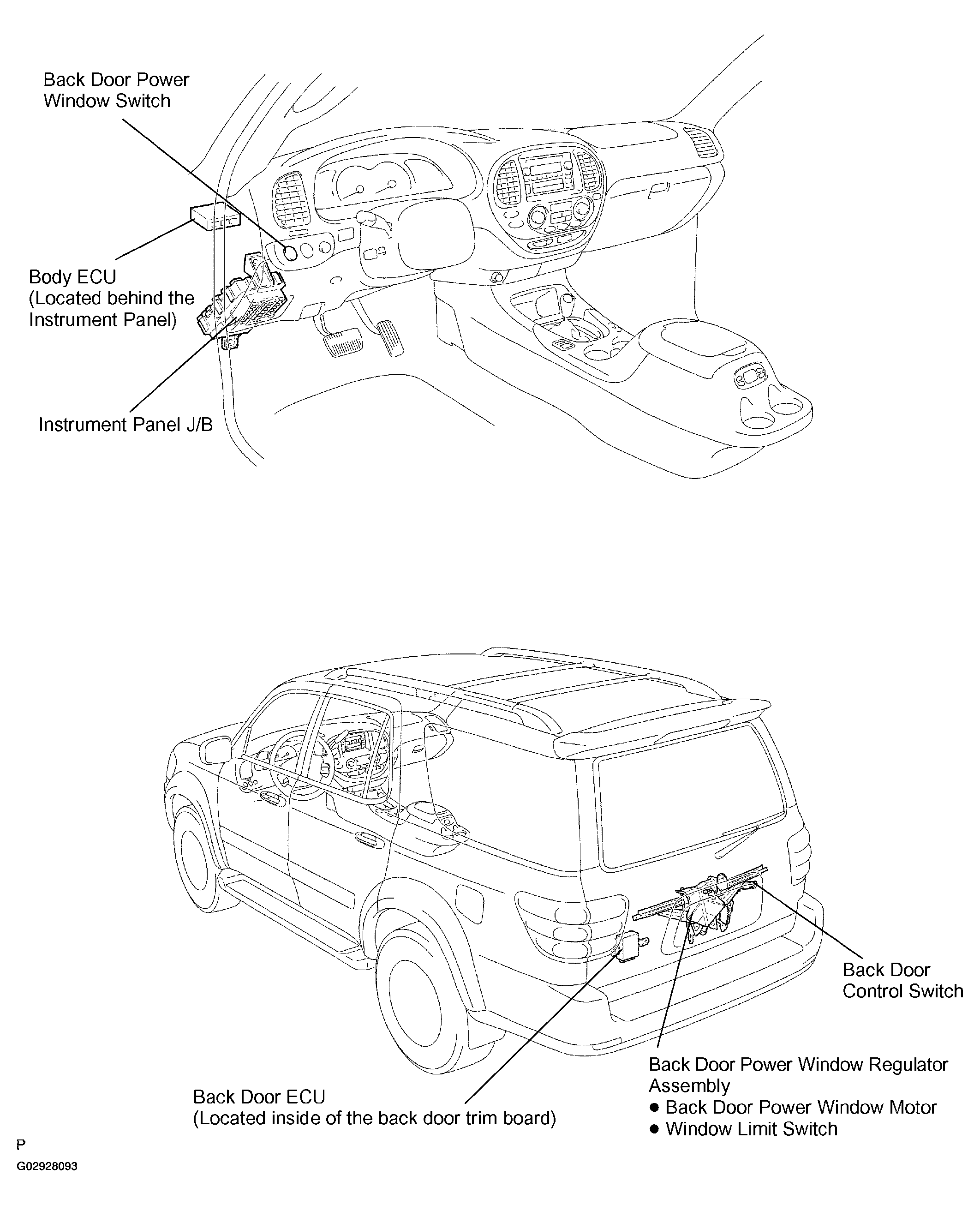

Fig 1: Back Door Power Window Control System Components

G02928093

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
