Tilt Steering Column: Disassembly

NOTE: When using a vise, do not overtighten it.
  1. REMOVE TRANSPONDER KEY COIL
  2. REMOVE KEY CYLINDER LAMP ASSEMBLY
  3. REMOVE COLUMN UPPER BRACKET
    1. Using a centering punch, mark the center of the 2 tapered-head bolts.
    2. Using a 3 - 4 mm (0.12 - 0.16 in.) drill, drill into the 2 bolts.
    3. Using a screw extractor, remove the 2 bolts and column upper bracket.
  4. REMOVE SHIFT LEVER

    Using a Torx socket wrench, remove the Torx screw and shift lever.

  5. REMOVE PARK LOCK CABLE ASSEMBLY (See  REMOVAL  )

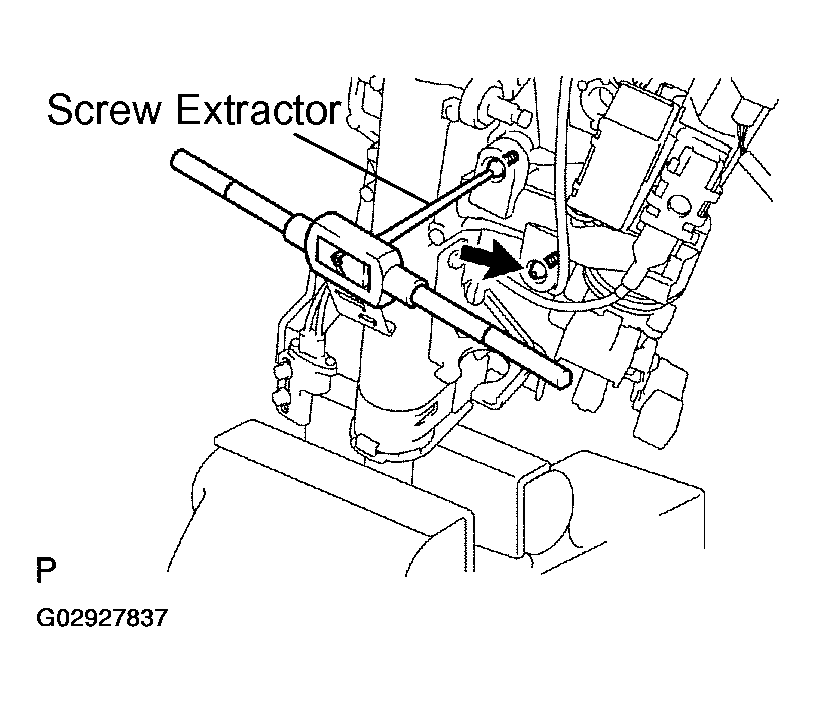

    Fig 1: Removing Column Upper Bracket
    G02927837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE SHIFT LEVER HOUSING

    Using a Torx socket wrench, remove the 3 Torx screws and shift lever housing.

  7. REMOVE RELEASE LEVER SPRING
  8. REMOVE TURN SIGNAL BRACKET

    Using a Torx socket wrench, remove the 2 Torx screws and turn signal bracket.

    Fig 2: Removing Shift Lever Housing
    G02927838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE STEERING COLUMN HOUSING WITH MAIN SHAFT ASSEMBLY
    1. Set SST, plate washer (18 and 36 mm outer diameter) and screw (4.0 mm diameter, 0.7 mm pitch, 15.0 mm length), as shown in the illustration. And then remove the 2 pivot pins.
      1. SST 09910-00015 (09911-00011, 09912-00010)
      1. Reference
      2. Plate washer A (18 mm): 90562-04012
      3. Plate washer B (36 mm): 90201-10201
      4. Screw: 90154-40015
    2. Remove the column housing with the shaft assembly from the column tube assembly.

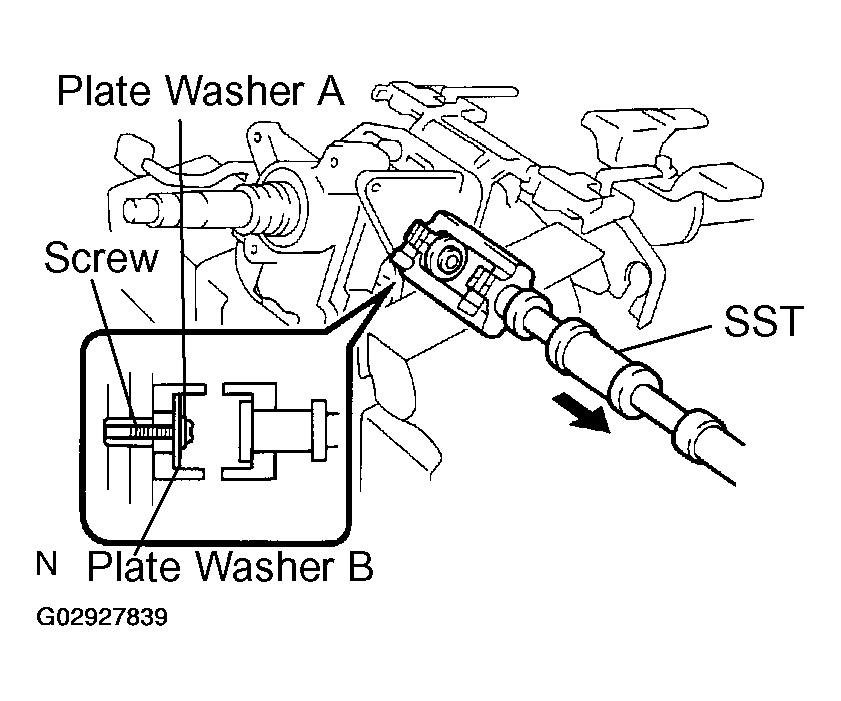

      Fig 3: Locating Plate Washer & Screw Position
      G02927839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Do not bend the universal joint of the main shaft assembly more than 15°.
    3. Remove the tilt spring and spring guide.
  10. REMOVE 2 TILT NO. 1 SUPPORT
  11. REMOVE MAIN SHAFT STOPPER
  12. REMOVE MAIN SHAFT ASSEMBLY
    1. Install SST to the main shaft assembly, as shown in the illustration.
      1. SST 09612-07010
    2. Using SST, compress the compression spring.
      NOTE: Do not bend the universal joint of the shaft assembly more than 15°.
      NOTE: Hold the shaft assembly with your hand so that it does not rotate.
      Fig 4: Removing Retaining Ring
      G02927840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a screwdriver, remove the No. 2 steering column ring.
    4. Remove the spring retainer, compression spring, upper bearing inner race seat and inner race.
  13. REMOVE TILT LEVER

    Remove the tilt lever lock shaft and shift lever.
