Inspect Switch

WARNING: This page is about a different variant/trim than selected.

Check that there is continuity between terminals, as shown.

SWITCH POSITION SPECIFIED CONDITION

Switch position	Specified condition
Push	Continuity
Free	No continuity

If operation is not as specified, replace the switch.

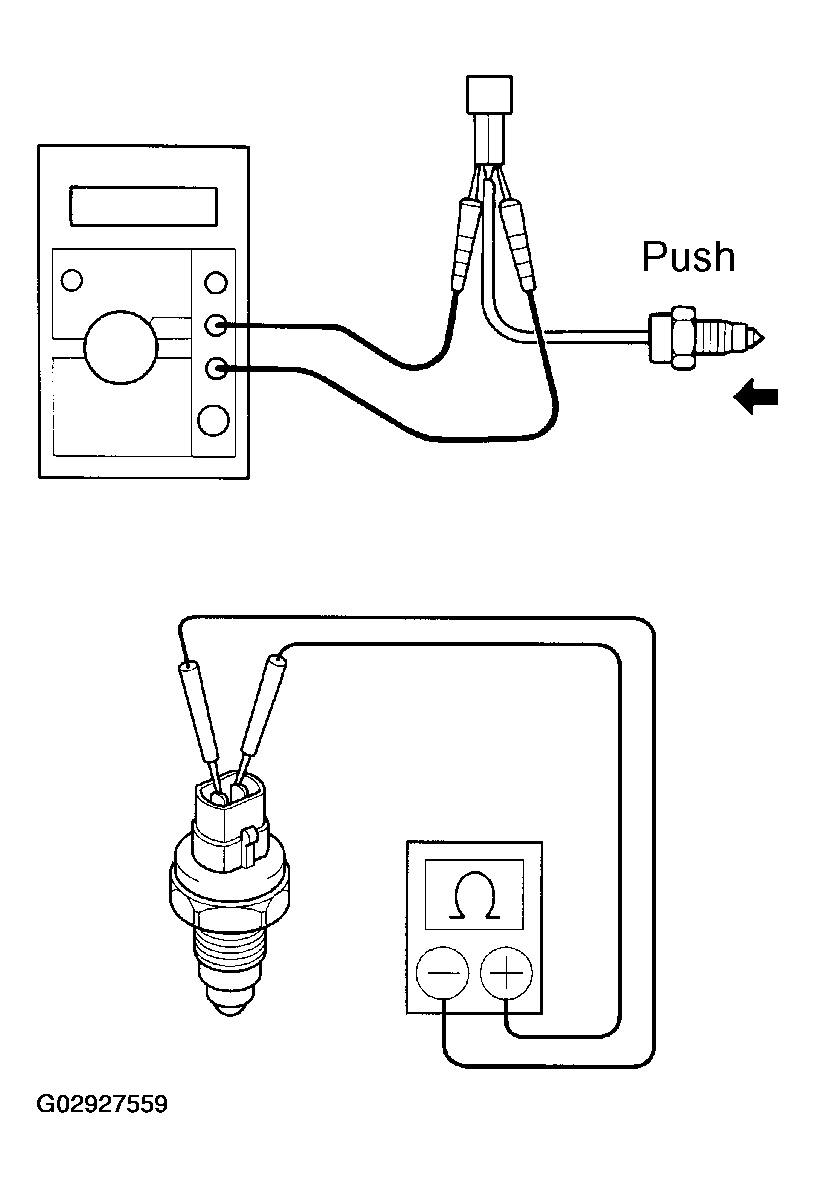

Fig 1: Inspecting Switch
