Transfer Assembly: Components

WARNING: This page is about a different variant/trim than selected.

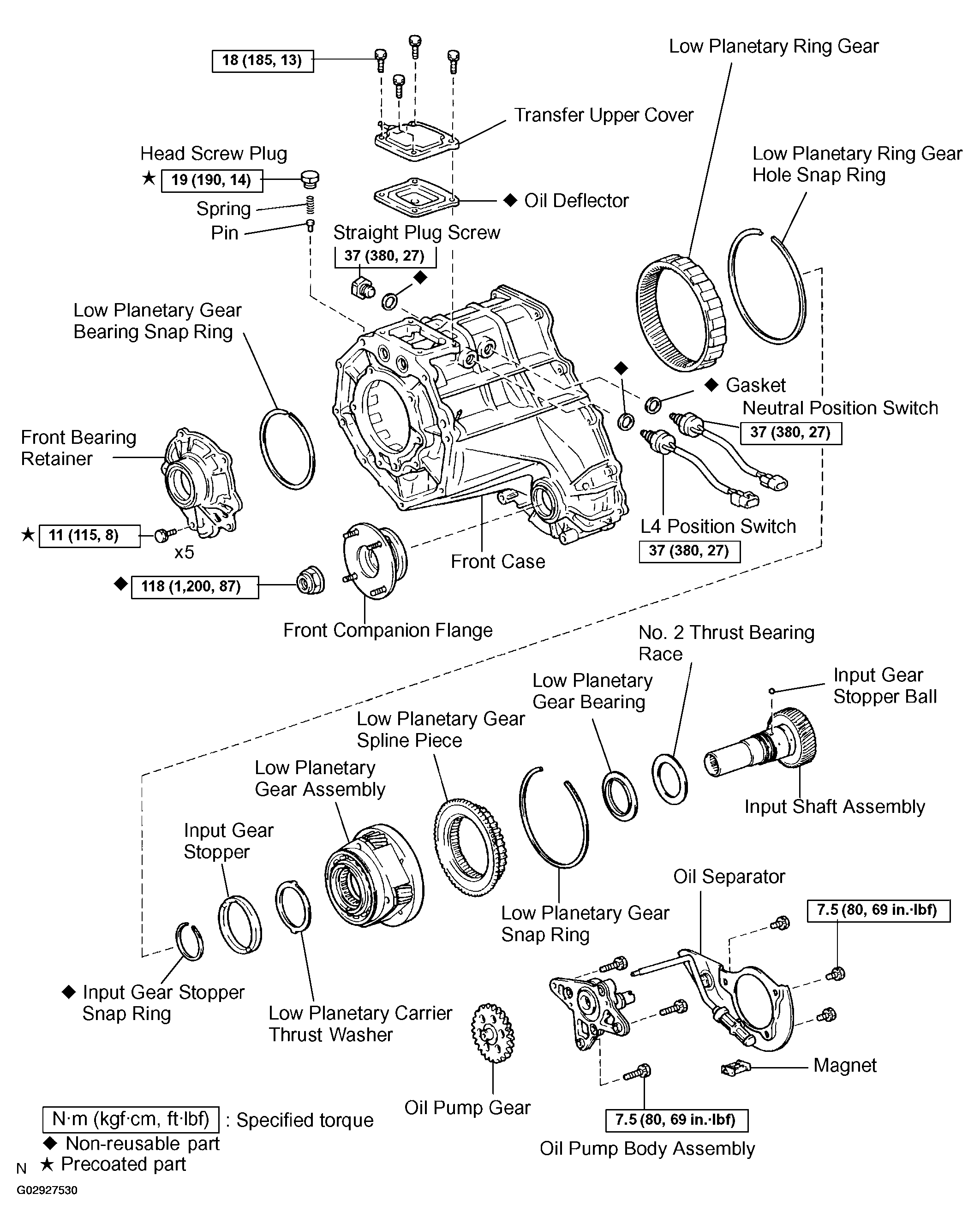

Fig 1: Identifying Transfer Assy Components (1 Of 2)
G02927530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

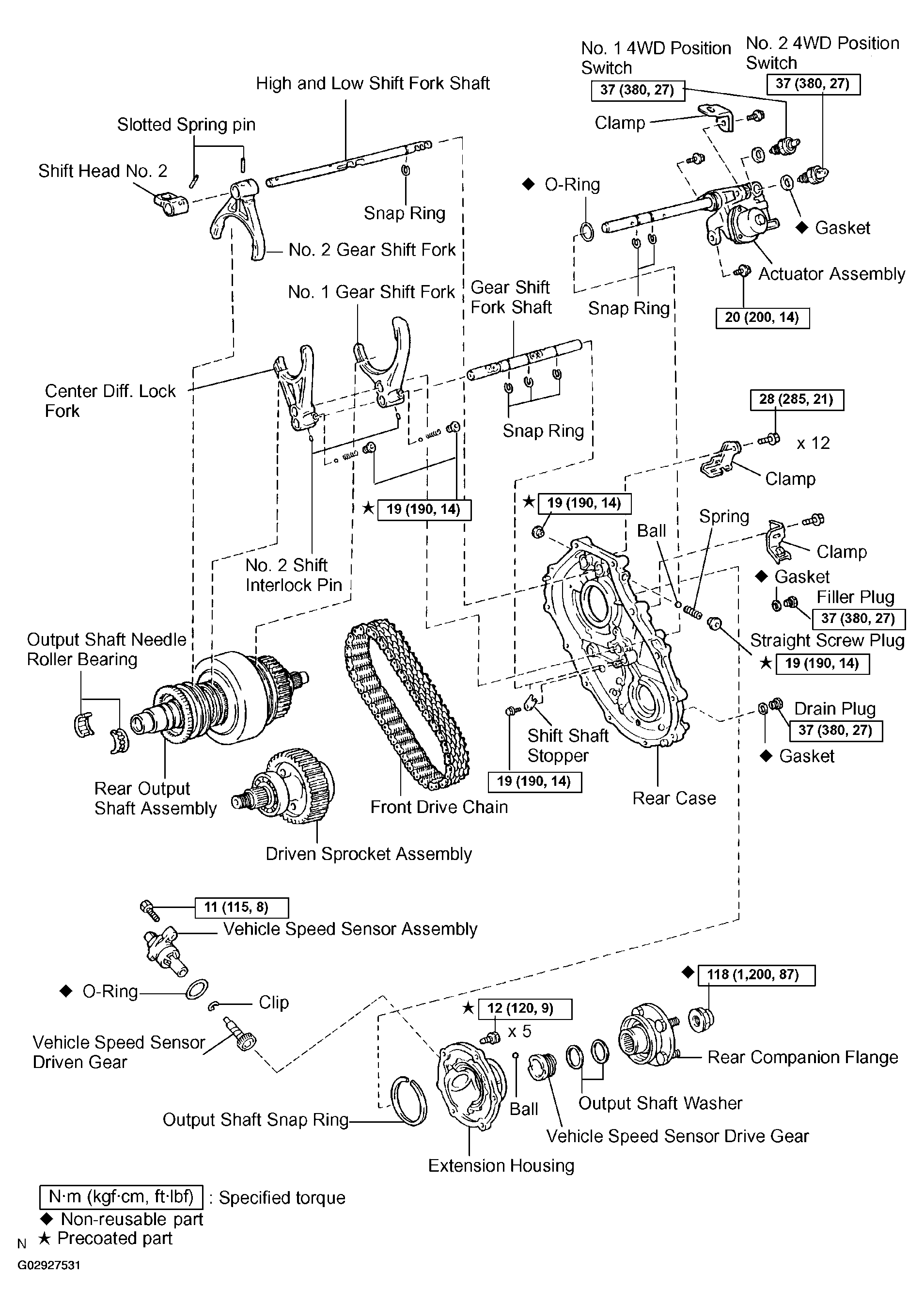

Fig 2: Identifying Transfer Assy Components (2 Of 2)
G02927531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
