Section 1 (Engine Unit (4WD)): Components

WARNING: This page is about a different variant/trim than selected.

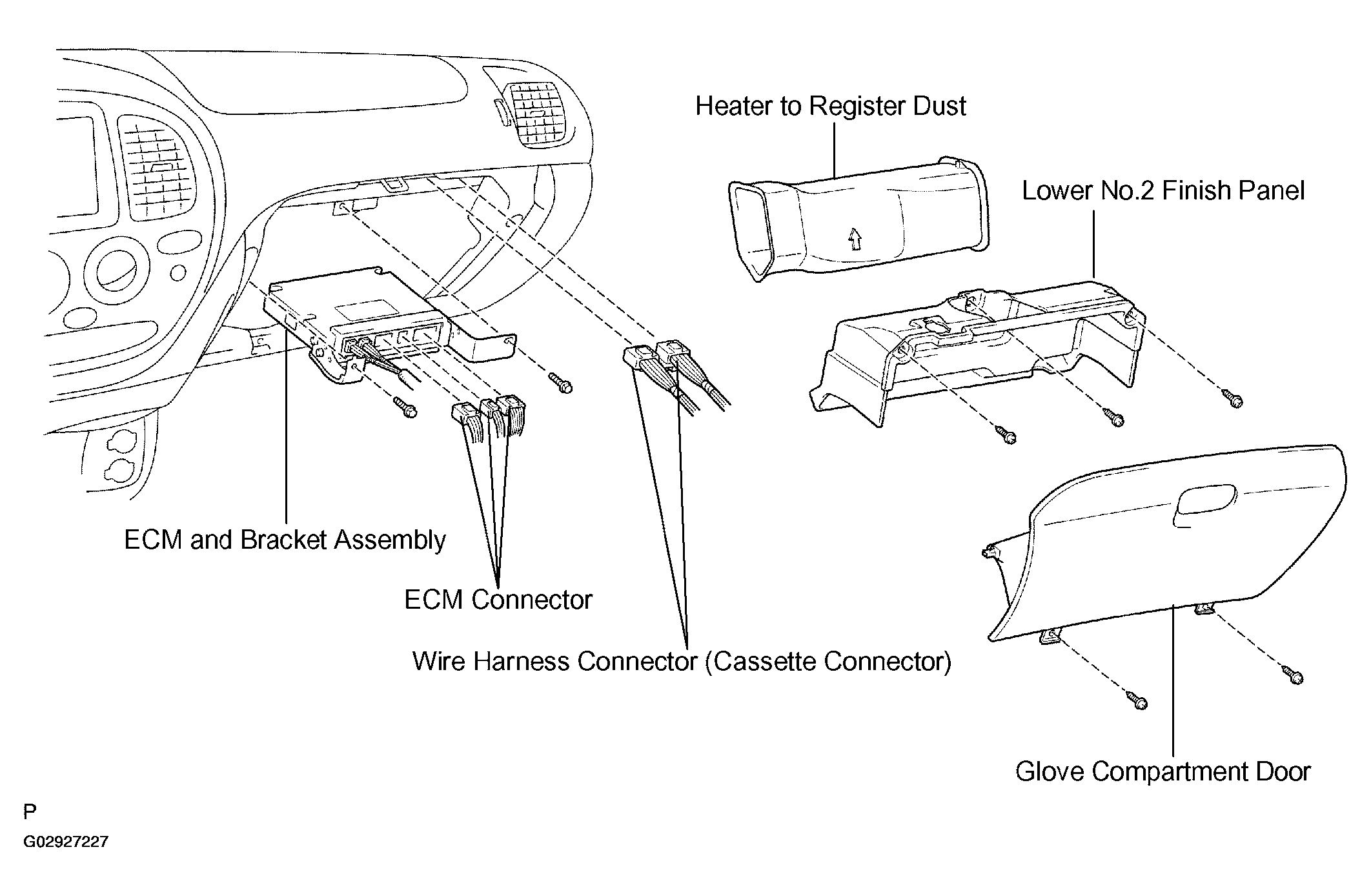

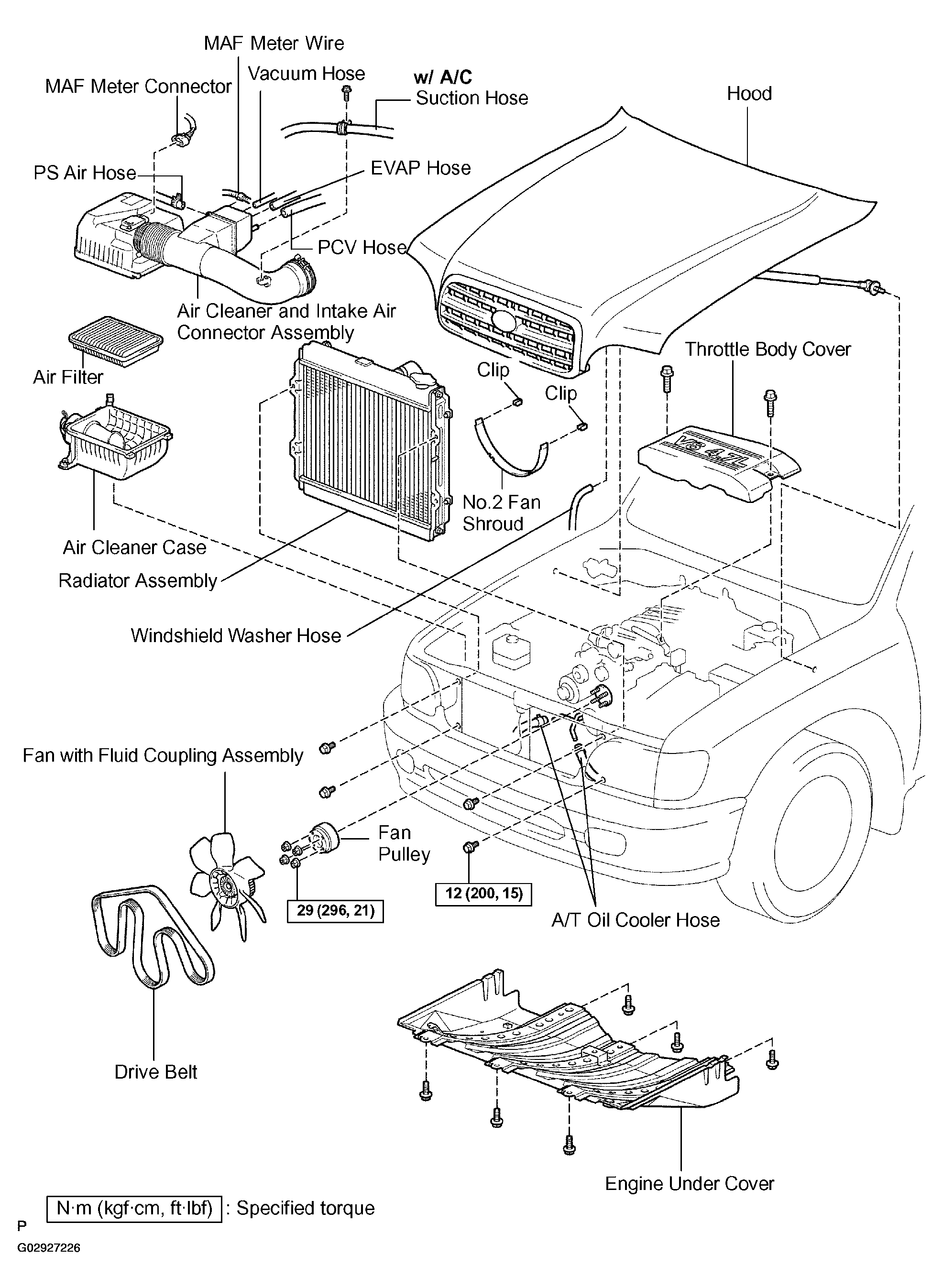

Fig 1: Removing/Installing Engine Unit Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

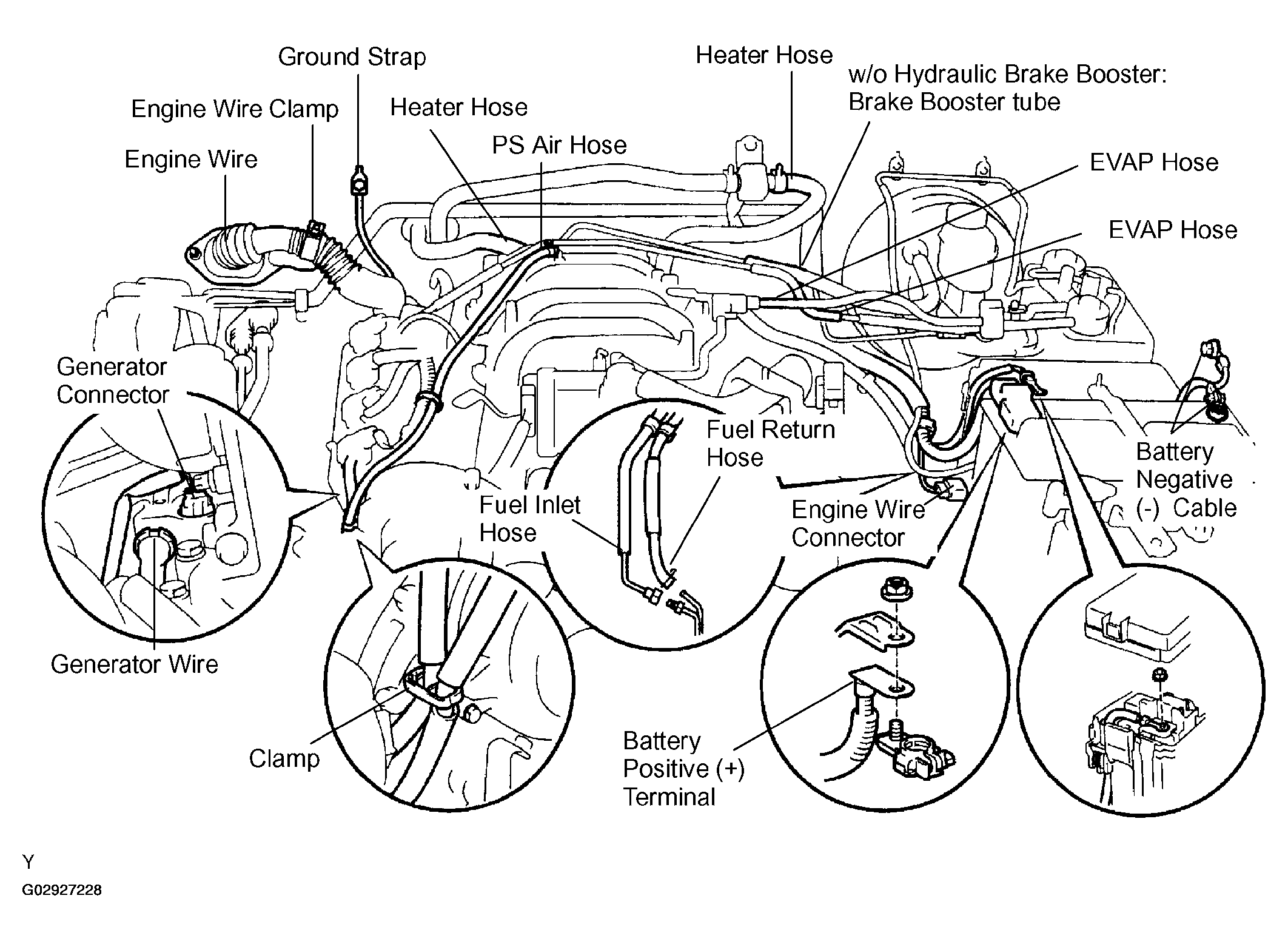

Fig 2: Removing/Installing Engine Unit Components (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

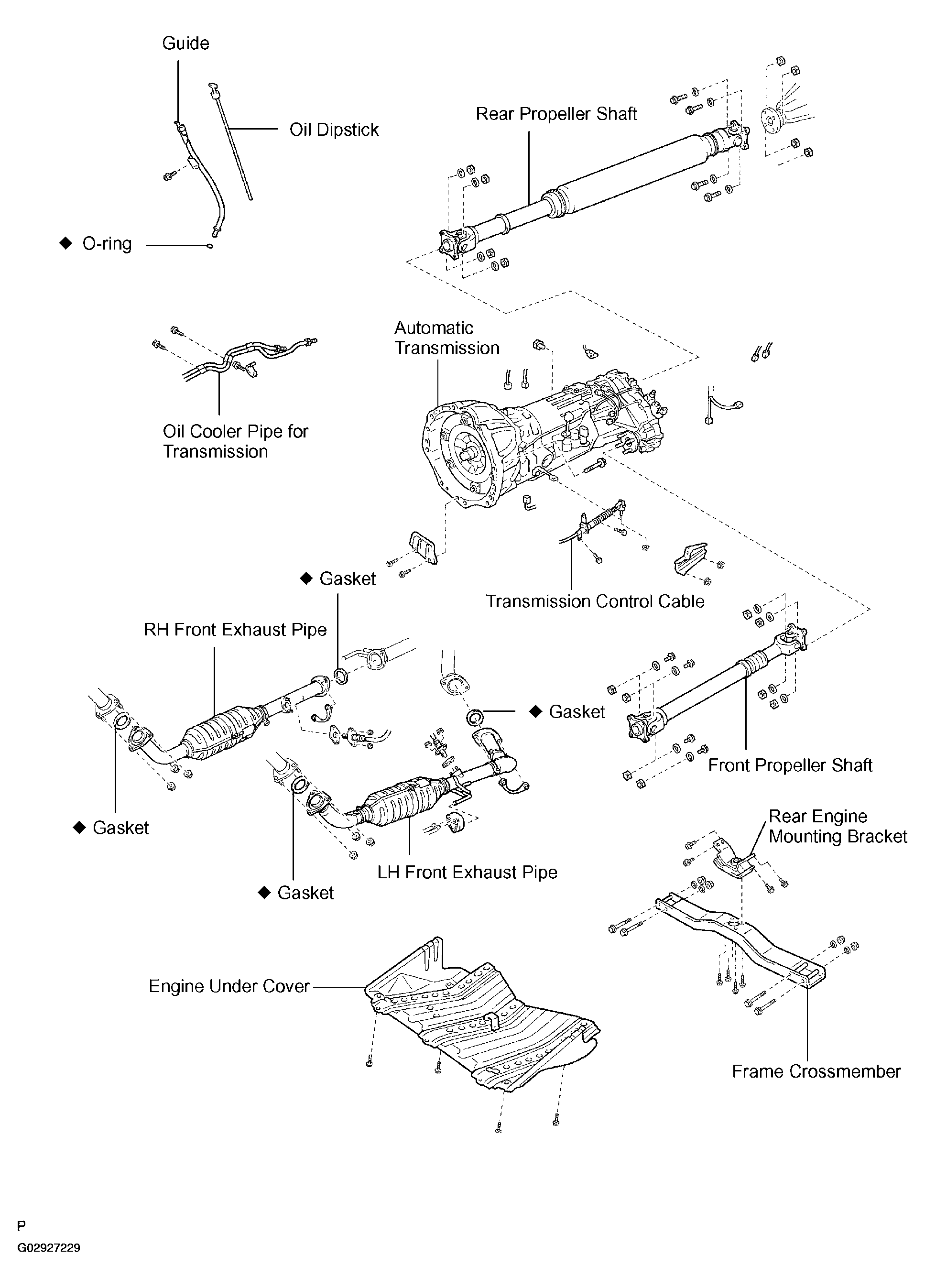

Fig 3: Removing/Installing Engine Unit Components (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

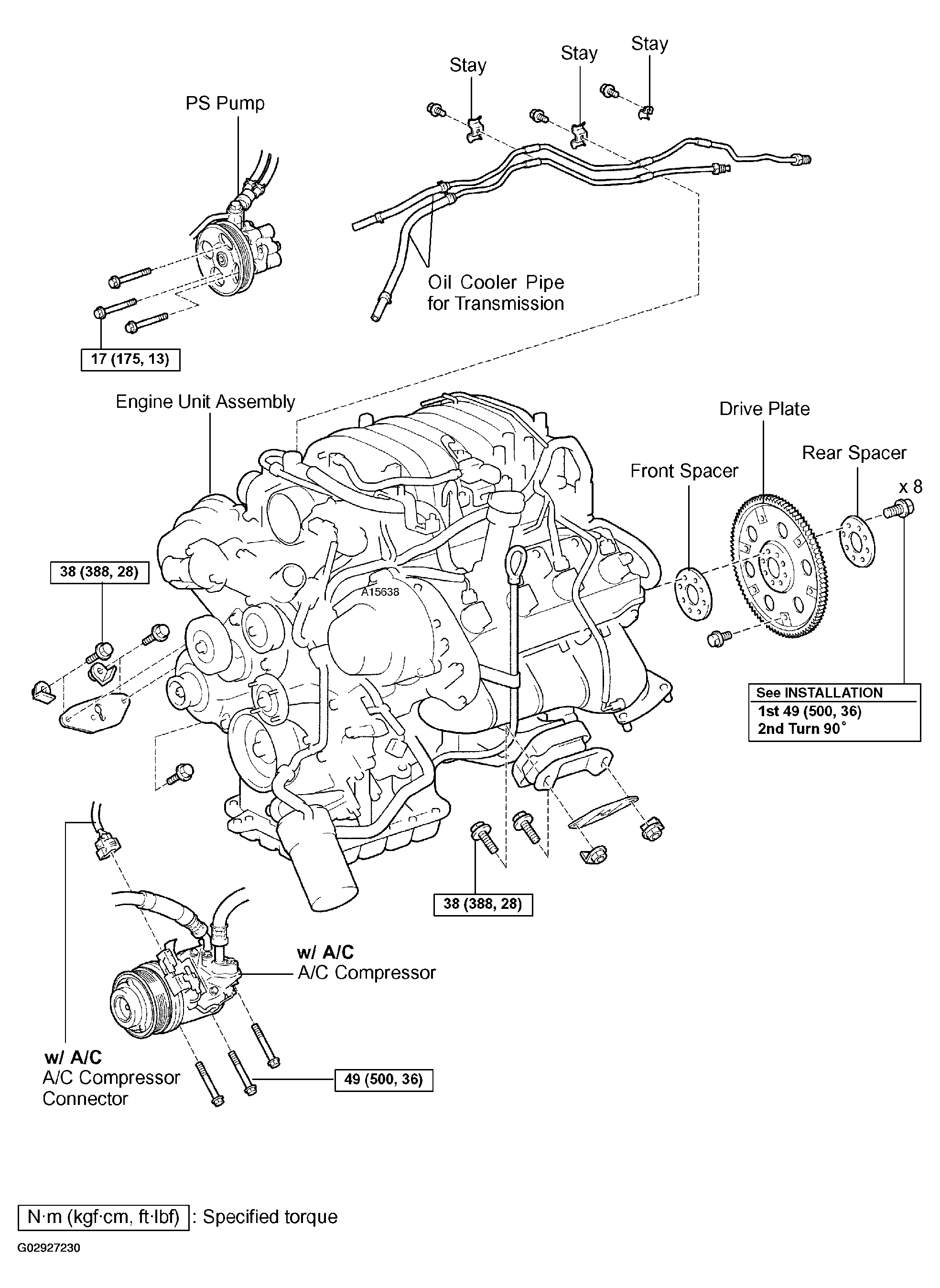

Fig 4: Removing/Installing Engine Unit Components (4 Of 5)

Fig 5: Removing/Installing Engine Unit Components (5 Of 5)
