Engine Oil Cooler Components: Components

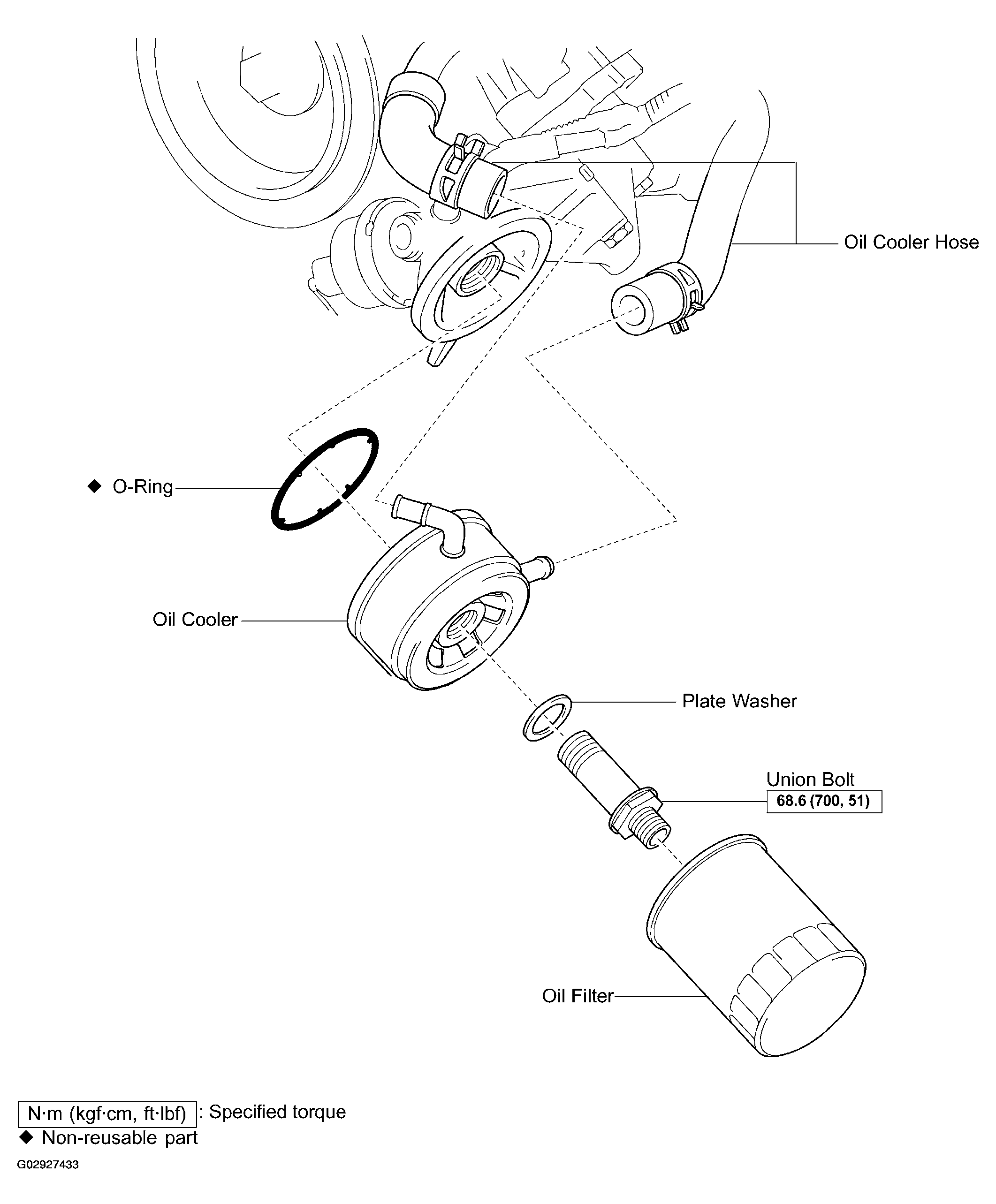

Fig 1: Exploded View Of Oil Cooler Components

G02927433

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
