Engine Oil And Filter Inspection: Replacement

CAUTION:

Prolonged and repeated contact with mineral oil will result in the removal of natural fats from the skin, leading to dryness, irritation and dramatist. In addition, used engine oil contains potentially harmful contaminants which may cause skin cancer.
Care should be taken, therefore, when changing engine oil to minimize the frequency and length of time your skin is exposed to used engine oil. Protective clothing and gloves that cannot be penetrated by oil should be worn. The skin should be thoroughly washed with soap and water, or use water-less hand cleaner, to remove any used engine oil. Do not use gasoline, thinner, or solvents.
In order to preserve the environment, used oil and used oil filters must be disposed of only at designated disposal sites.

w/ Oil filter change:
1. REMOVE ENGINE UNDER COVER
DRAIN ENGINE OIL
1. Remove the oil filler cap.
2. Remove the oil drain plug and gasket, and drain the oil into a container.

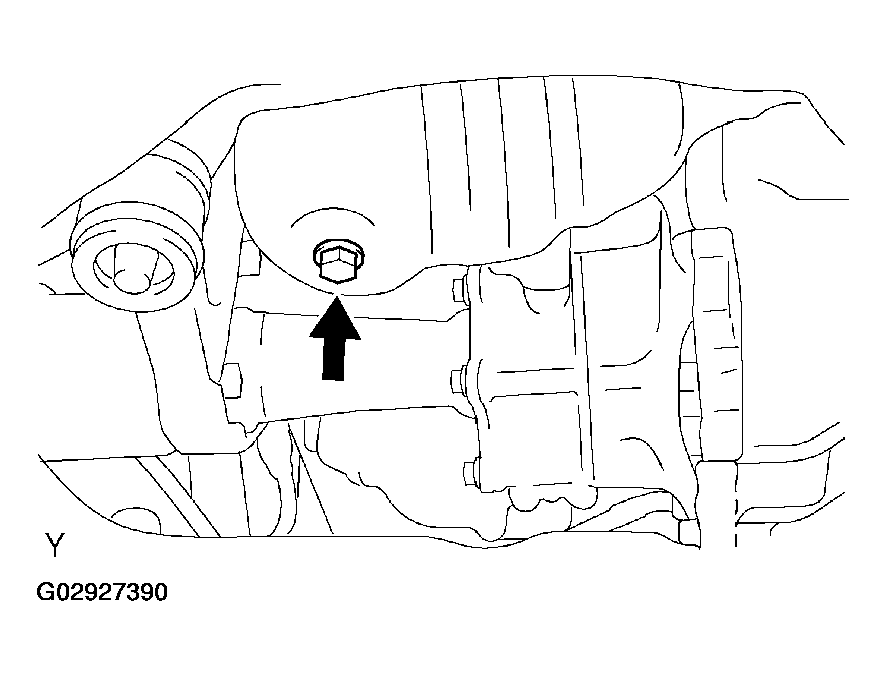

Fig 1: Locating Oil Drain Plug
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REPLACE OIL FILTER
1. Using SST, remove the oil filter.
  SST 09228-07501
2. Clean the oil filter contact surface on the oil filter mounting.
3. Lubricate the filter rubber gasket with clean engine oil.

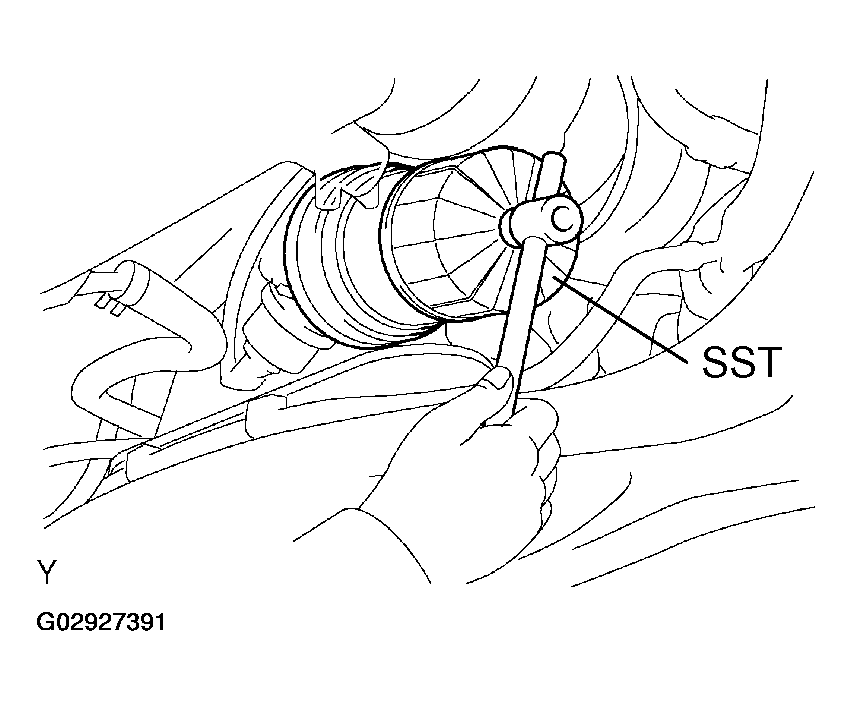

  Fig 2: Removing Oil Filter With SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Tighten the oil filter by hand until the rubber gasket contacts the seat of the filter mounting.

  Fig 3: Tightening Oil Filter By Hand
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Using SST, give it an additional 3/4 turn to seat the filter.
SST 09228-07501

REFILL WITH ENGINE OIL

Clean and install the oil drain plug with a new gasket.
Torque: 39 N.m (400 kgf.cm, 29 ft.lbf)

Fill with fresh engine oil.

CAPACITY

Drain and refill: w/ Oil filter change: w/o Oil filter change	6.2 liters (6.6 Us qts, 5.5 lmp. qts) 5.7 liters (6.0 Us qts, 5.0 lmp. qts)
Dry fill	7.1 liters (7.5 Us qts, 6.2 lmp. qts)

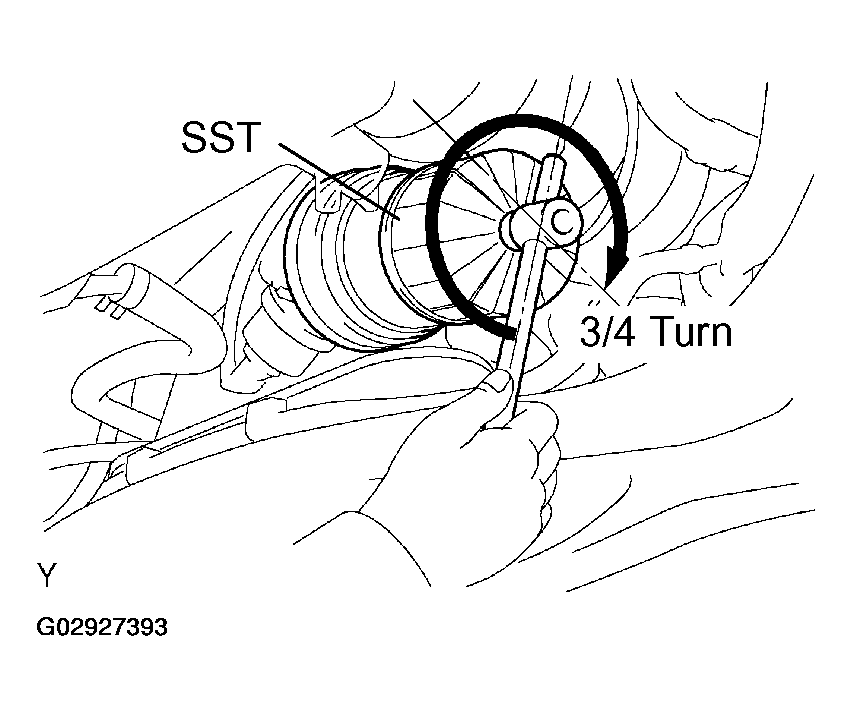

Fig 4: Tightening Additional 3/4 Turn By SST

Reinstall the oil filler cap.
NOTE: Install the oil filler cap facing the direction as shown in the illustration.

START ENGINE AND CHECK FOR ENGINE OIL LEAKS
RECHECK ENGINE OIL LEVEL
w/ Oil filter change:
1. REINSTALL ENGINE UNDER COVER

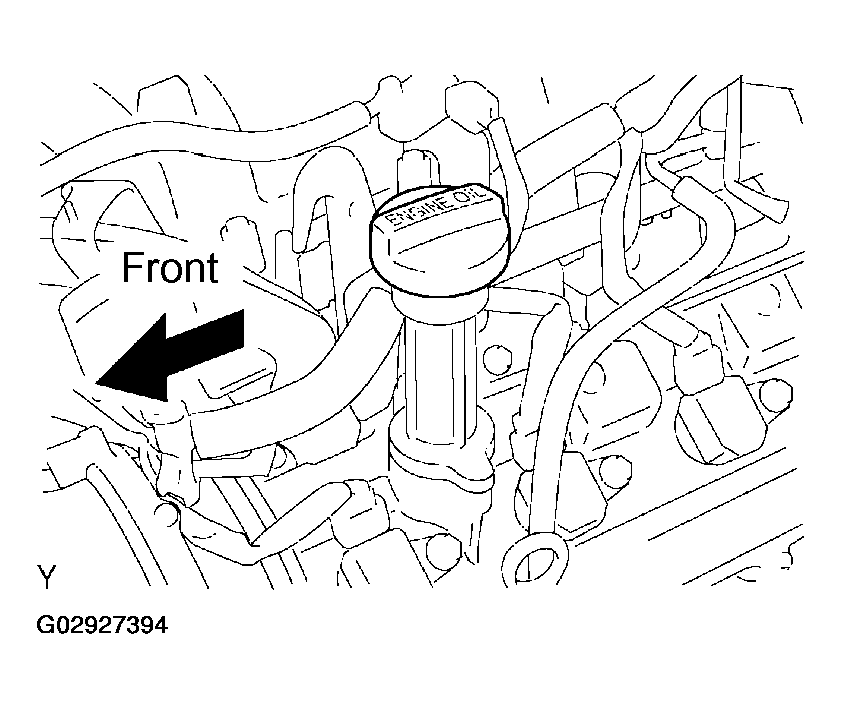

Fig 5: Locating Oil Filler Cap Direction
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
