Cooling System (Mechanical): Radiator: Installation

  1. INSTALL NO. 1 FAN SHROUD

    Install the No. 1 fan shroud with the 4 bolts.

    Torque: 5 N.m (50 kgf.cm, 44 in..lbf)

  2. INSTALL RADIATOR ASSEMBLY

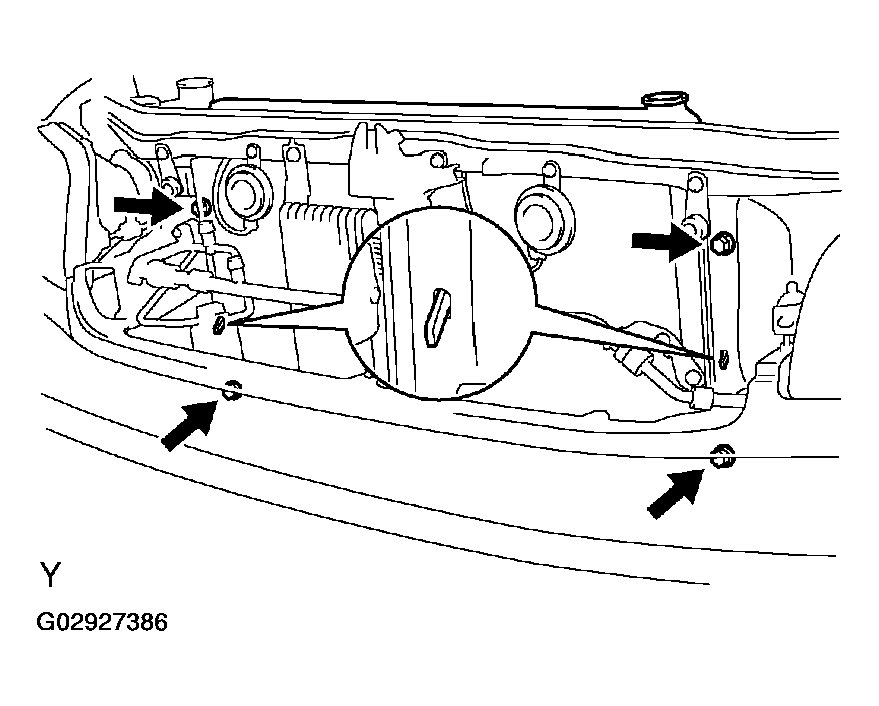

    Fig 1: Installing Radiator Assembly
    G02927386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Set the radiator bracket hooks to the radiator support holes.
    2. Install the 4 bolts.

    Torque: 12 N.m (120 N.m, 9 ft.lbf)

  3. INSTALL NO. 2 FAN SHROUD

    Install the No. 2 fan shroud with the 2 clips.

  4. CONNECT A/T OIL COOLER HOSES TO RADIATOR
  5. CONNECT UPPER RADIATOR HOSE TO RADIATOR
  6. CONNECT LOWER RADIATOR HOSE TO RADIATOR
  7. CONNECT RADIATOR RESERVOIR HOSE TO RADIATOR
  8. FILL WITH ENGINE COOLANT
  9. START ENGINE AND CHECK FOR ENGINE COOLANT LEAKS
  10. RECHECK ENGINE COOLANT LEVEL
  11. INSTALL ENGINE UNDER COVER
