Front Door: Disassembly
- REMOVE INSIDE HANDLE BEZEL
- Using a screwdriver, open the cover.NOTE: Tape the screwdriver tip before use.
- Remove the screw.
- Using a screwdriver, remove the inside handle bezel as shown in the illustration.
NOTE: Tape the screwdriver tip before use. - Using a screwdriver, open the cover.
- REMOVE COURTESY LIGHT
- REMOVE UPPER ARMREST BASE PANEL WITH POWER WINDOW SWITCH
- Using a screwdriver, remove the upper armrest base panel with power window switch.NOTE: Tape the screwdriver tip before use.
- Disconnect the connector.
- Remove the 3 screws and power window switch from the upper armrest base panel.
- Using a screwdriver, remove the upper armrest base panel with power window switch.
- REMOVE LOWER FRAME BRACKET GARNISH
Using a screwdriver, remove the lower frame bracket garnish.
NOTE: Tape the screwdriver tip before use. - REMOVE DOOR TRIM
- Using a screwdriver, remove the 2 caps.NOTE: Tape the screwdriver tip before use.

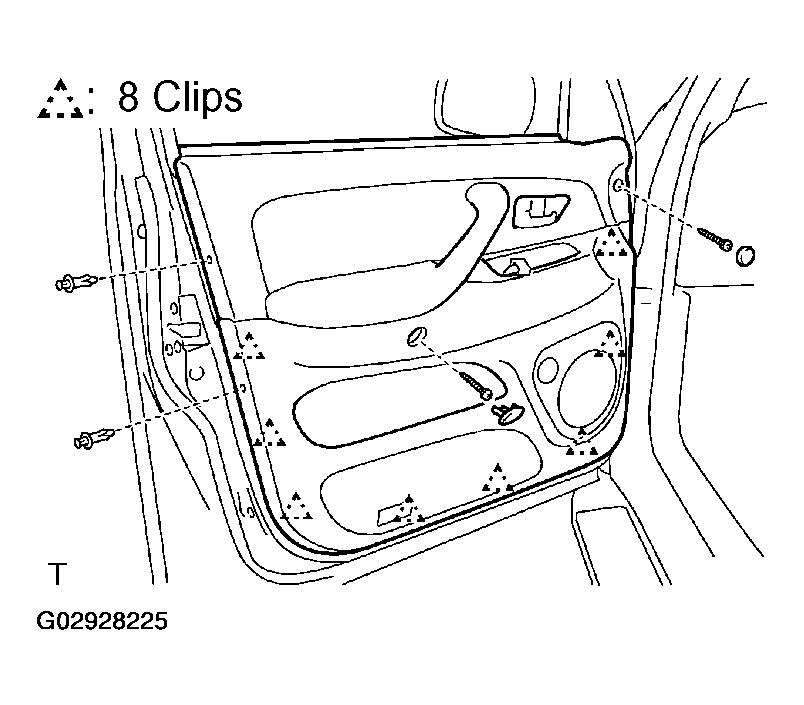

- Remove the 2 screws and 2 clips.
- Insert a screwdriver between the door trim and door panel to pry the door trim.NOTE: Tape the screwdriver tip before use.
- Pull the door trim upward to remove the door trim.
- Remove the inner weatherstrip from the door trim.
- Using a screwdriver, remove the 2 caps.
- REMOVE TWEETER SPEAKER
- REMOVE OUTSIDE REAR VIEW MIRROR
- Torque: 8.0 N.m (82 kgf°Cm, 71 in..lbf)
- REMOVE SPEAKER
- REMOVE INSIDE HANDLE
- Slide the inside handle backward to remove it.
- Disconnect the 2 cables from inside handle as shown in the illustration.
- REMOVE SERVICE HOLE COVER
- Using a clip remover, remove the clamp and grommets.
- Remove the service hole cover.
NOTE: Do not tear the cover.NOTE: At the time of reassembly, please refer to the following item. Bring out the 2 control cables and wire harness through the service hole cover. - REMOVE DOOR GLASS
- Open the door glass until the bolts appear in the service hole.
- Remove the 2 bolts.
- Torque: 8.0 N.m (82 kgf°Cm, 71 in..lbf)
NOTE: Be careful not to drop the door glass. - Pull the door glass upward to remove it.
- REMOVE DOOR GLASS RUN
- REMOVE UPPER WINDOW FRAME MOULDING

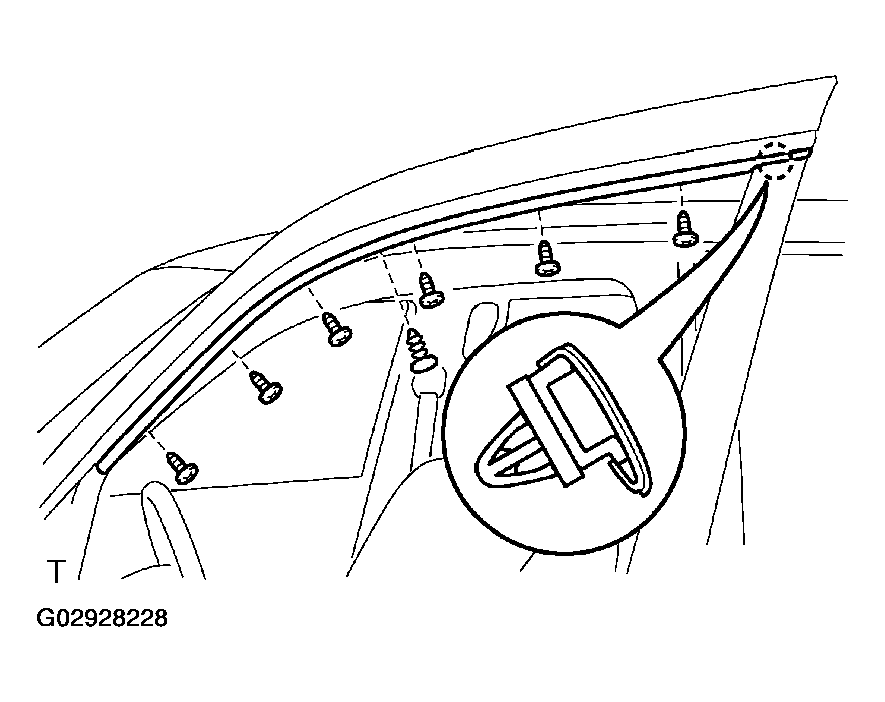

- Remove the 6 screws.
- Using a screwdriver or clip remover, remove the upper window frame moulding.
NOTE: Tape the screwdriver tip before use. - REMOVE DOOR BELT MOULDING
- Apply protective tape to the outer surface as shown in the illustration, to keep the surface from being scratched.
- Using a moulding remover, remove the door belt moulding.

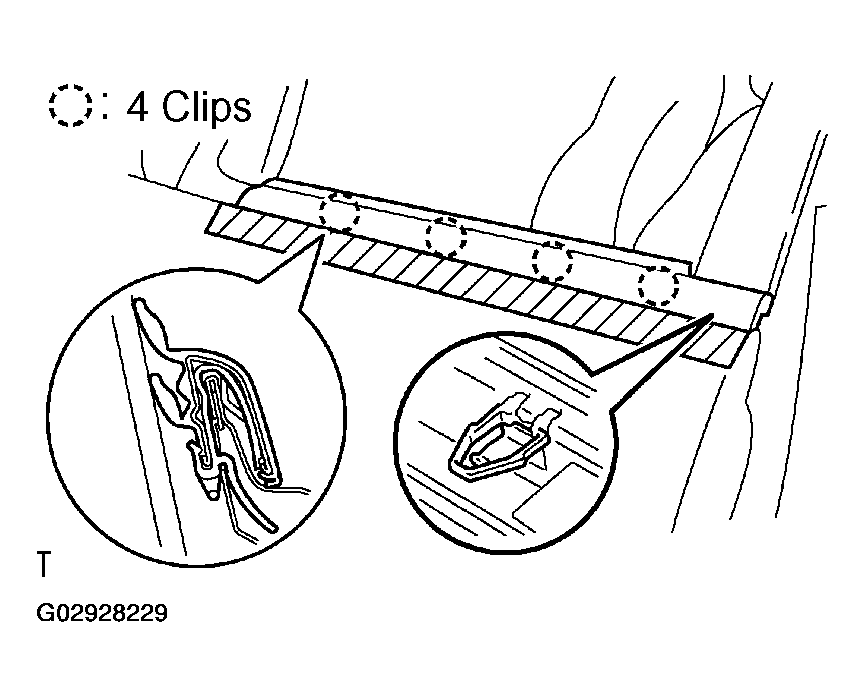

- REMOVE FRONT LOWER FRAME
- Remove the 2 bolts, nut and front lower frame as shown in the illustration.
- Remove the No. 2 glass run from the front lower frame.
NOTE: At the time of reassembly, please refer to the following item. Install the No. 2 glass run to the front lower frame as shown in the illustration. - REMOVE REAR LOWER FRAME

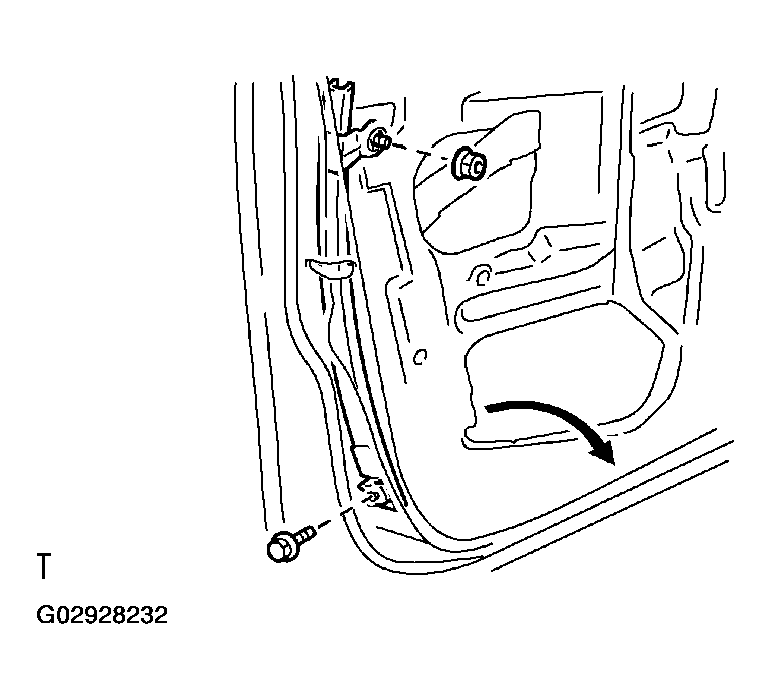

Remove the bolt, nut and rear lower frame as shown in the illustration.

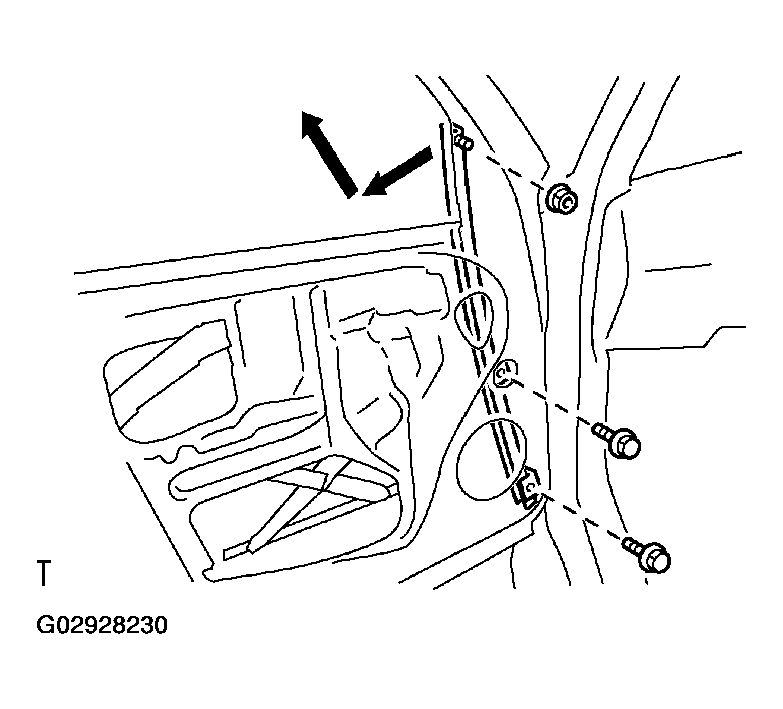

NOTE: Remove the rear lower frame through the service hole. - REMOVE WINDOW REGULATOR ASSEMBLY
- Disconnect the connector.

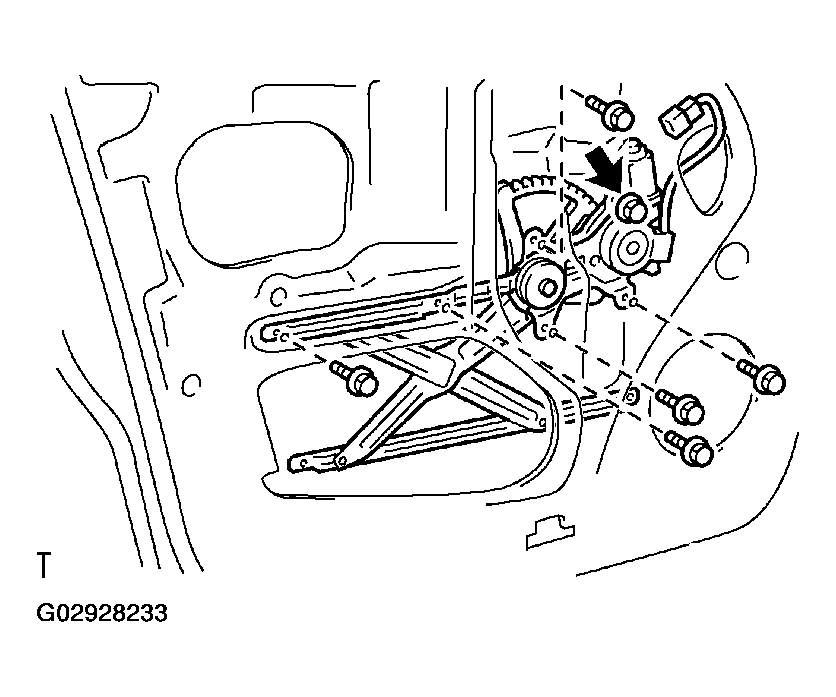

- Remove the 5 bolts.
- Torque: 8.0 N.m (82 kgf°Cm, 71 in..lbf)
- Loosen the bolt, then remove the window regulator assembly.
- Torque: 8.0 N.m (82 kgf°Cm, 71 in..lbf)
NOTE: Remove the window regulator assembly through the service hole. - Remove the 3 screws and window regulator motor from the window regulator sub-assembly.

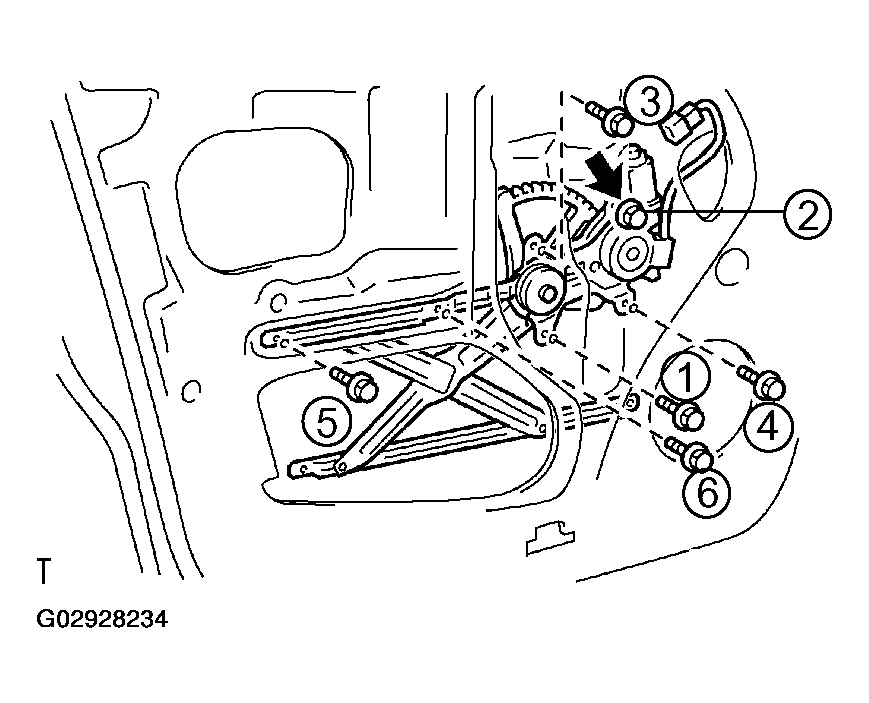

NOTE: At the time of reassembly, please refer to the following items.- Tighten the bolts in the order shown in the illustration.
- Apply MP grease to the window regulator assembly.
NOTE: At the time of reassembly, please refer to the following item.Do not apply grease to the spring of the window regulator assembly.
- REMOVE DOOR LOCK
- Disengage the 2 control cables from the clamp.
- Remove the clamp.

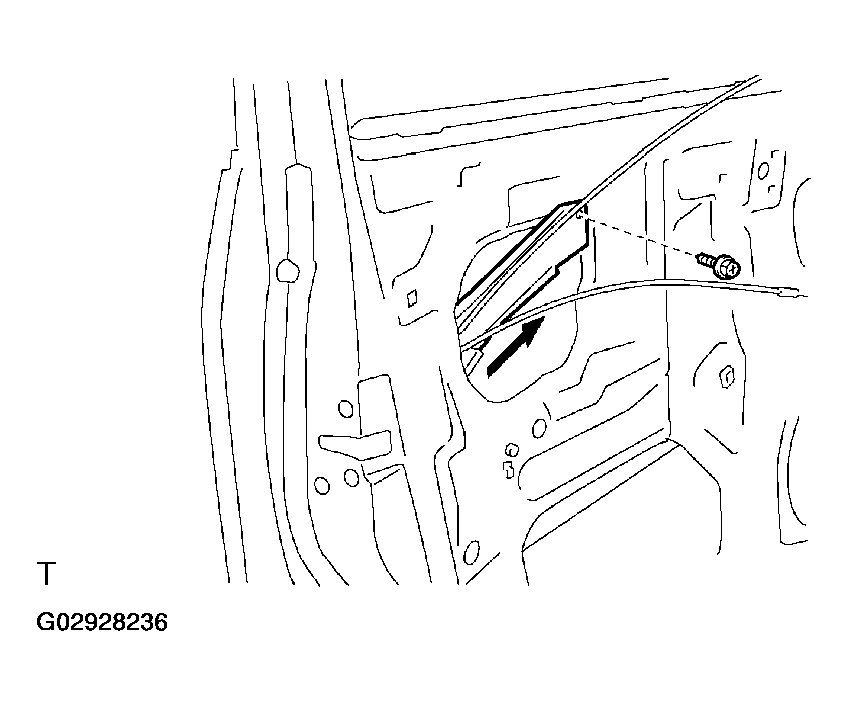

- Remove the screw and cable protector.
- Disconnect the 2 control links from the outside handle and lock cylinder.
- Disconnect the connector.

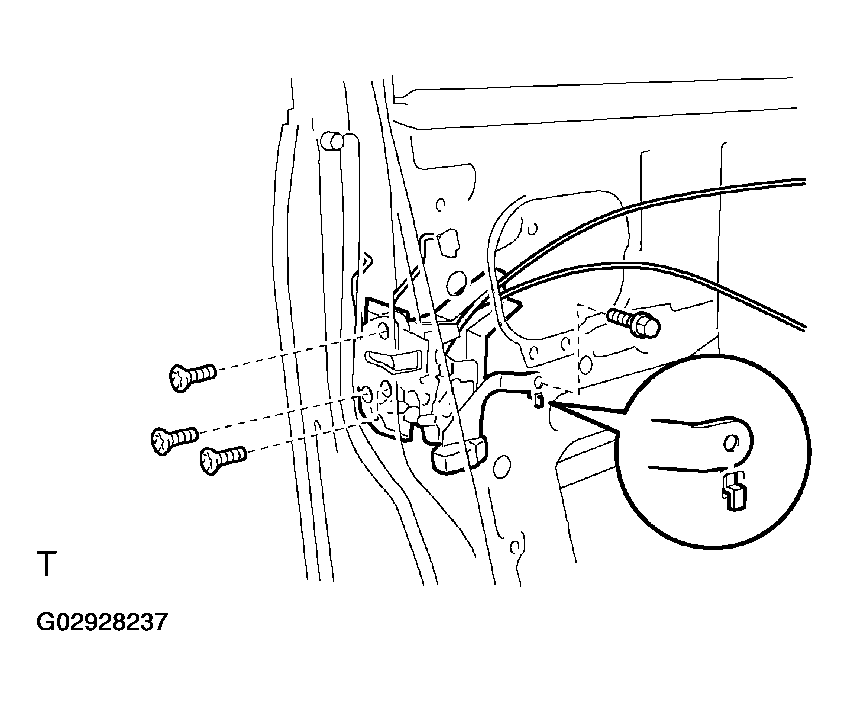

- Remove the bolt, 3 screws and door lock.NOTE: Remove the door lock through the service hole.
- Torque:
- Bolt: 5.0 N.m (51 kgf°Cm, 44 in..lbf)
- Screw: 5.0 N.m (51 kgf°Cm, 44 in..lbf)
NOTE:- At the time of reassembly, please refer to the following items.
- Apply adhesive to 3 screws.
- Part No. 08833-00070, THREE BOND 1324 or equivalent.
- Install the door lock as shown in the illustration.
- Remove the 2 screws and door lock outer cover from the door lock.
NOTE: At the time of reassembly, please refer to the following item.Apply MP grease to the sliding and rotating parts of the door lock.
- REMOVE OUTSIDE HANDLE WITH LOCK CYLINDER
- Remove the service hole plug.
- Remove the 2 bolts and outside handle with lock cylinder.
- Torque: 5.5 N.m (56 kgf°Cm, 49 in..lbf)
- Remove the bolt and lock cylinder from the outside handle.
- Torque: 5.5 N.m (56 kgf°Cm, 49 in..lbf)
- REMOVE FRONT DOOR WEATHERSTRIP
Using a clip remover, remove the front door weatherstrip.
- REMOVE NO. 2 FRONT DOOR WEATHERSTRIP
