Home >> Toyota >> 2004 >> Sequoia Limited, RWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Front Door >> Components

Front Door: Components

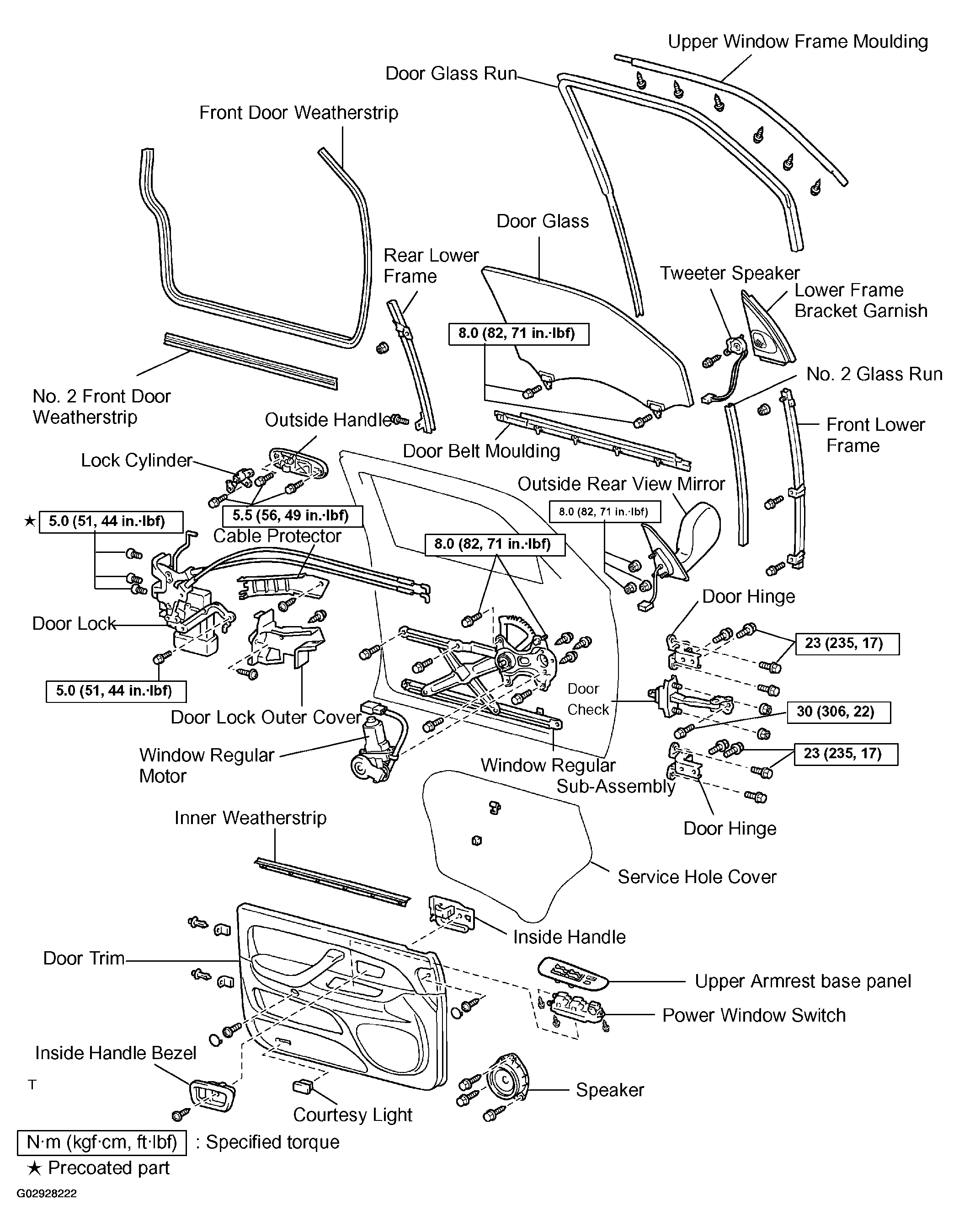

Fig 1: Locating Front Door Components

G02928222

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
