Wireless Door Lock Control System: Pre-Check

Only wireless function (Remote control) will not operate.

(If a new transmitter or a transmitter of the same type that works properly with the vehicle is not available.)

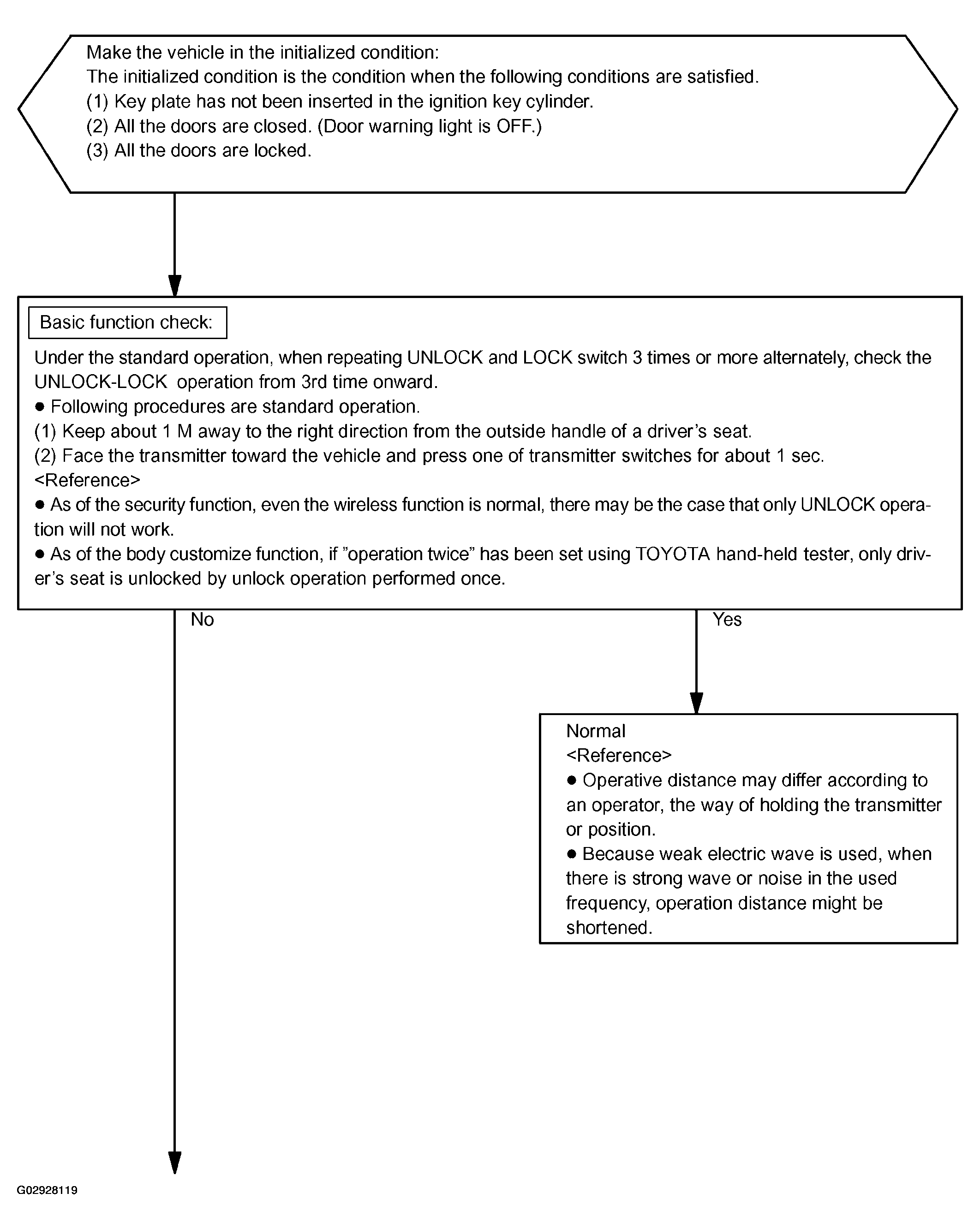

Fig 1: Wireless Door Lock Control System - Checking, Procedure (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

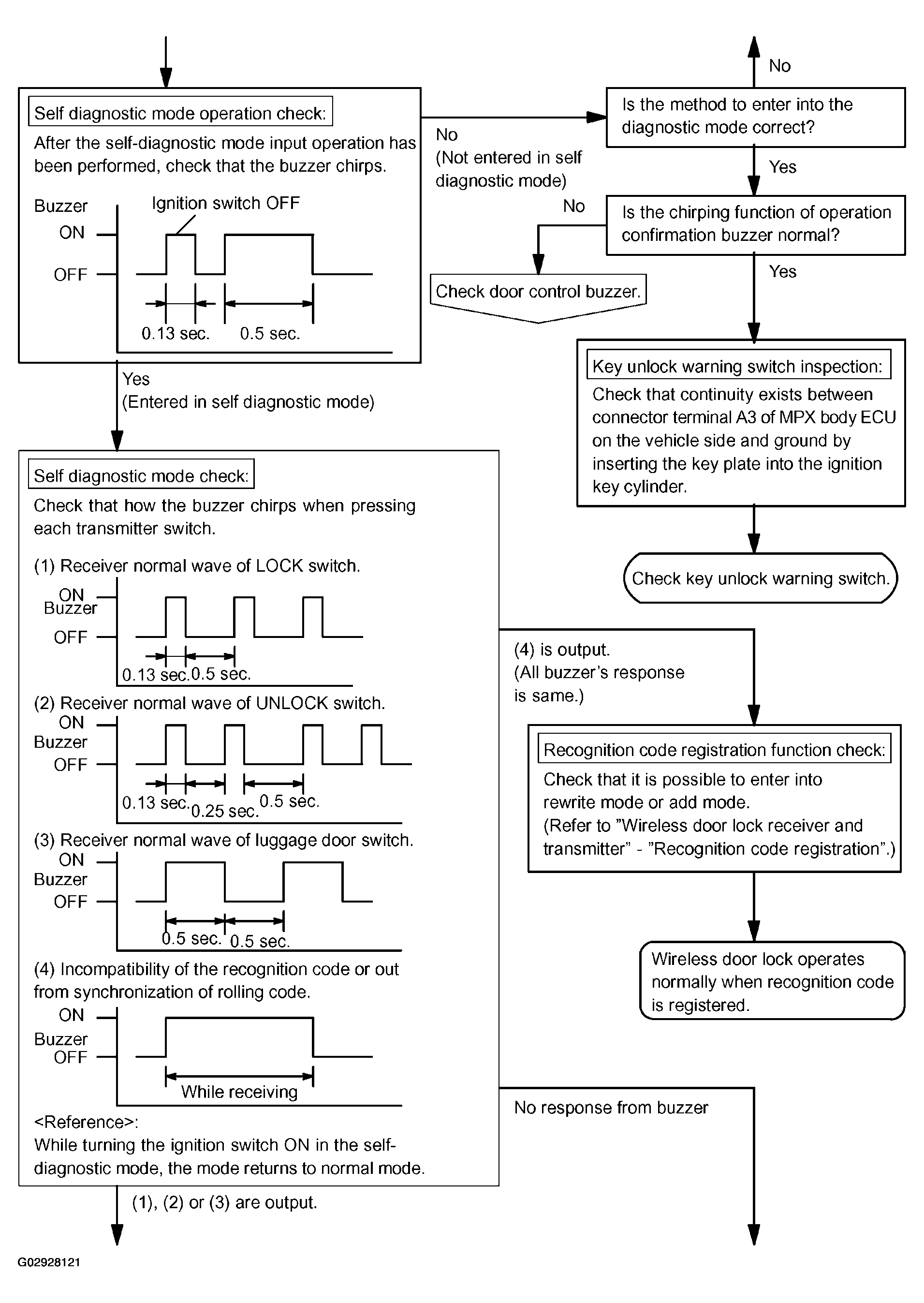

Fig 2: Wireless Door Lock Control System - Checking Procedure (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

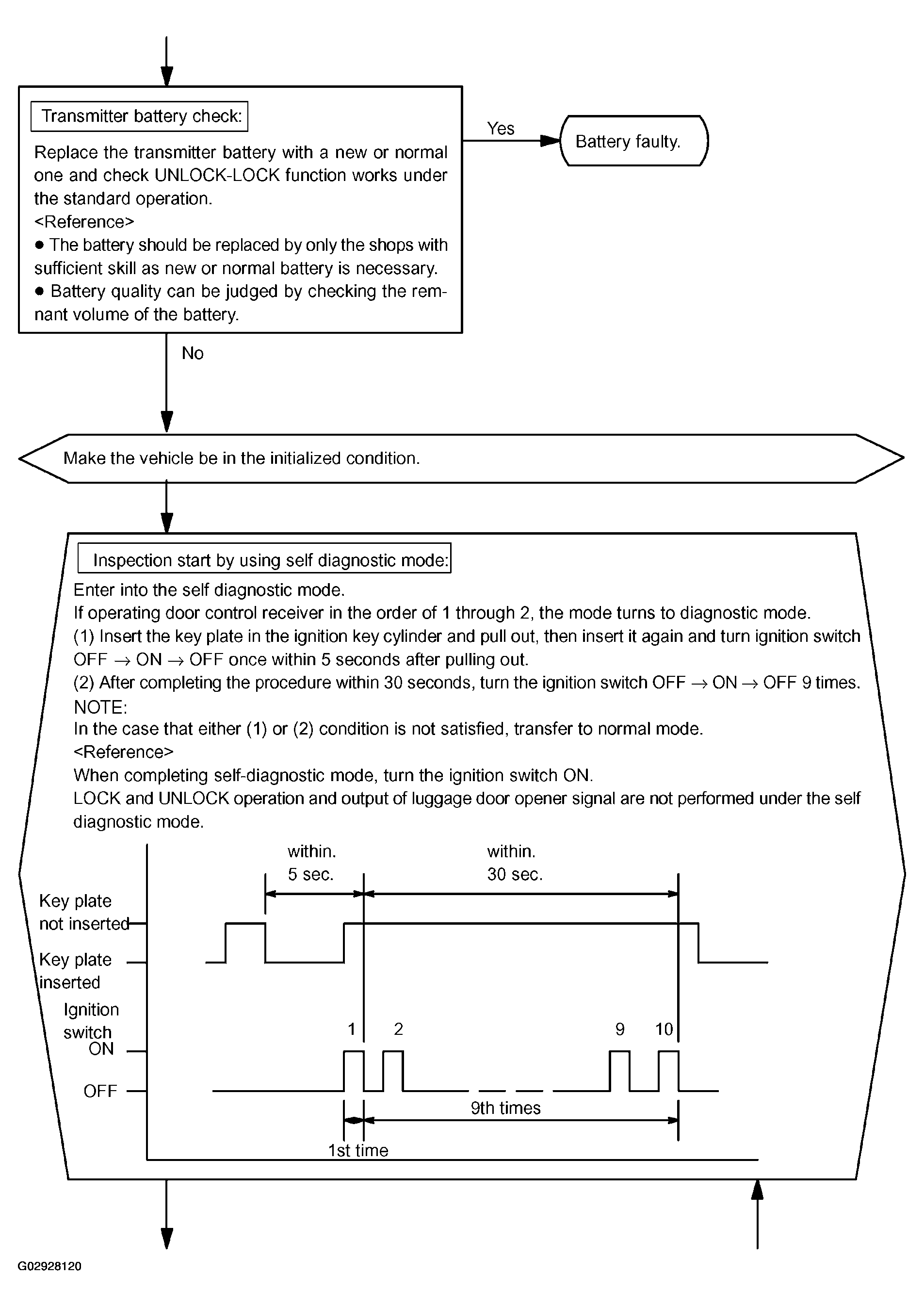

Fig 3: Wireless Door Lock Control System - Checking Procedure (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

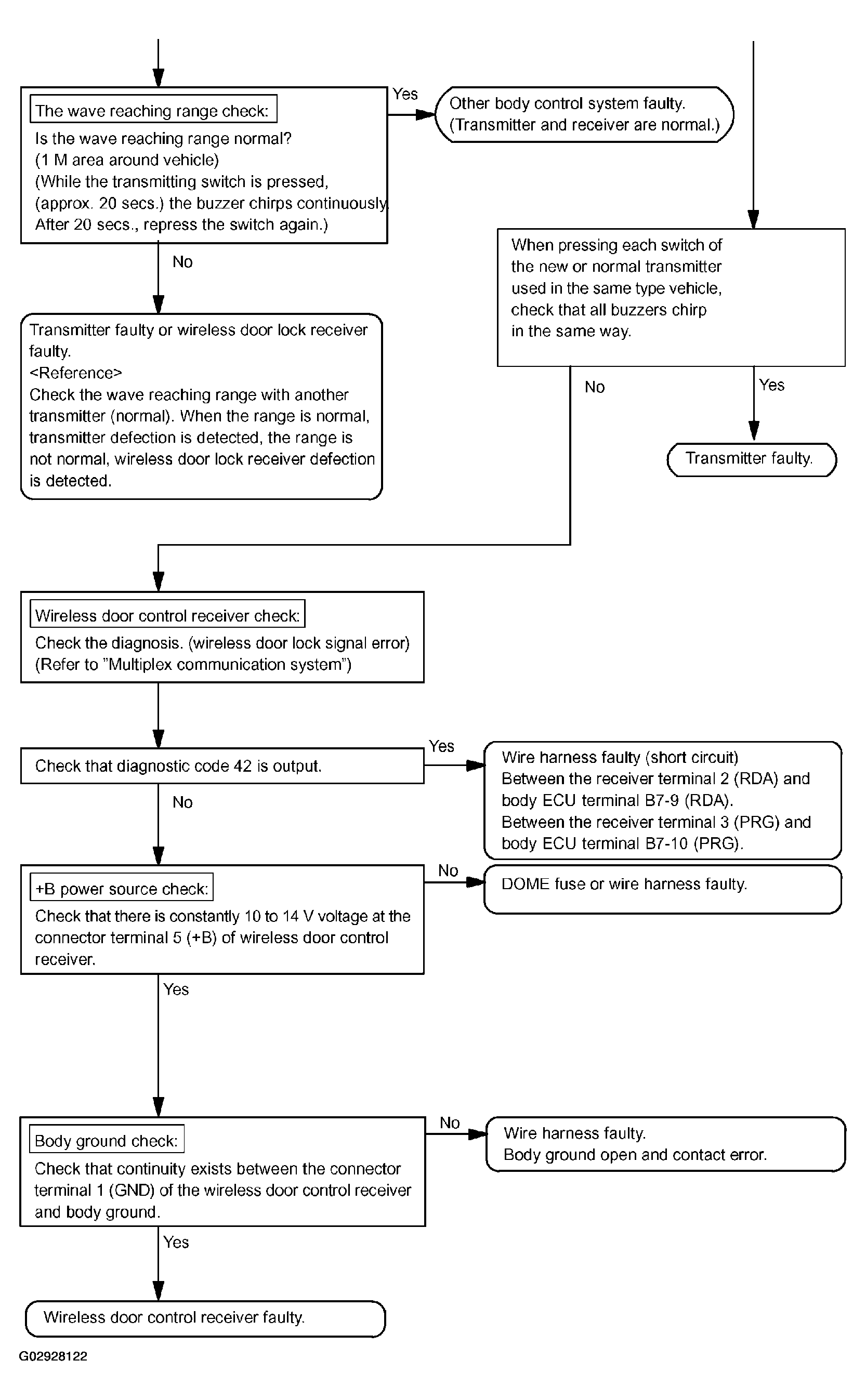

Fig 4: Wireless Door Lock Control System - Checking Procedure (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
