Power Door Lock Control System: Inspection

  1. INSPECT DRIVER DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY
    TESTER CONNECTION SPECIFIED CONDITION

    Switch Position Tester Connection Specified Condition
    LOCK 3 - 5 Continuity
    OFF - No Continuity
    UNLOCK 3 - 6 Continuity

    If continuity is not as specified, replace the door lock motor.

    Fig 1: Inspecting Driver Door Key Lock And Unlock Switch Continuity
    G02928100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT PASSENGER'S DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY
    TESTER CONNECTION SPECIFIED CONDITION

    Switch Position Tester Connection Specified Condition
    LOCK 2 - 4 Continuity
    OFF - No Continuity
    UNLOCK 1 - 4 Continuity

    If continuity is not as specified, replace the door lock motor.

    Fig 2: Inspecting Passengers Door Key Lock And Unlock Switch Continuity
    G02928101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSPECT DRIVER'S DOOR UNLOCK DETECTION SWITCH CONTINUITY
    TESTER CONNECTION SPECIFIED CONDITION

    Switch Position Tester Connection Specified Condition
    OFF (Door Lock Set To LOCK) - No Continuity
    ON (Door Lock Set To UNLOCK) 3 - 4 Continuity

    If continuity is not as specified, replace the door lock motor.

    Fig 3: Inspecting Drive's Door Unlock Detection Switch Continuity
    G02928102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSPECT PASSENGER'S DOOR UNLOCK DETECTION SWITCH CONTINUITY
    TESTER CONNECTION SPECIFIED CONDITION

    Switch Position Tester Connection Specified Condition
    OFF (Door Lock Set To LOCK) - No Continuity
    ON (Door Lock Set To UNLOCK) 3 - 4 Continuity

    If continuity is not as specified, replace the door lock motor.

    Fig 4: Inspecting Passenger's Door Unlock Detection Continuity
    G02928103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSPECT REAR DOOR UNLOCK DETECTION SWITCH CONTINUITY
    TESTER CONNECTION SPECIFIED CONDITION

    Switch Position Tester Connection Specified Condition
    OFF (Door Lock Set To LOCK) - No Continuity
    ON (Door Lock Set To UNLOCK) 3 - 4 (Left side) Continuity
    ON (Door Lock Set To UNLOCK) 1 - 2 (Right Side) Continuity

    If continuity is not as specified, replace the door lock motor.

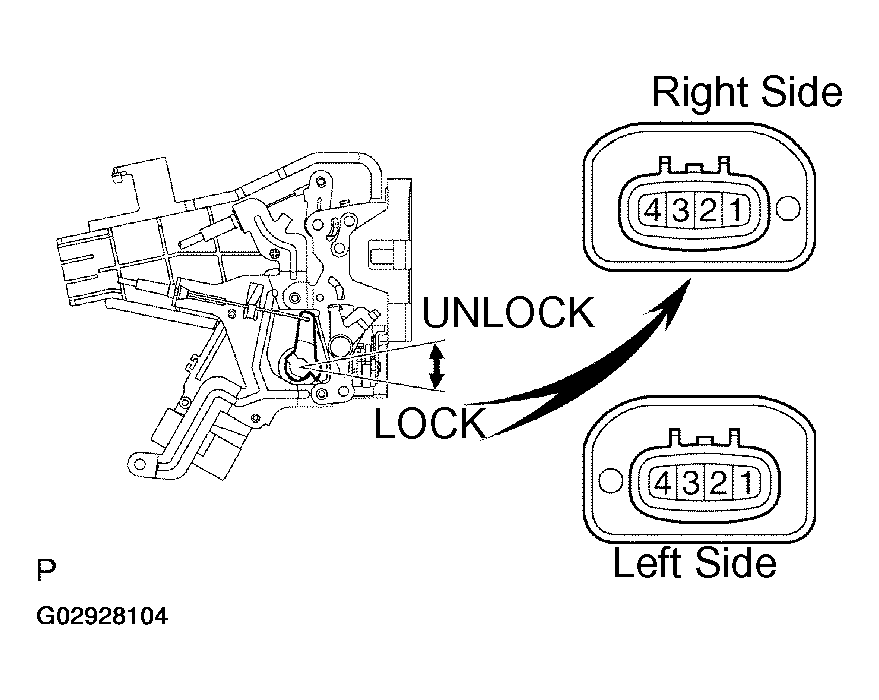

    Fig 5: Inspecting Rear Door Unlock Detection Switch Continuity
    G02928104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSPECT DRIVER'S DOOR LOCK MOTOR OPERATION
    1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the door lock cable moves to UNLOCK position.
    2. Reverse the polarity and check that the door lock cable moves to LOCK position.

    If operation is not as specified, replace the door lock motor.

    Fig 6: Inspecting Driver's Door Lock Motor Connector Terminals
    G02928105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSPECT PASSENGER'S DOOR LOCK MOTOR OPERATION
    1. Connect the positive (+) lead from the battery to terminal 5 and the negative (-) lead to terminal 6, and check that the door lock cable moves to UNLOCK position.
    2. Reverse the polarity and check that the door lock cable moves to LOCK position.

    If operation is not as specified, replace the door lock motor.

    Fig 7: Inspecting Passenger's Door Lock Motor Connector Terminals
    G02928106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSPECT REAR LEFT SIDE DOOR LOCK MOTOR OPERATION
    1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the door lock cable moves to UNLOCK position.
    2. Reverse the polarity and check that the door lock cable moves to LOCK position.

    If operation is not as specified, replace the door lock motor.

  9. INSPECT REAR RIGHT SIDE DOOR LOCK MOTOR OPERATION
    Fig 8: Inspecting Rear Left Side Door Lock Motor Connector Terminals
    G02928107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 4, and check that the door lock cable moves to UNLOCK position.
    2. Reverse the polarity and check that the door lock cable moves to LOCK position.

    If operation is not as specified, replace the door lock motor.

    Fig 9: Inspecting Rear Right Side Door Lock Motor Connector Terminals
    G02928108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSPECT BACK DOOR LOCK MOTOR OPERATION
    1. Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 4, and check that the door lock cable moves to UNLOCK position.
    2. Reverse the polarity and check that the door lock cable moves to LOCK position.

    If operation is not as specified, replace the door lock motor.

    Fig 10: Inspecting Back Door Lock Motor Connector Terminals
    G02928109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSPECT BACK DOOR UNLOCK DETECTION SWITCH CONTINUITY
    TESTER CONNECTION SPECIFIED CONDITION

    Switch Position Tester Connection Specified Condition
    OFF (Door Lock Set To LOCK) - No Continuity
    ON (Door Lock Set To UNLOCK) 1 - 2 Continuity

    If continuity is not as specified, replace the back door lock motor.

    Fig 11: Inspecting Back Door Unlock Detection Switch Connector Terminals Continuity
    G02928110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSPECT BACK DOOR KEY LOCK AND UNLOCK CONTROL SWITCH CONTINUITY
    TESTER CONNECTION SPECIFIED CONDITION

    Switch Position Tester Connection Specified Condition
    LOCK 1 - 3 Continuity
    OFF - No Continuity
    UNLOCK 2 - 3 Continuity

    If continuity is not as specified, replace the switch.

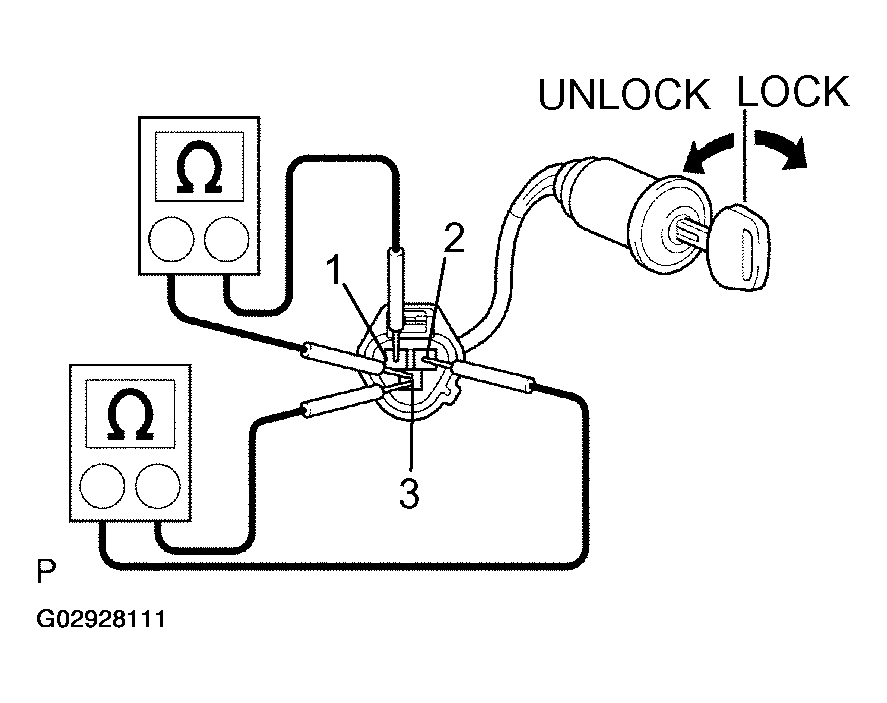

    Fig 12: Inspecting Back Door Key Lock And Unlock Switch Connector Terminals Continuity
    G02928111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
