Automatic Transmission System (Operation): Operation

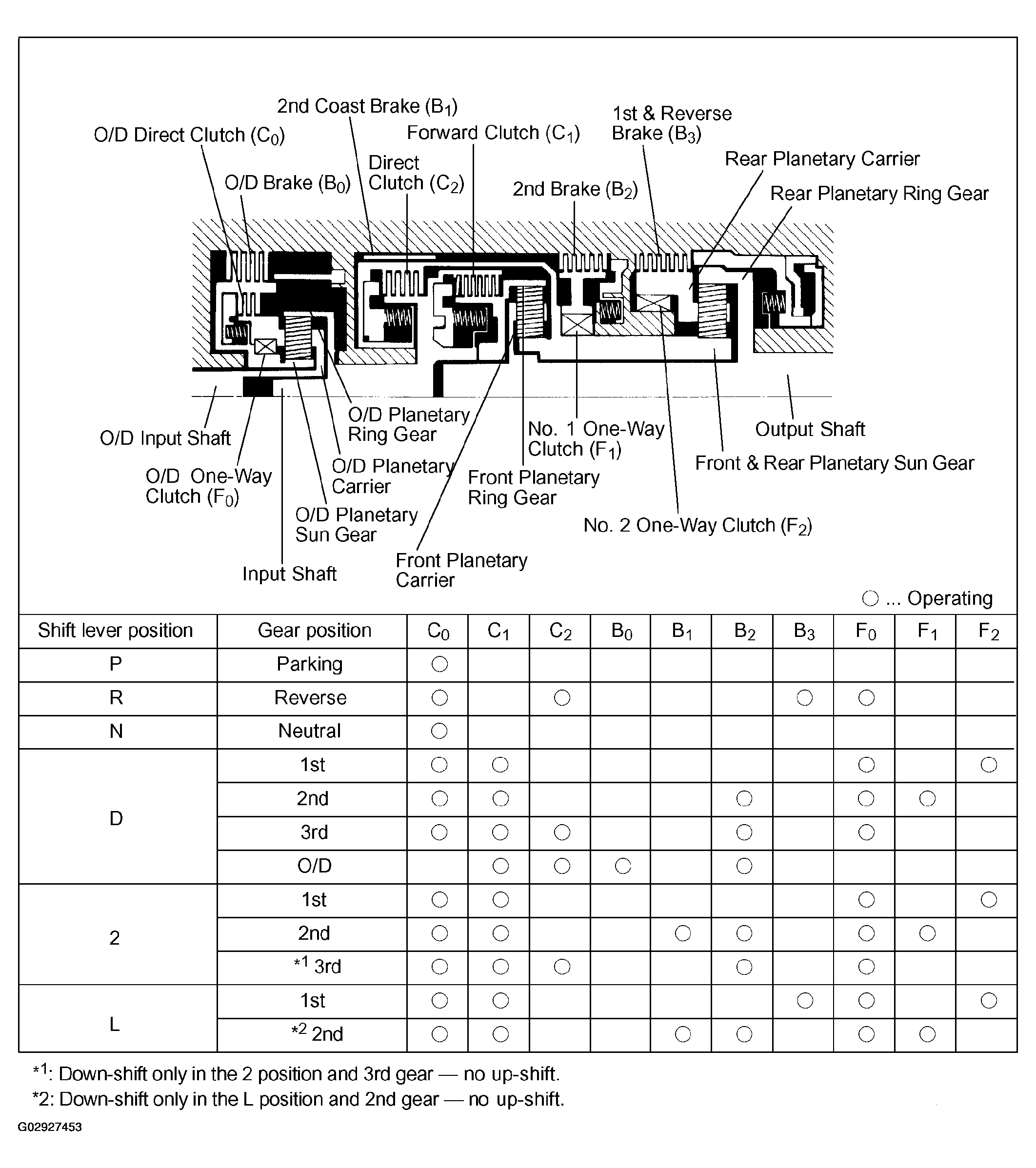

Fig 1: Identifying Band/Clutch/Brake Application Operation

G02927453

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
