Engine Oil And Filter Inspection: Inspection

  1. CHECK ENGINE OIL QUALITY

    Check the oil for deterioration, entry of water, discoloring or thinning.

    If the quality is visibly poor, replace the oil.

    Oil grade:

    API grade SL Energy-Conserving or ILSAC multigrade engine oil.

  2. CHECK ENGINE OIL LEVEL

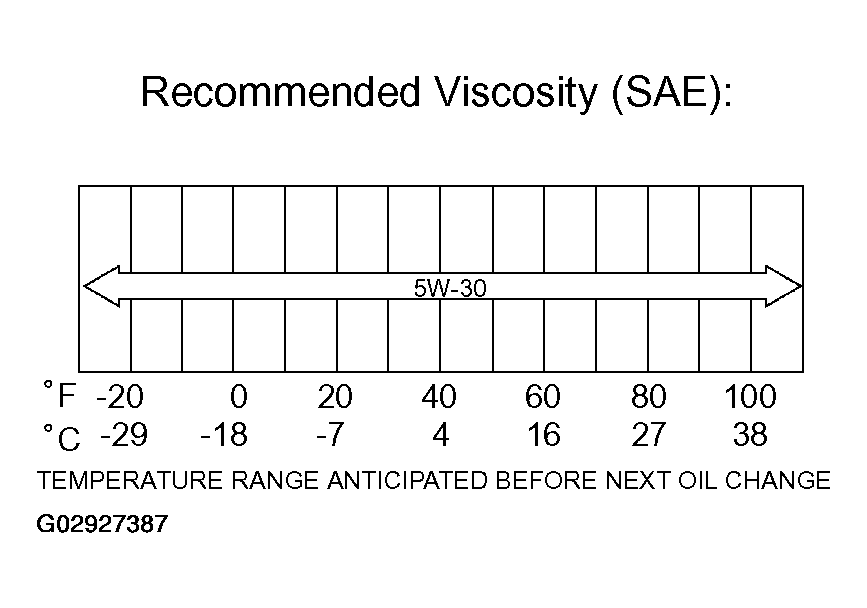

    Fig 1: Identifying Recommended Oil Viscosity
    G02927387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    The oil level should be between the "L" and "F" marks on the dipstick.

    If low, check for leakage and add oil up to the "F" mark.

    NOTE: Do not fill with engine oil above the "F" mark.
  3. REMOVE ENGINE UNDER COVER

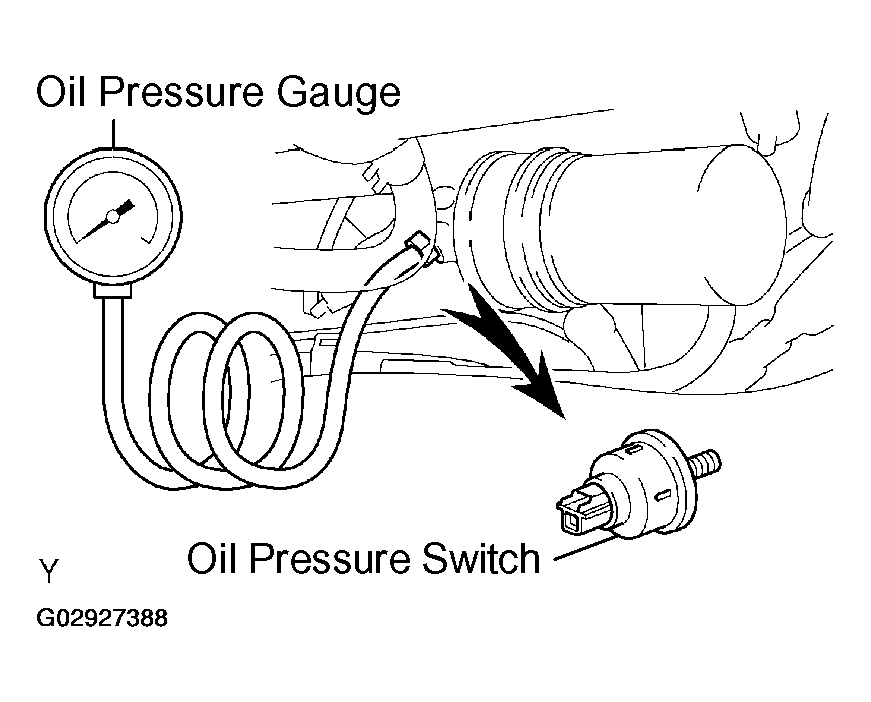

    Fig 2: Removing Oil Pressure Switch
    G02927388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE OIL PRESSURE SWITCH
  5. INSTALL OIL PRESSURE GAUGE
  6. WARM UP ENGINE

    Allow the engine to warm up to normal operating temperature.

  7. CHECK OIL PRESSURE

    Oil pressure:

    OIL PRESSURE

    At idle 29 kPa (0.3 kgf/cm2 , 4.2 psi) or more
    At 3,003 rpm 294 - 588 kPa (3.0 - 6.0 kgf/cm2 , 43 - 85 psi)
  8. REMOVE OIL PRESSURE GAUGE
  9. REINSTALL OIL PRESSURE SWITCH
    1. Apply adhesive to 2 or 3 threads of the oil pressure switch.

      Adhesive:

      Part No. 08833-00480, THREE BOND 1344, LOCTITE 242 or equivalent

    2. Reinstall the oil pressure switch.
  10. START ENGINE, AND CHECK FOR ENGINE OIL LEAKS
  11. REINSTALL ENGINE UNDER COVER

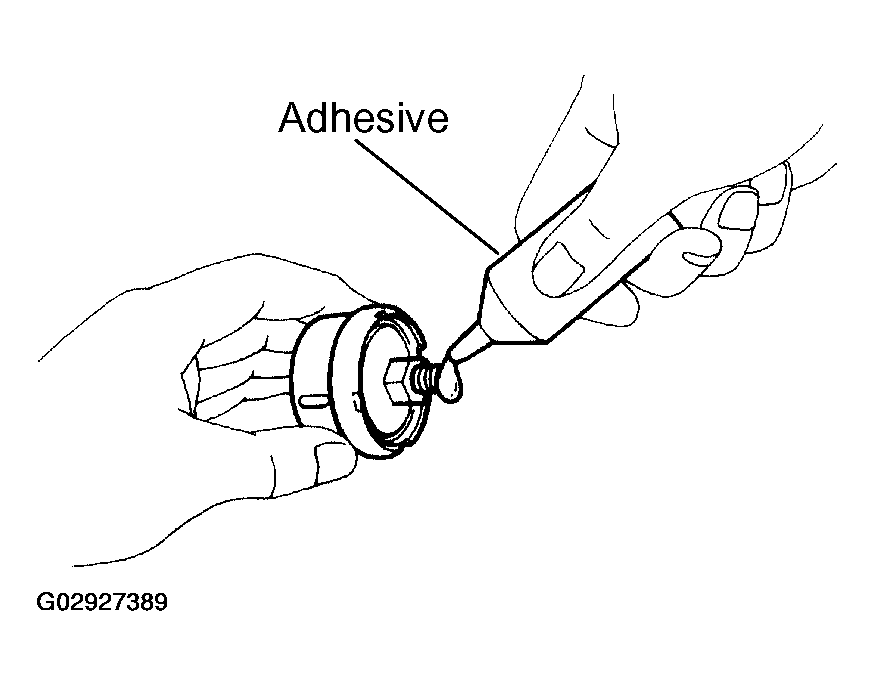

Fig 3: Applying Adhesive To Threads Of Oil Pressure Switch
G02927389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
