Automatic Disconnecting Differential Control System: Location

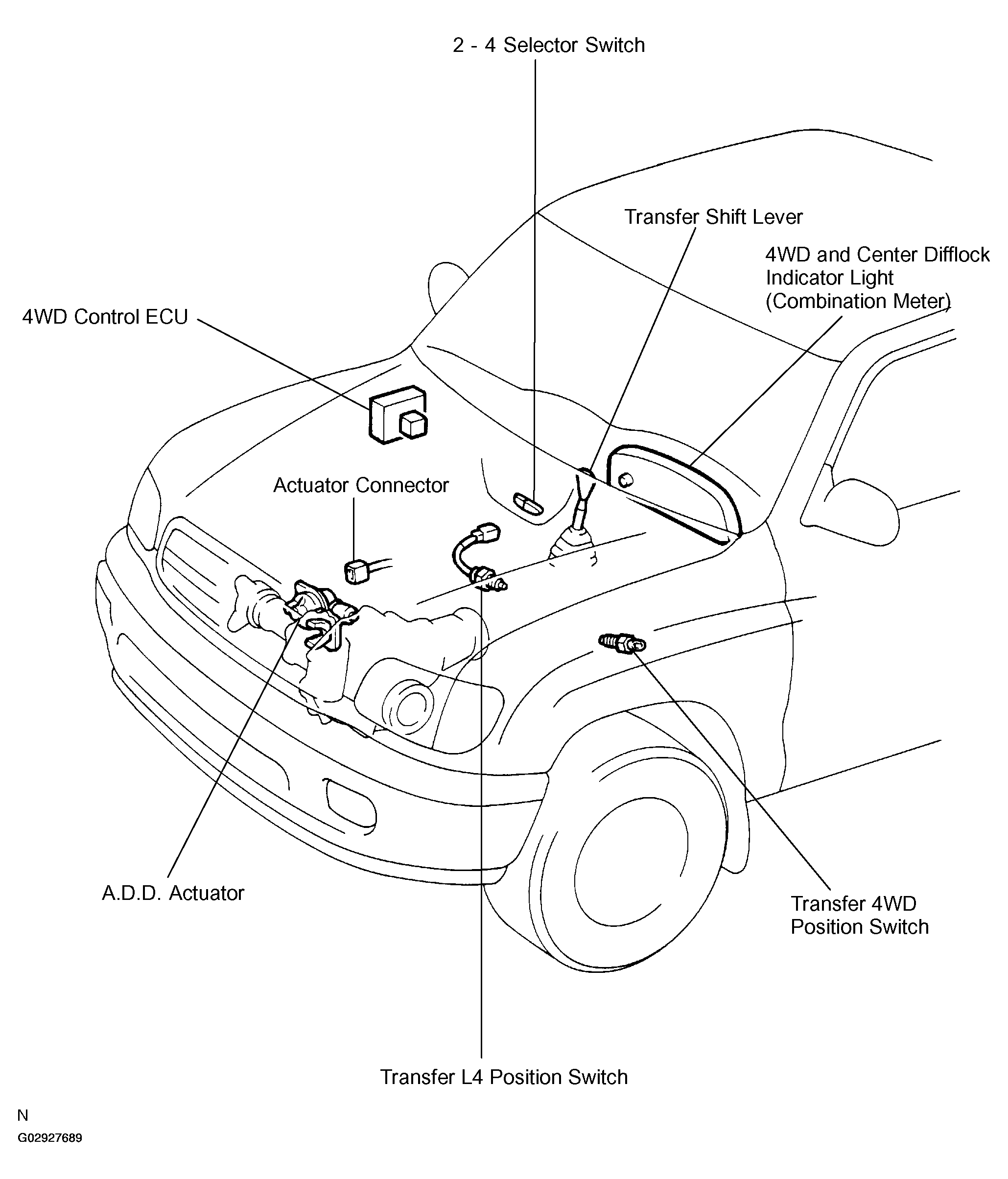

Fig 1: Identifying ADD Control System Components

G02927689

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
