Rear Brake Speed Sensor: Removal

  1. DISCONNECT SPEED SENSOR CONNECTOR
  2. REMOVE SPEED SENSOR
    1. Remove the 6 resin clips holding the sensor wire harness.
    2. Remove the bolt and speed sensor from the axle carrier.
      1. Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)

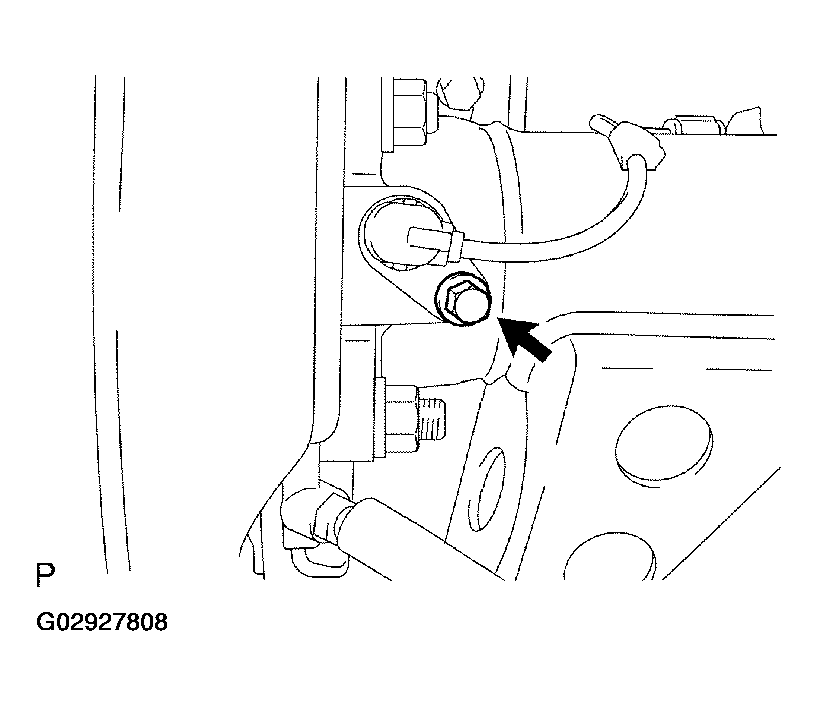

    Fig 1: Removing Speed Sensor
    G02927808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
