Back Door: Components

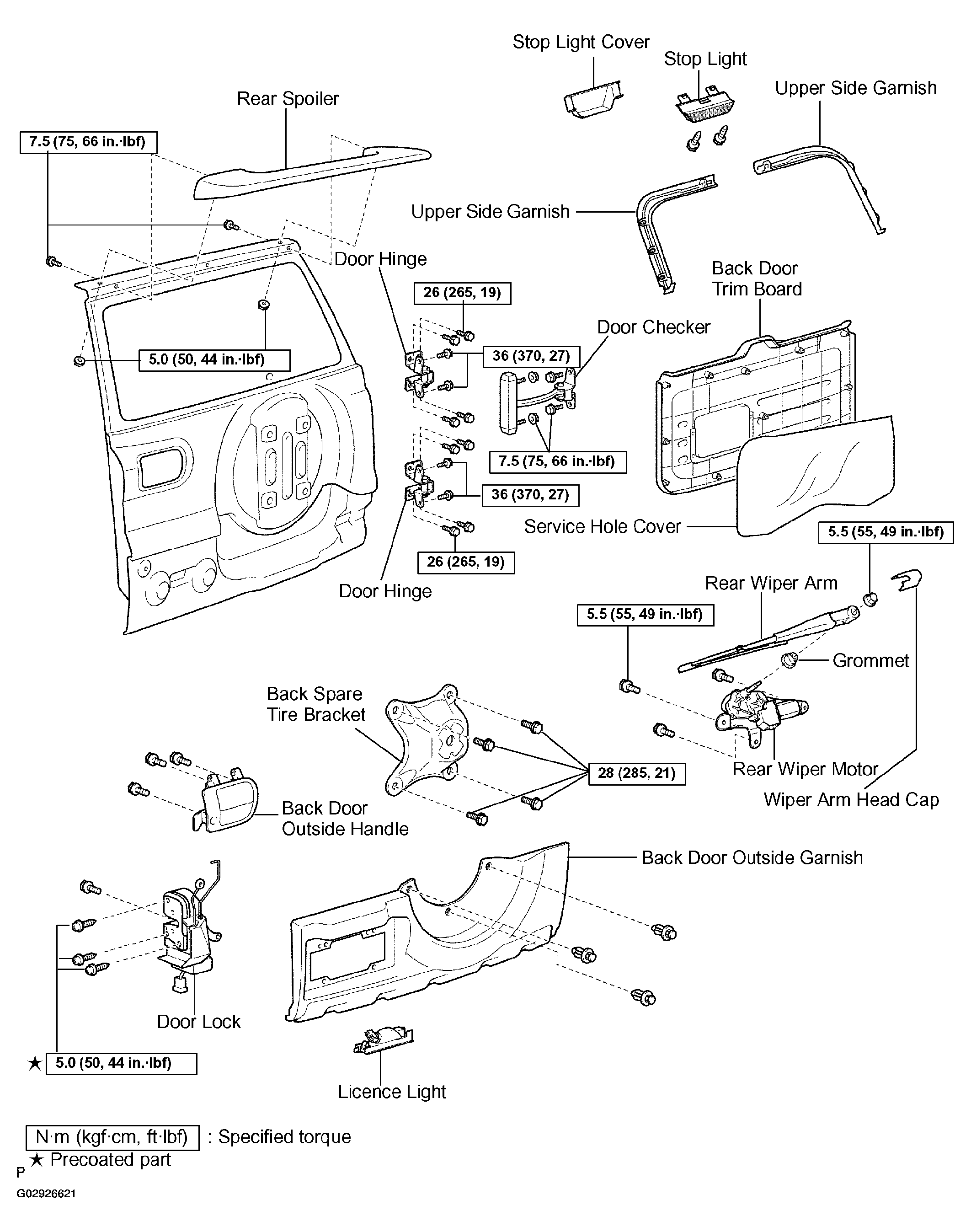

Fig 1: Identifying Back Door Components

G02926621

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
