Repair and Diagnosis: Electrical: Horns: Location

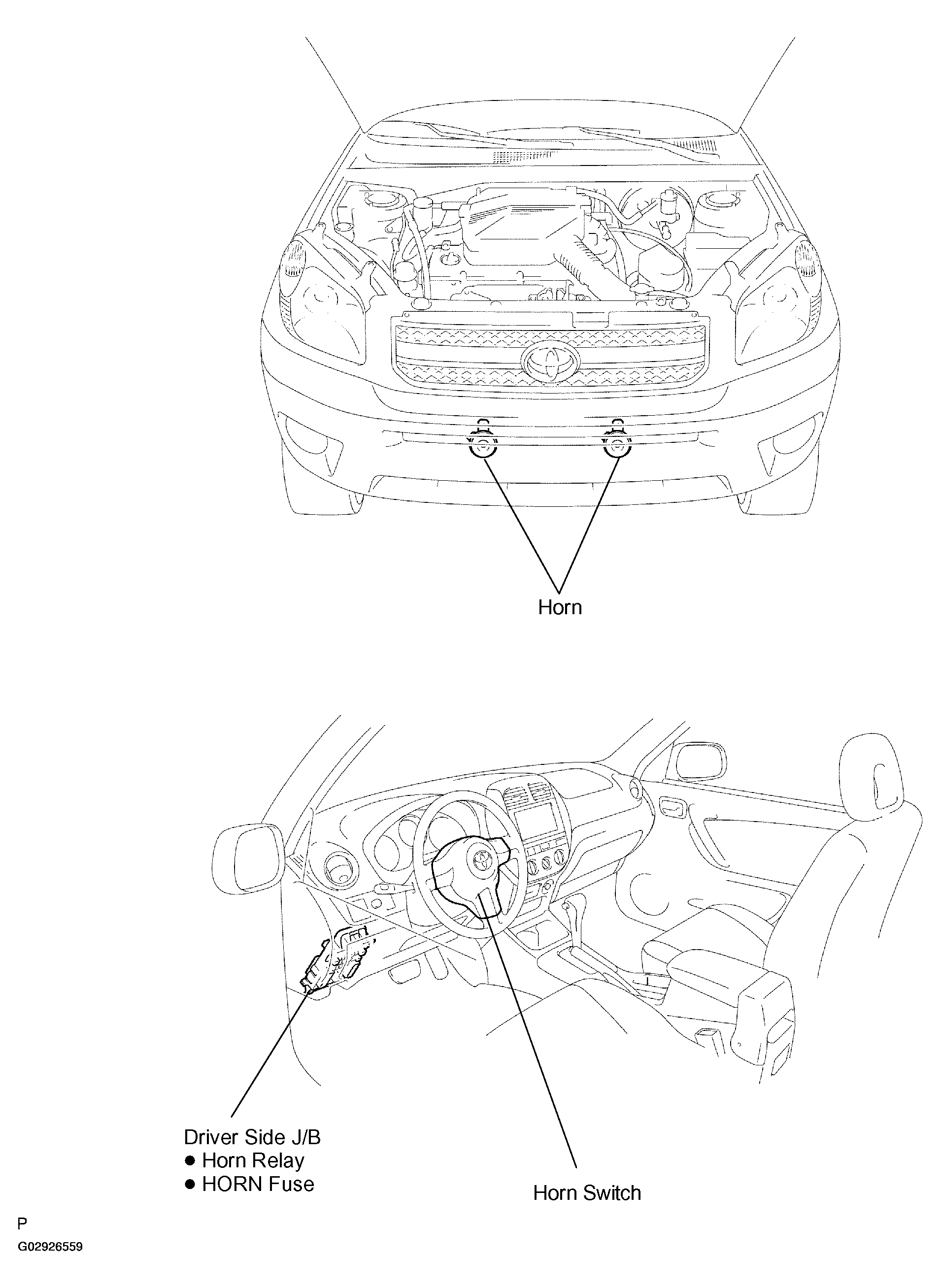

Fig 1: Identifying Horn System Locations

G02926559

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
