Combination Meter: Location

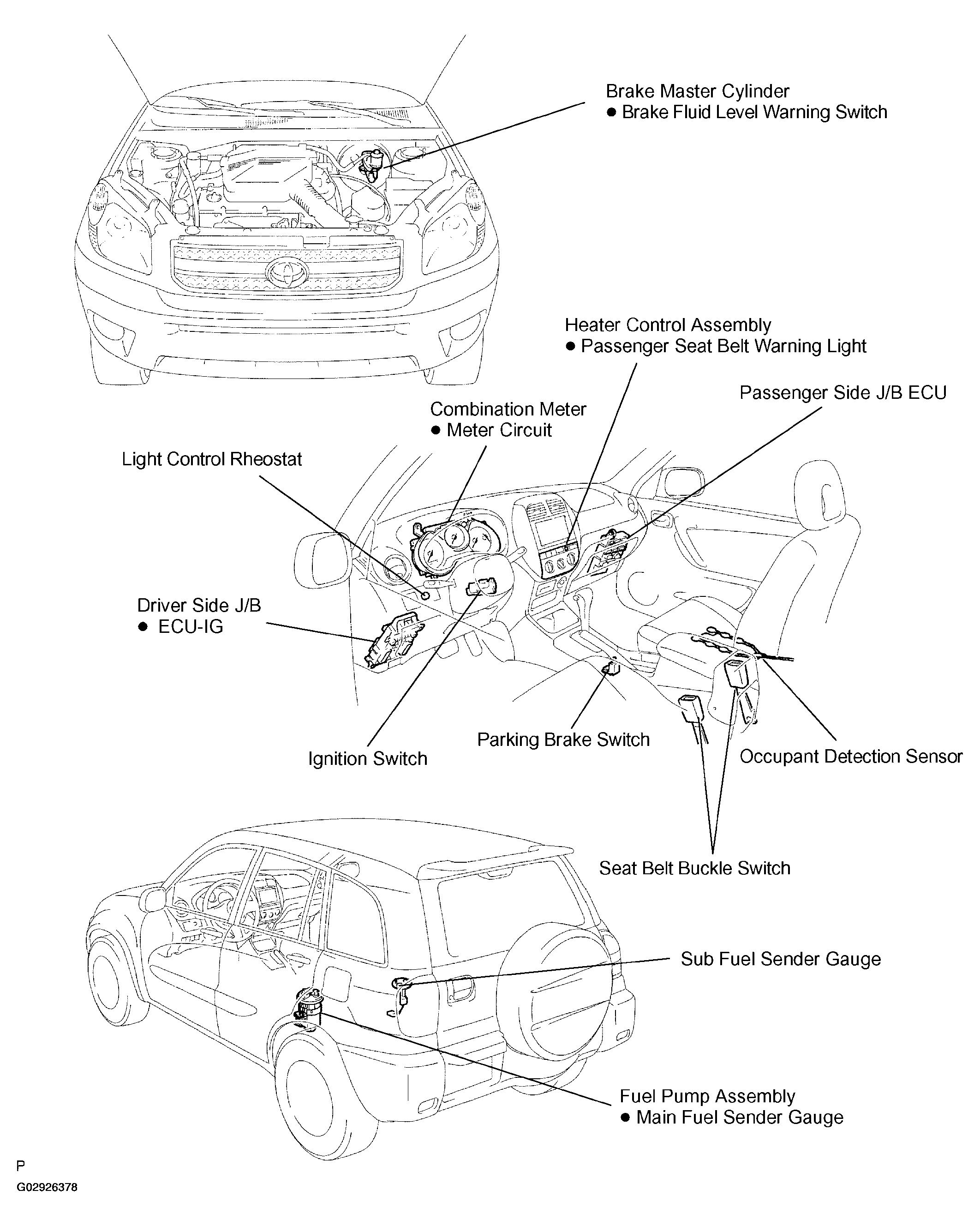

Fig 1: Locating Combination Meter Switch And Fuse Components (1 Of 2)
G02926378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

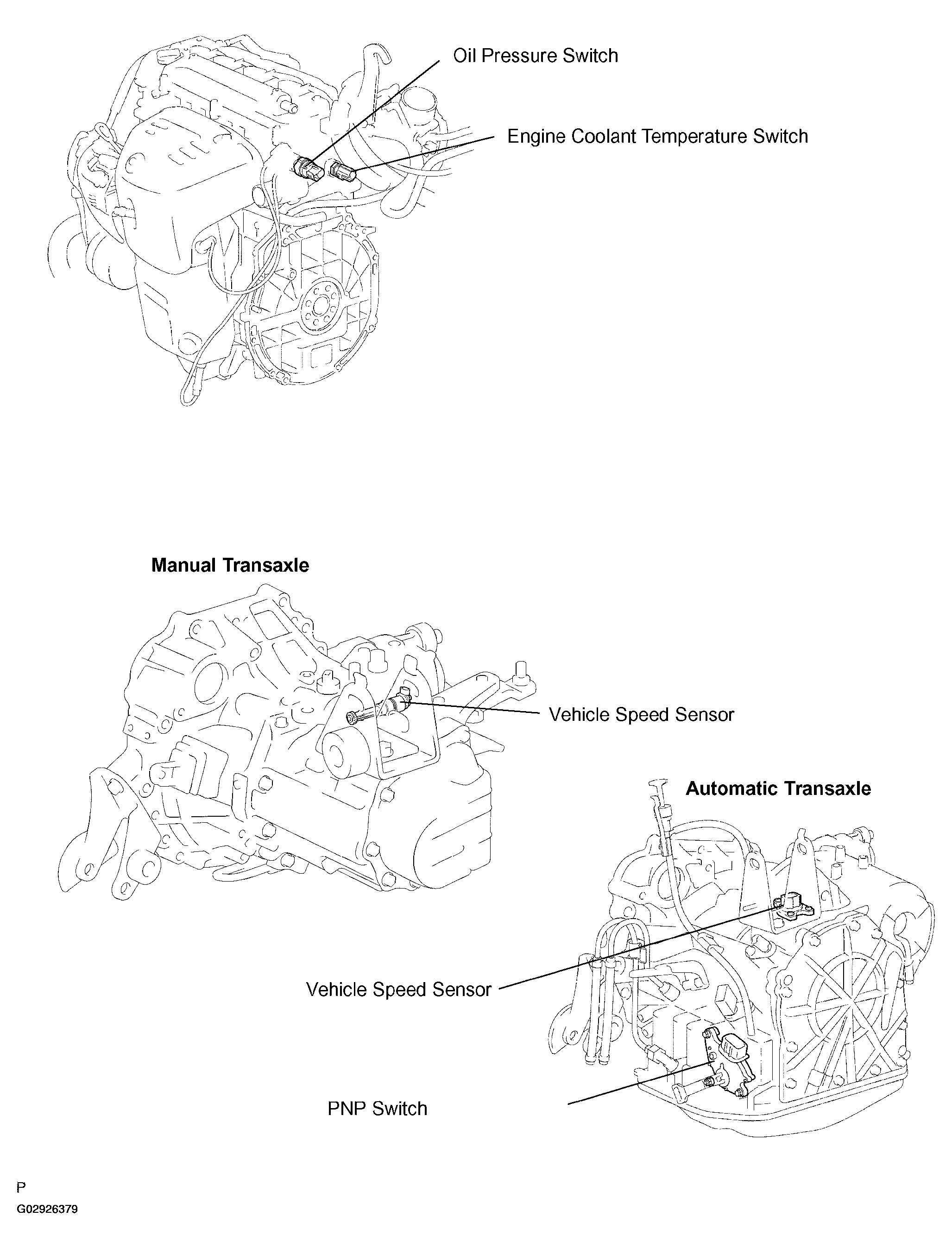

Fig 2: Locating Combination Meter Switch And Fuse Components (2 Of 2)
G02926379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
