Combination Meter: Circuit

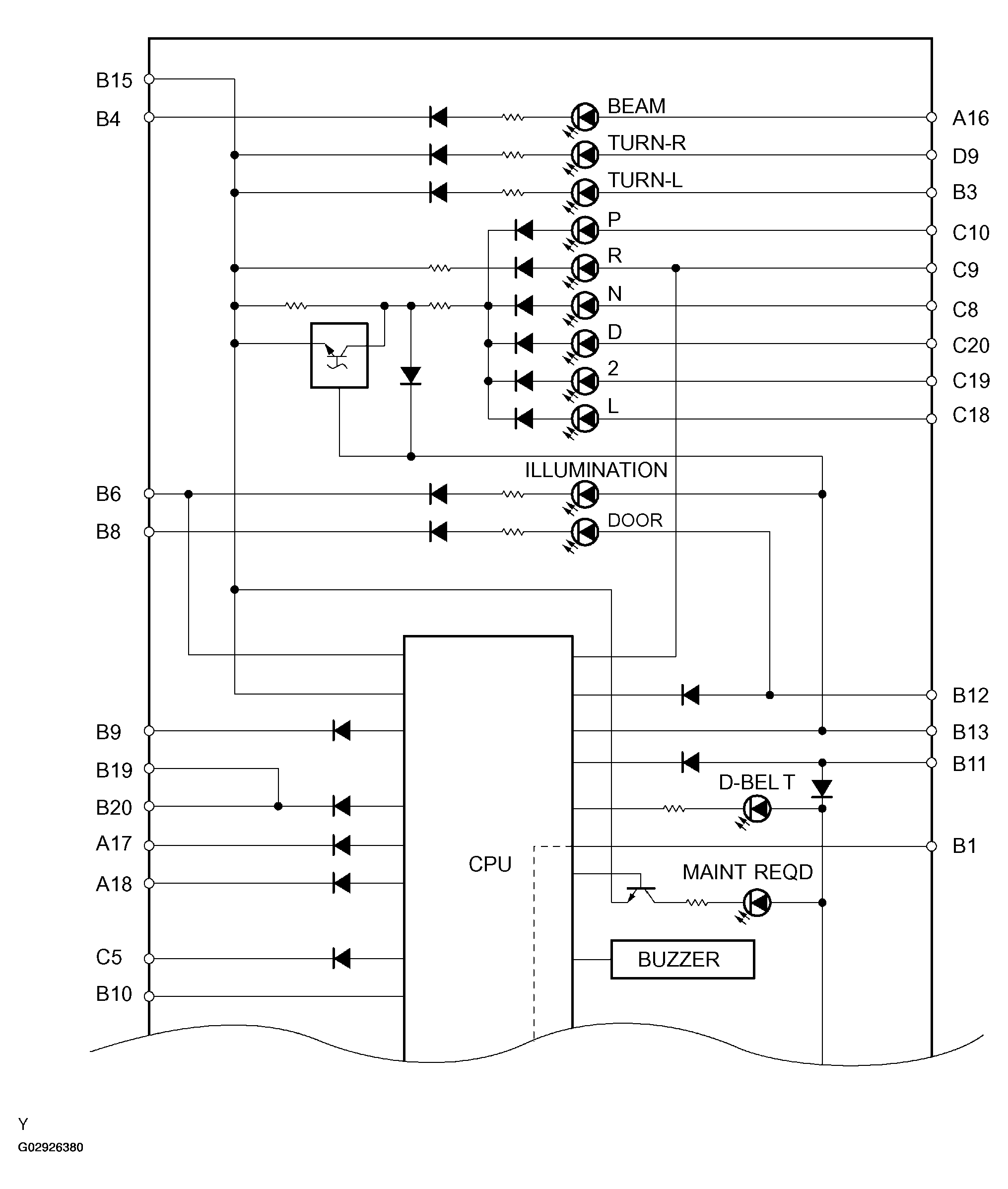

Fig 1: Identifying Combination Meter Circuit Diagram (1 Of 2)
G02926380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

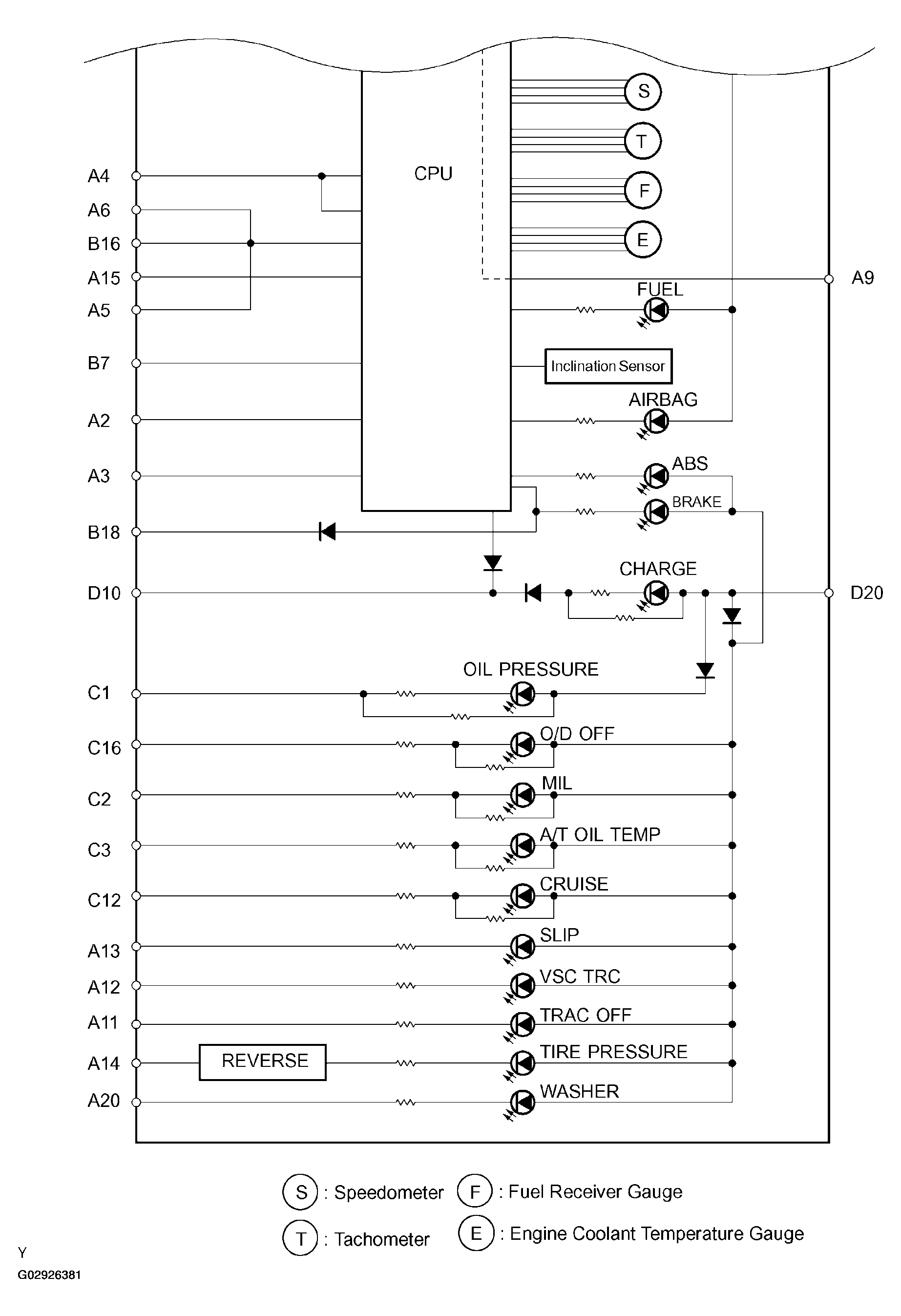

Fig 2: Identifying Combination Meter Circuit Diagram (2 Of 2)
G02926381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

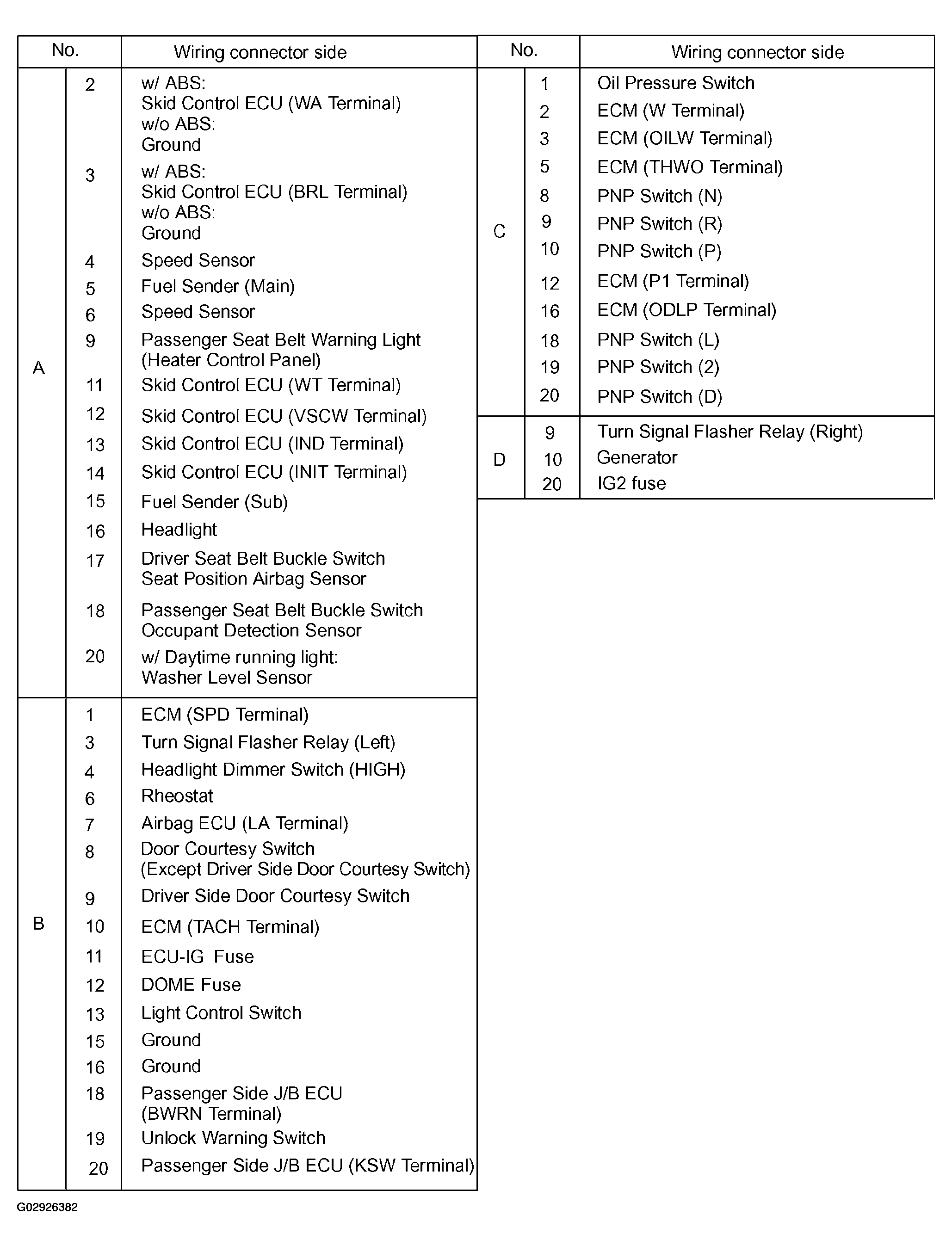

Fig 3: Identifying Wiring Connector Terminal Identification
G02926382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
