Remove Deceleration Sensor

  1. Remove the rear console box and upper console plate (See REMOVAL ).
  2. Disconnect the sensor connector.
  3. Remove the 2 nuts and deceleration sensor.

    Torque: 5.0 N.m (52 kgf.cm, 41 in.lbf)

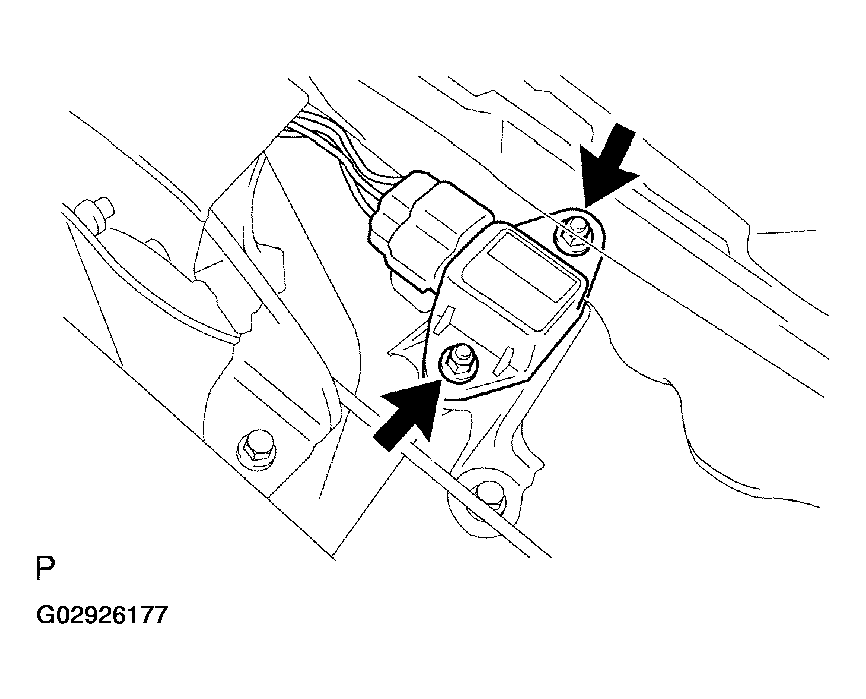

    Fig 1: Removing Deceleration Sensor & Nuts
    G02926177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
