Quarter Window Glass: Removal

HINT:

A bolt without a torque specification is shown in the standard bolt chart. (See SPECIFIED TORQUE FOR STANDARD BOLTS )

REMOVE REAR SEAT
REMOVE REAR FLOOR FINISH PLATE
REMOVE REAR DOOR SCUFF PLATE
REMOVE DECK SIDE TRIM
1. Remove the bolt and rear seat outer belt floor anchor.
2. Remove the 5 screws.

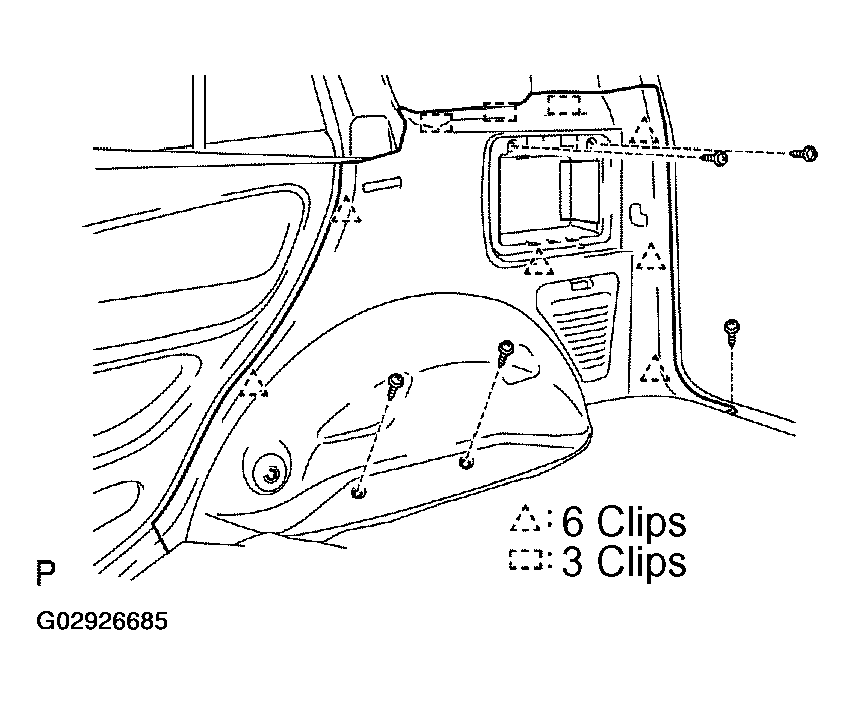

3. Using a screwdriver, remove the deck side trim.
  HINT:

  Tape the screwdriver tip before use.
4. LH side:
  Disconnect the connector.
REMOVE ROOF SIDE INNER GARNISH
1. Remove the bolt and rear seat outer belt shoulder anchor.

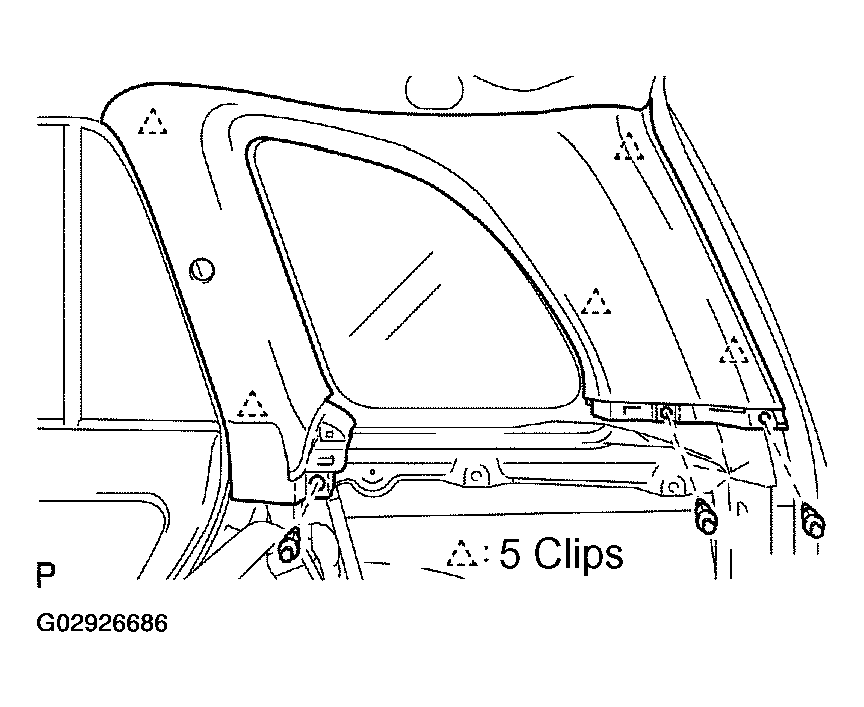

2. Remove the 3 clips.
3. Using a screwdriver, remove the roof side inner garnish.
  HINT:

  Tape the screwdriver tip before use.
REMOVE QUARTER WINDOW GLASS
1. Using a knife, cut off the molding as shown in Fig 3.
  NOTE: Do not damage the body with the knife.
2. Remove the remaining molding.

  Fig 3: Removing Molding
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Push a piano wire through between the body and glass from the interior.
4. Tie both wire ends to wooden blocks or similar objects.
  HINT:

  Apply protective tape to the outer surface to keep the surface from being scratched.

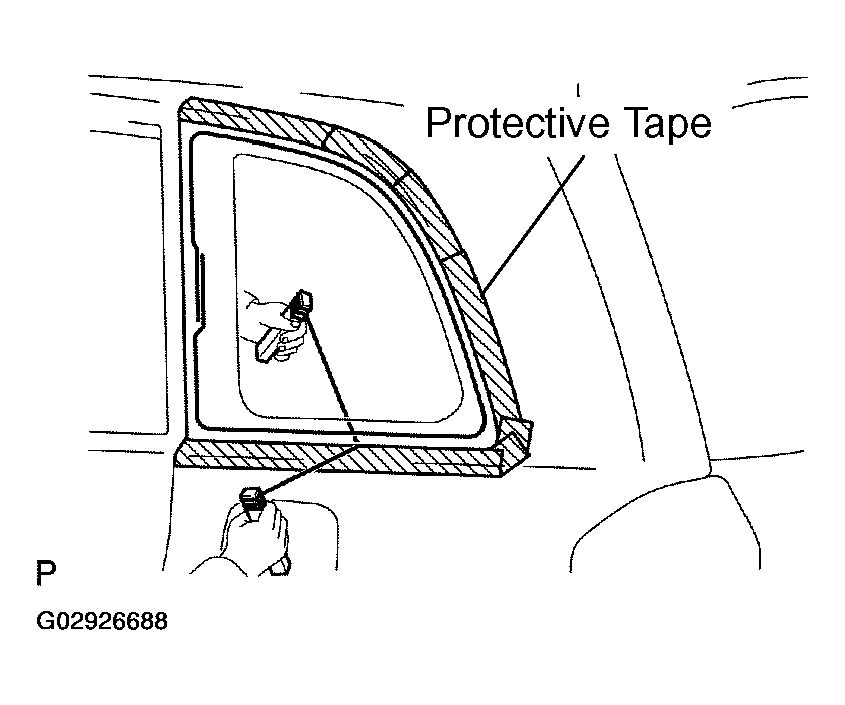

  Fig 4: Pushing Piano Wire Between Body & Glass & Applying Protective Tape
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: When separating the glass, take care not to damage the paint and exterior.
5. Cut the adhesive by pulling the piano wire around it.
  HINT:

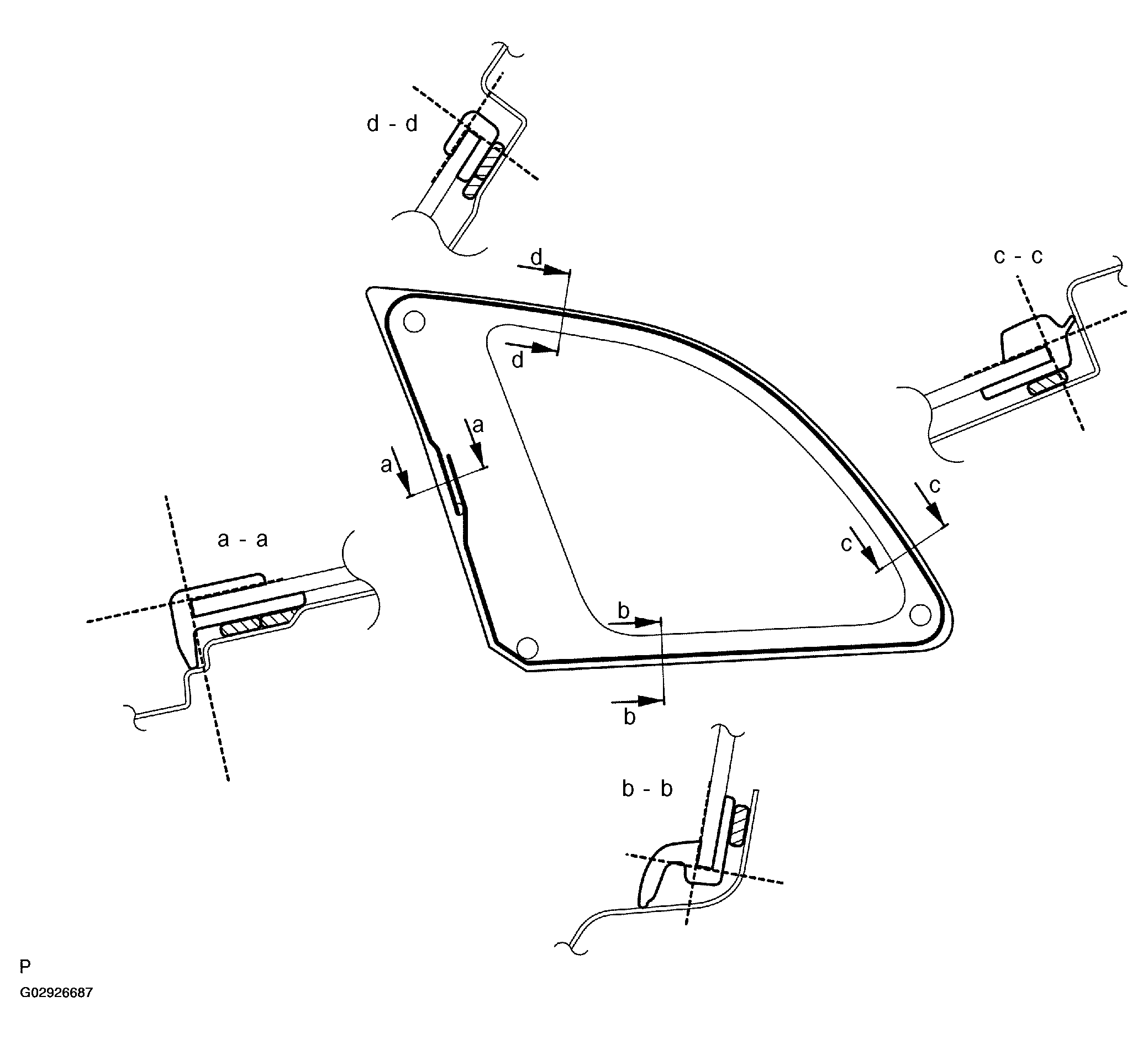

  Cut the adhesive areas as shown in Fig 5, leaving the adhesive where the clips are.

  Fig 5: Cutting Adhesive By Pulling Piano Wire Around It
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

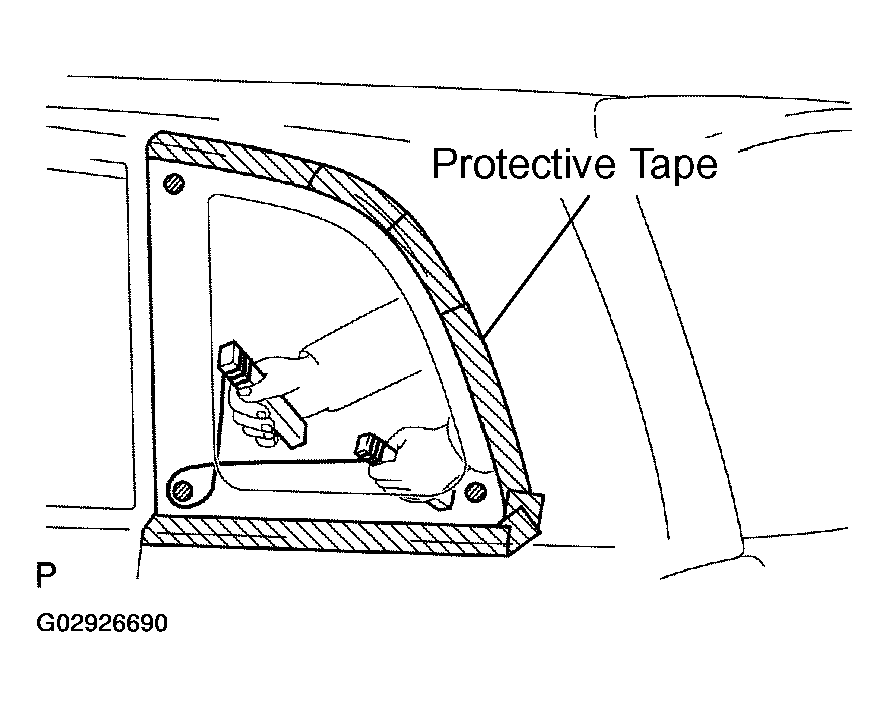

6. Push the piano wire through as shown in Fig 6, cut off the adhered part to the clips.
7. Remove the glass.
  NOTE: Leave the adhesive on the body as much as possible when cutting off the glass.

  Fig 6: Removing Glass With Piano Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
