Back Door: Adjustment

ADJUST DOOR IN FORWARD/REARWARD AND VERTICAL DIRECTIONS
Adjust the door by slightly loosening the hinge nuts on the body side.

Torque:

Door side: 36 N.m (365 kgf.cm, 27 ft.lbf)

Body side: 26 N.m (265 kgf.cm, 19 ft.lbf)

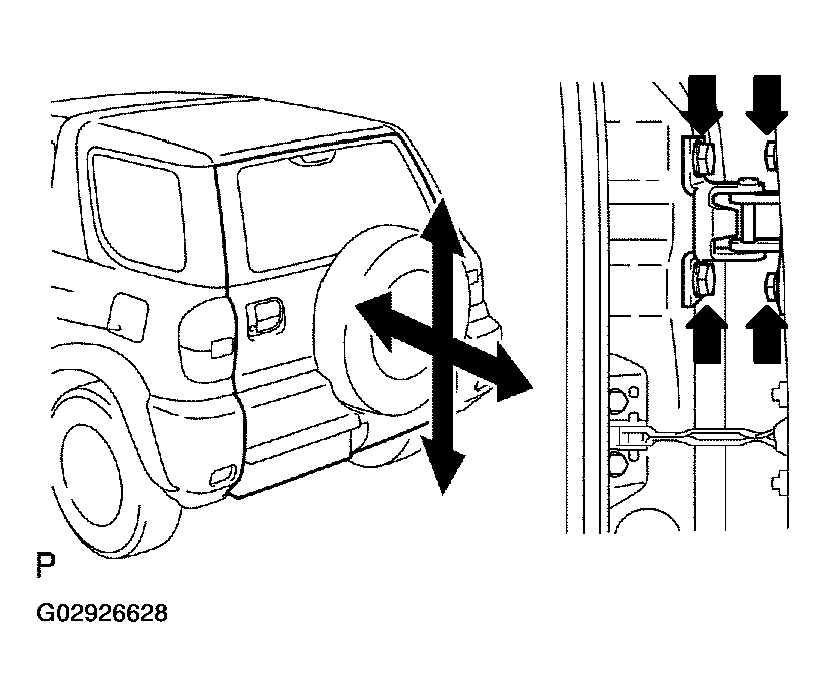

Fig 1: Adjusting Door Forward/Rearward & Vertically By Loosening Body Side Hinge Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

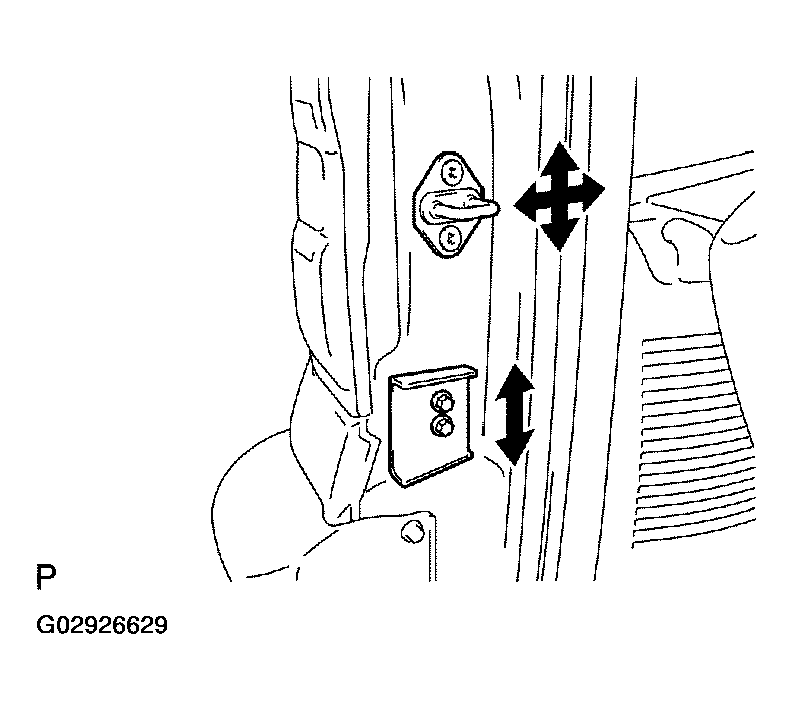

ADJUST DOOR LOCK STRIKER
1. Loosen the striker mounting screws.
  Torque: 23 N.m (230 kgf.cm, 17 ft.lbf)
2. Using a plastic hammer, tap the striker to adjust it.
