Home >> Toyota >> 2004 >> RAV4 L, FWD, Automatic >> Repair and Diagnosis >> Body & Frame >> Windows >> Back Door Glass >> Components

Back Door Glass: Components

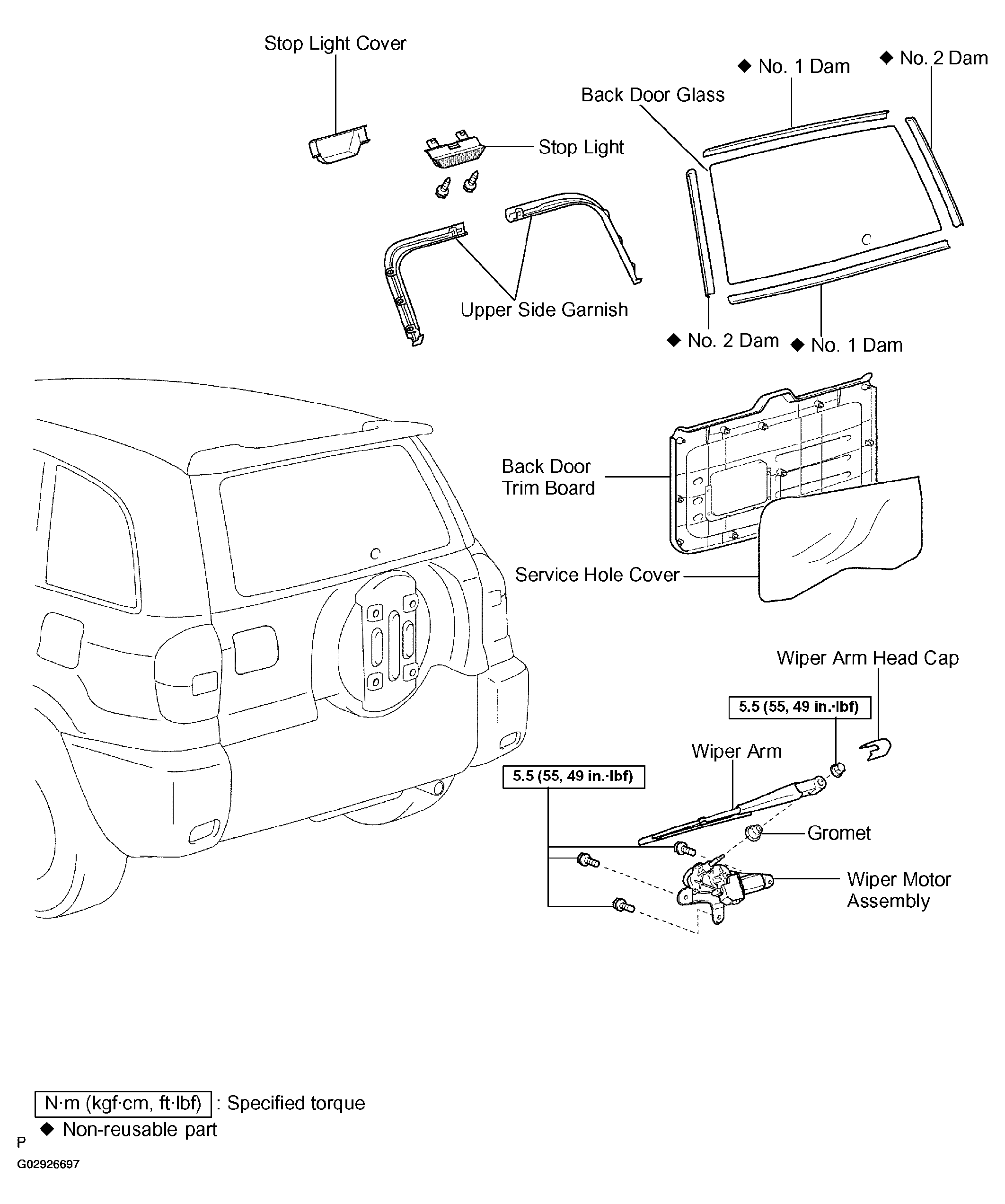

Fig 1: Identifying Back Door Glass Components

G02926697

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
