Home >> Toyota >> 2004 >> RAV4 L, FWD, Automatic >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Power Door Lock Control System >> Location

Power Door Lock Control System: Location

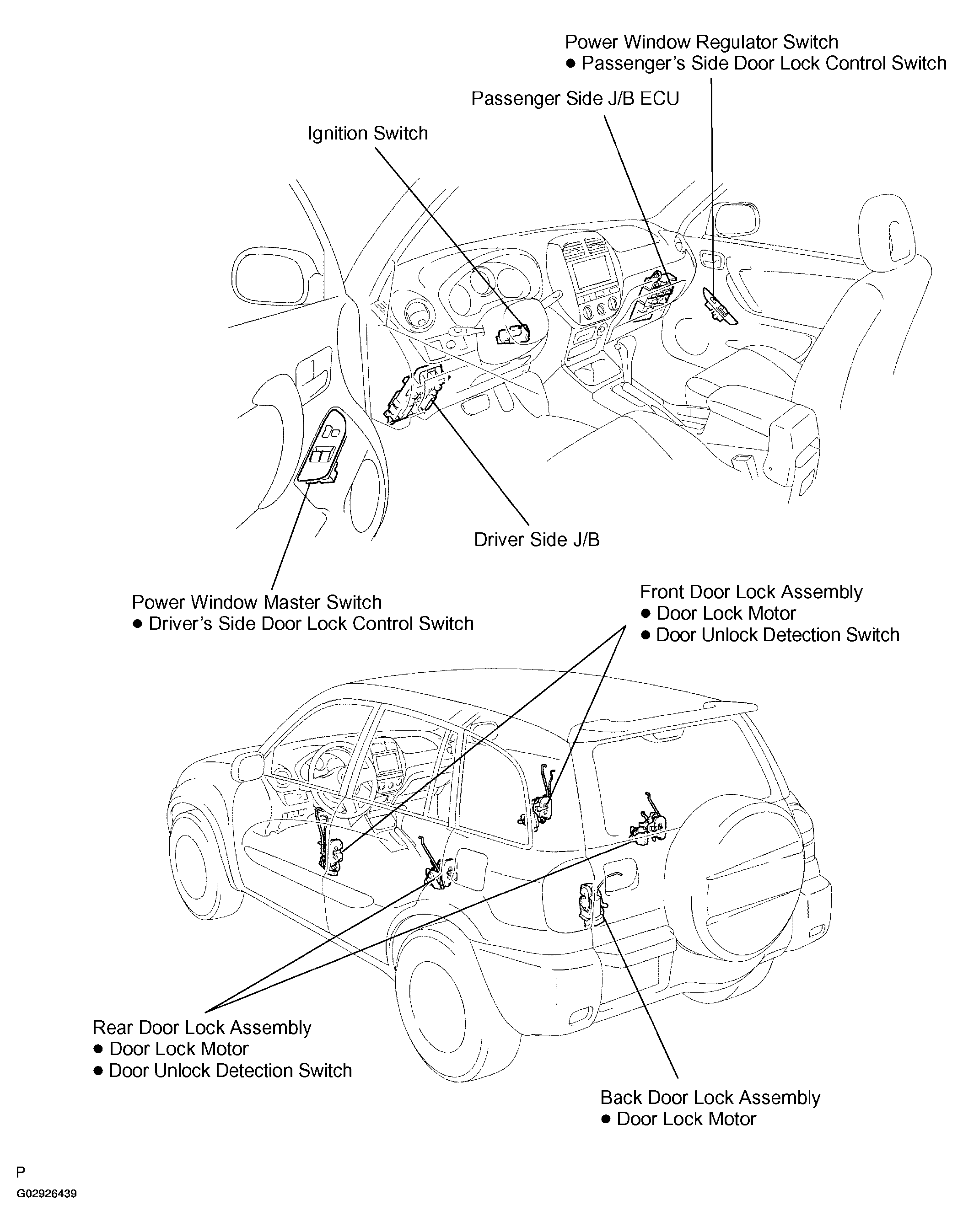

Fig 1: Identifying Door Lock Control System Locations

G02926439

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
