Home >> Toyota >> 2004 >> RAV4 L, AWD, Standard >> Repair and Diagnosis >> Steering >> Tilt Steering Column >> Components

Tilt Steering Column: Components

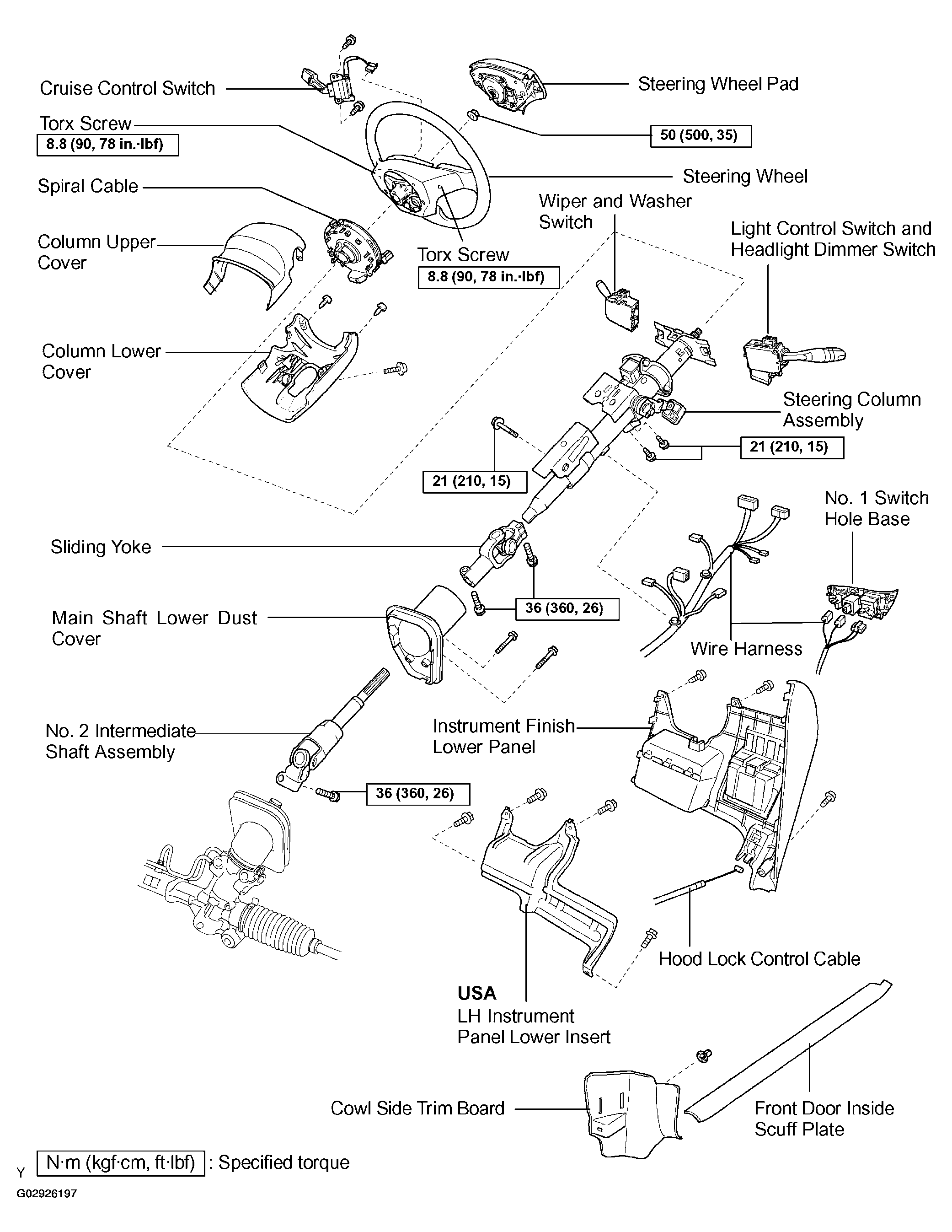

Fig 1: Exploded View Of Tilt Steering Column Components (1 Of 2)
G02926197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

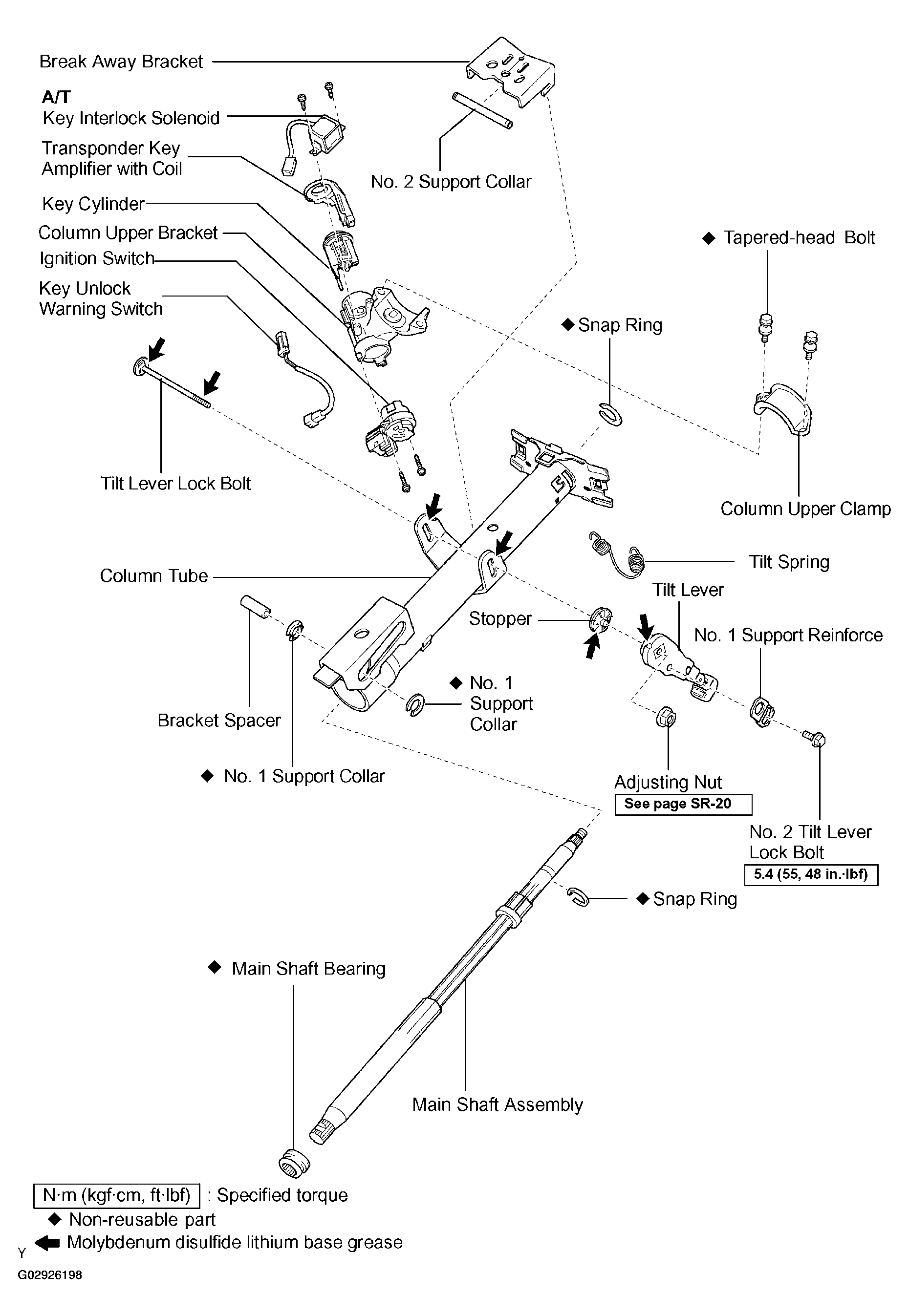

Fig 2: Exploded View Of Tilt Steering Column Components (2 Of 2)
G02926198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
