Component Locations

WARNING: This page is about a different car, the 2003 Lexus RX 300 and 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

For instrument panel component locations, see Fig 1.

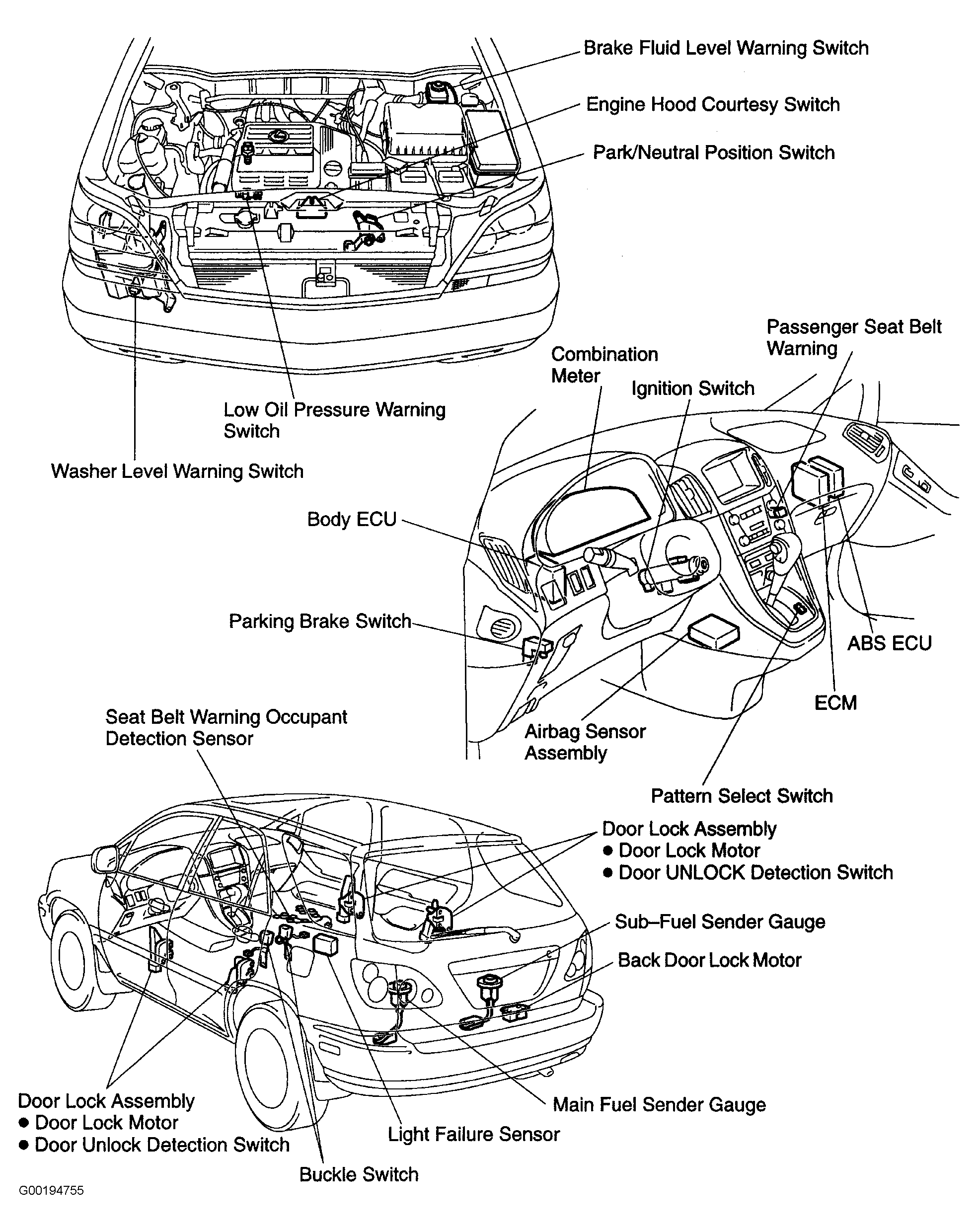

Fig 1: Identifying Instrument Panel Component Locations
G00194755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
