Parts Location

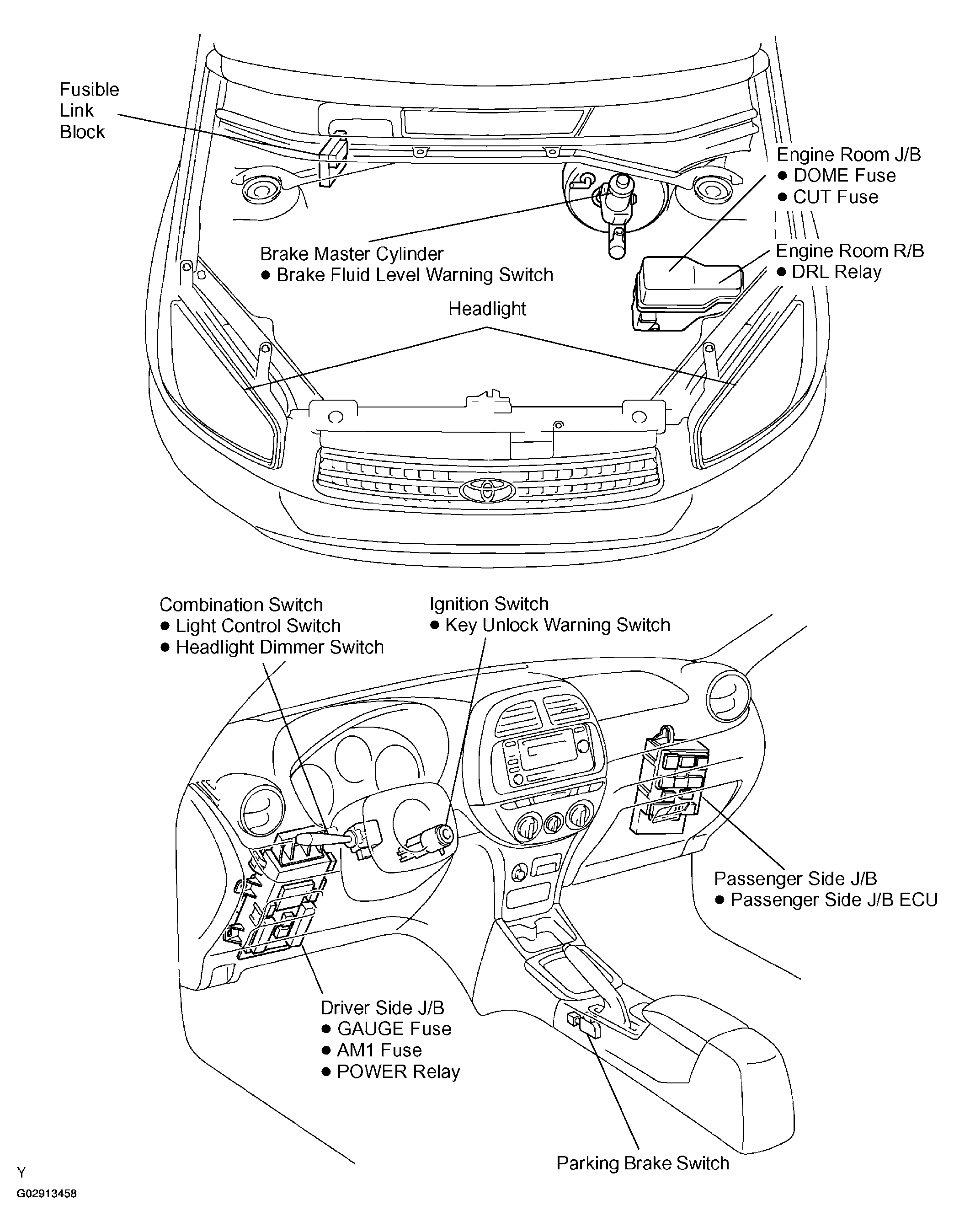

Fig 1: Locating Body Control System Components (1 Of 2)
G02913458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

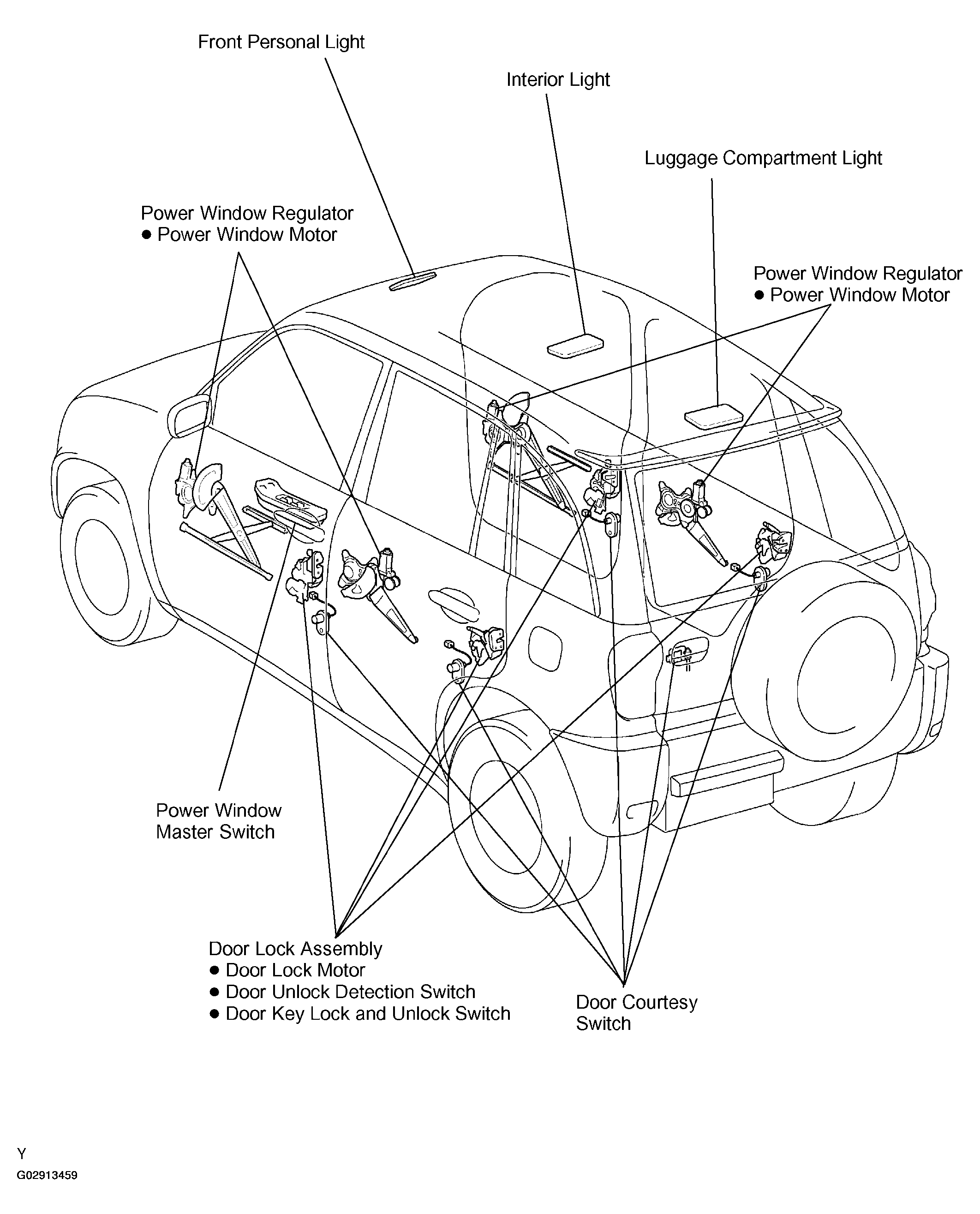

Fig 2: Locating Body Control System Components (2 Of 2)
G02913459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
