Transfer (4WD): Components

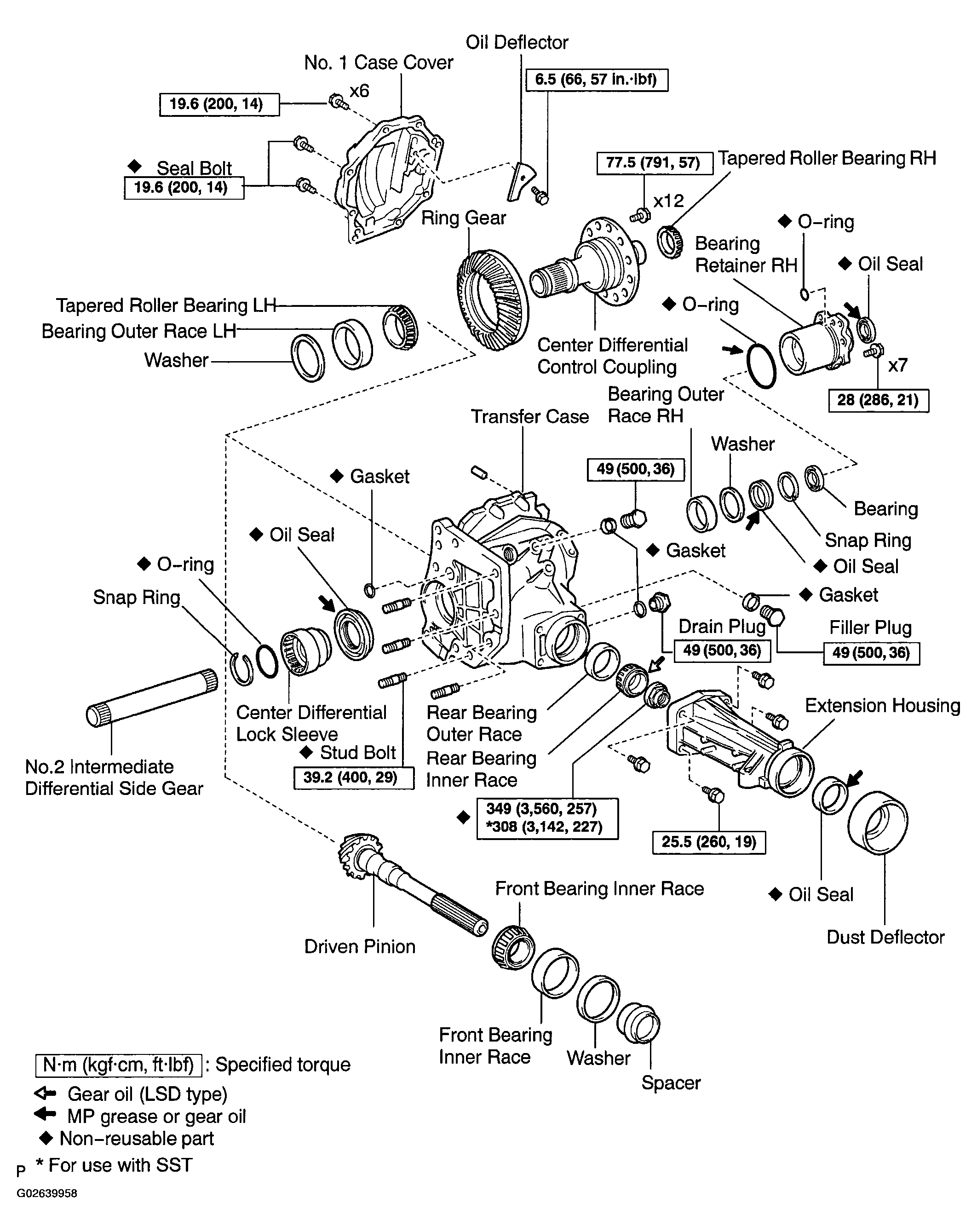

Fig 1: Exploded View Of Transfer Components (4WD)

G02639958

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
