Home >> Toyota >> 2004 >> RAV4 Base, AWD, Standard >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Transaxle >> Shift And Select Lever Shaft >> Components

Shift And Select Lever Shaft: Components

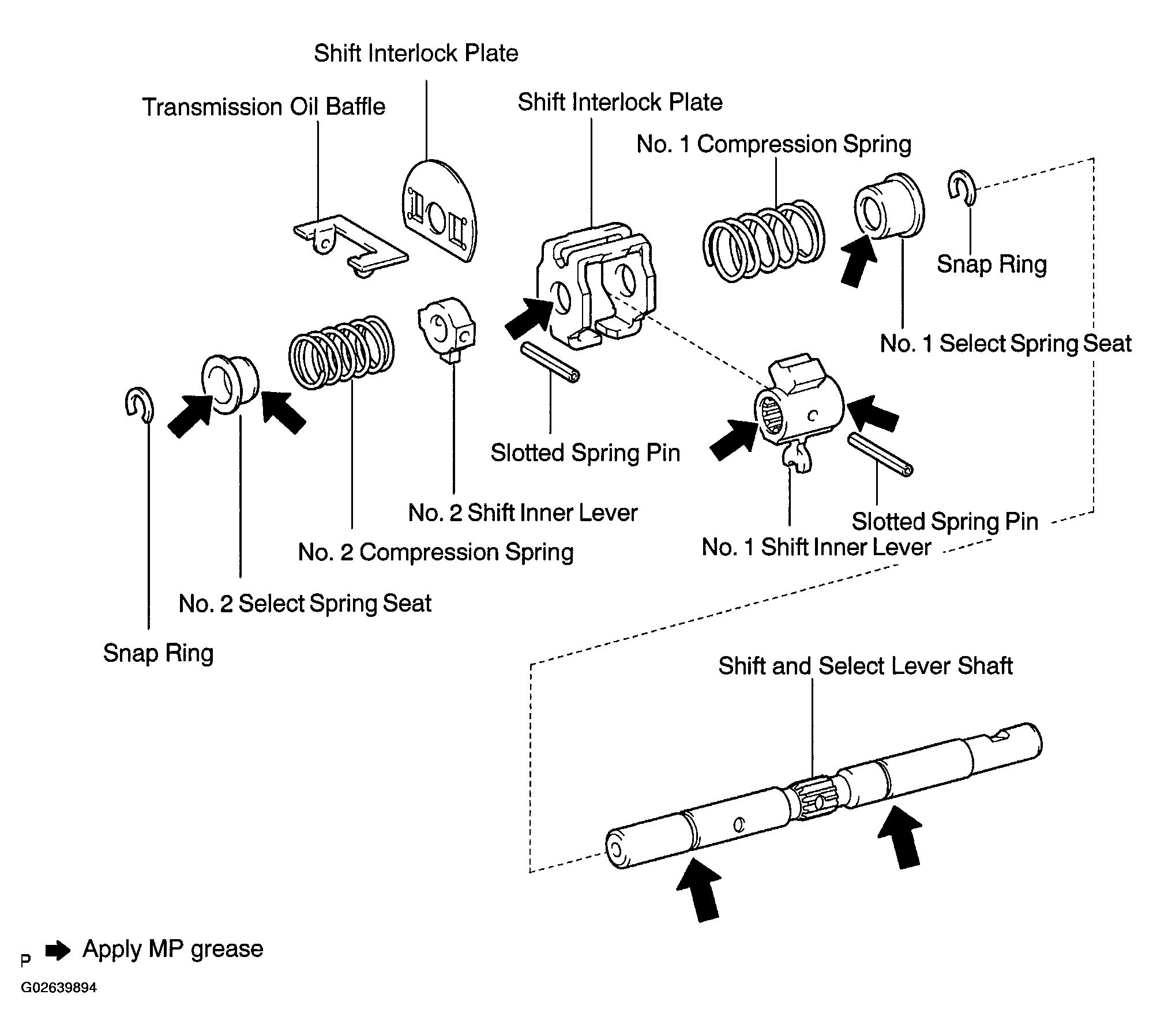

Fig 1: Exploded View Of Shift And Select Lever Shaft Components

G02639894

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
