Oil Pump (4WD): Components

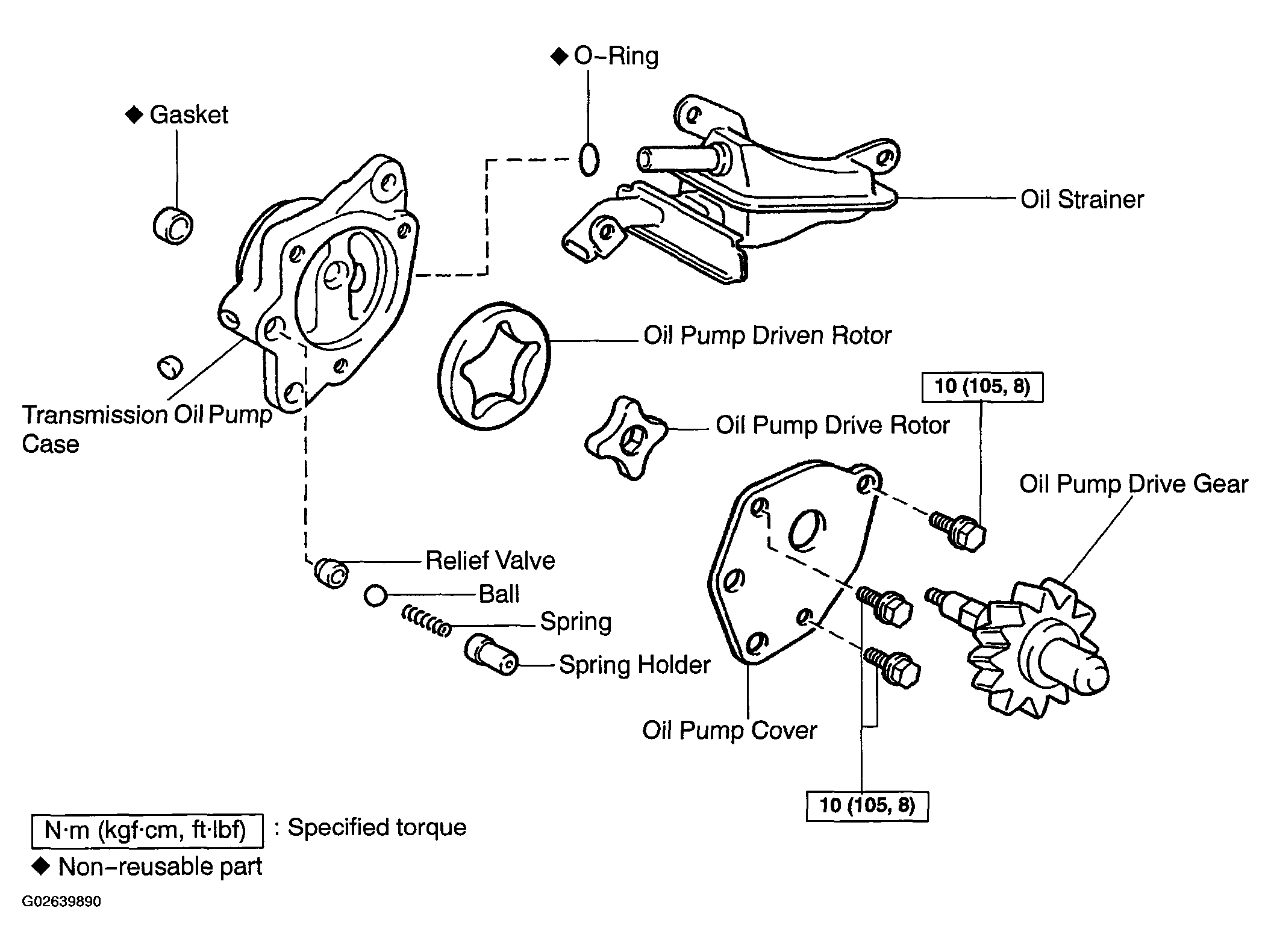

Fig 1: Exploded View Of Oil Pump Components (4WD)
G02639890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
