Manual Transaxle Unit (4WD): Components

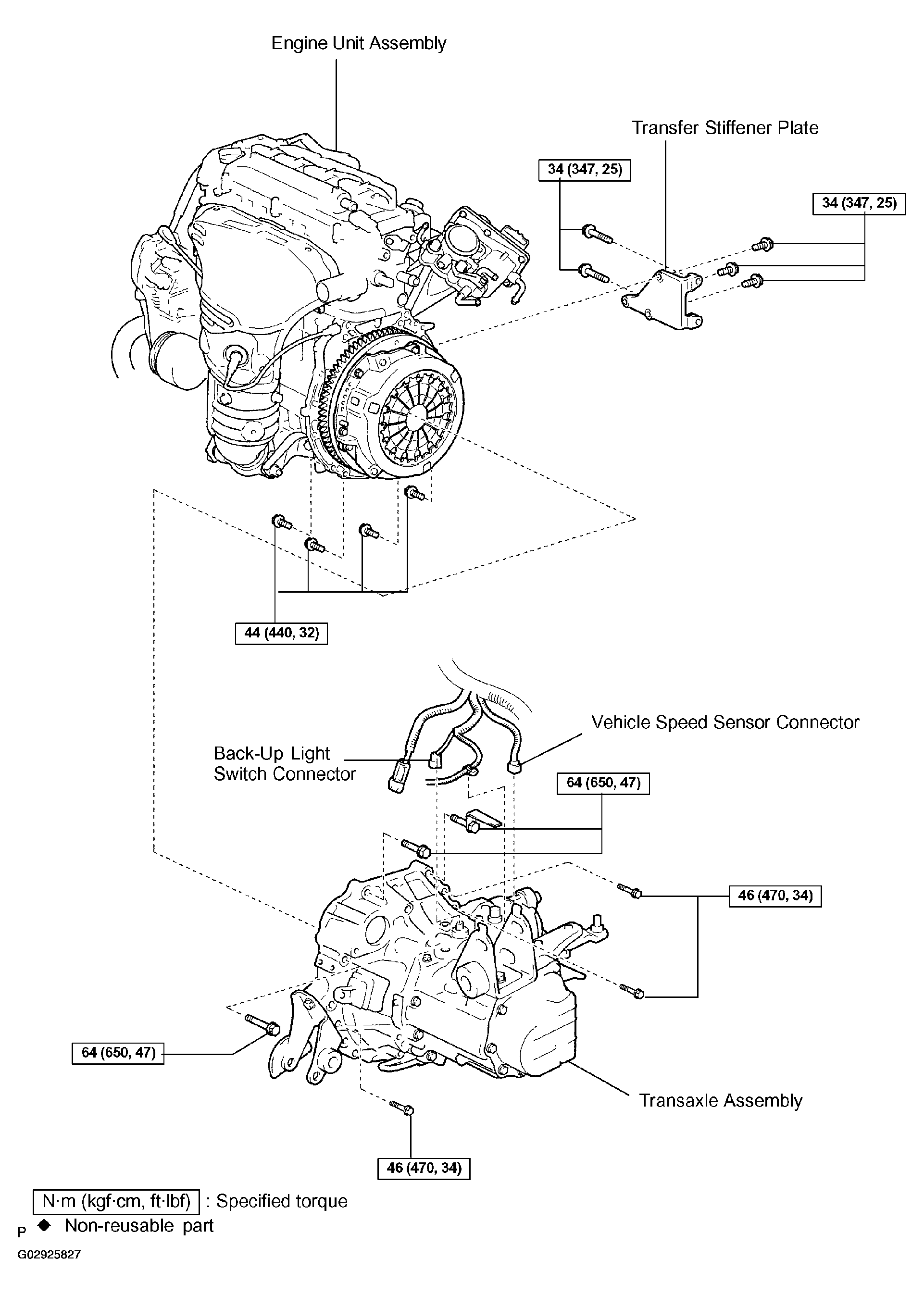

Fig 1: Locating Manual Transaxle Unit (4WD) Components

G02925827

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
