Manual Transaxle Unit (2WD): Components

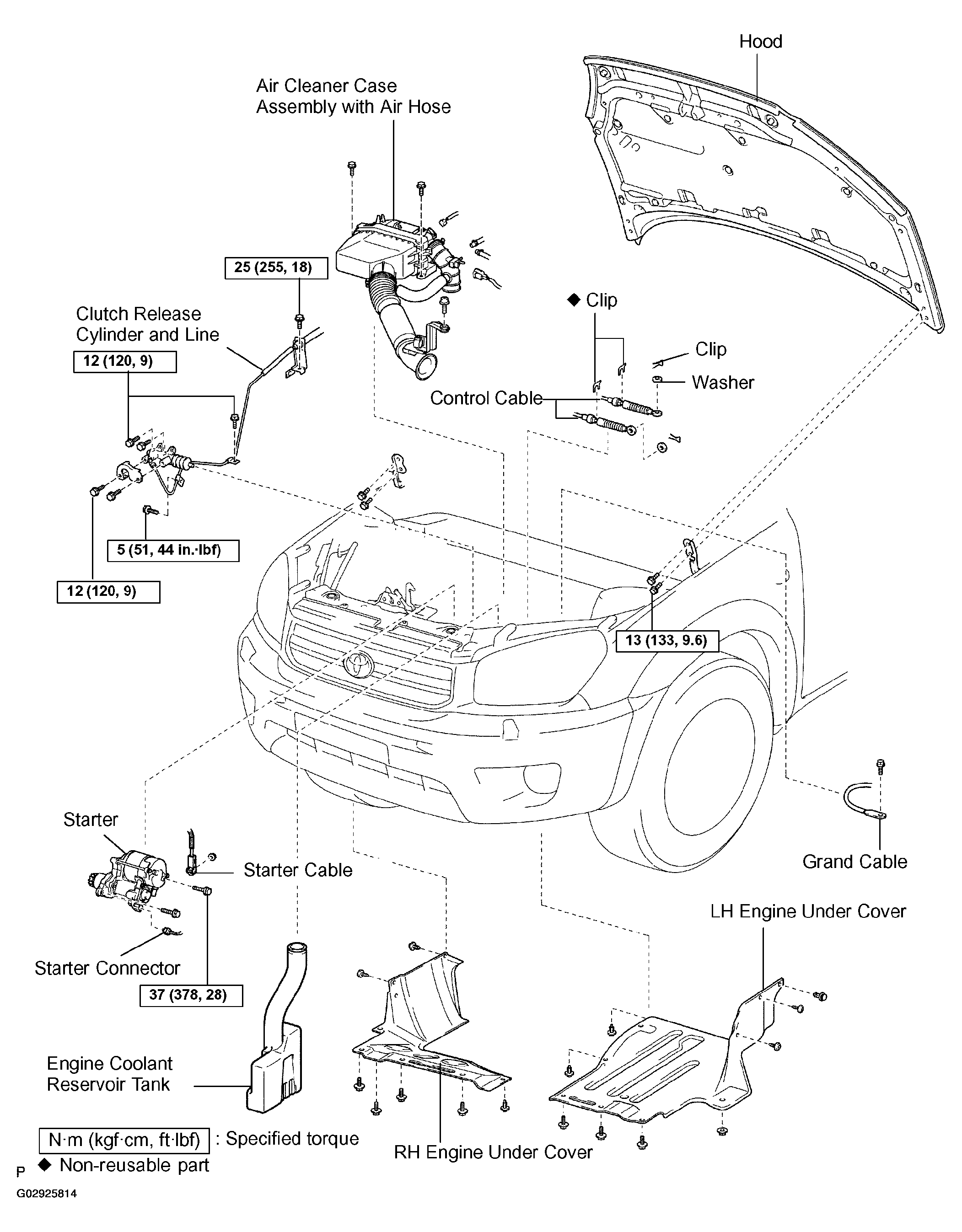

Fig 1: Locating Manual Transaxle Unit 2WD Components (1 Of 2)
G02925814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

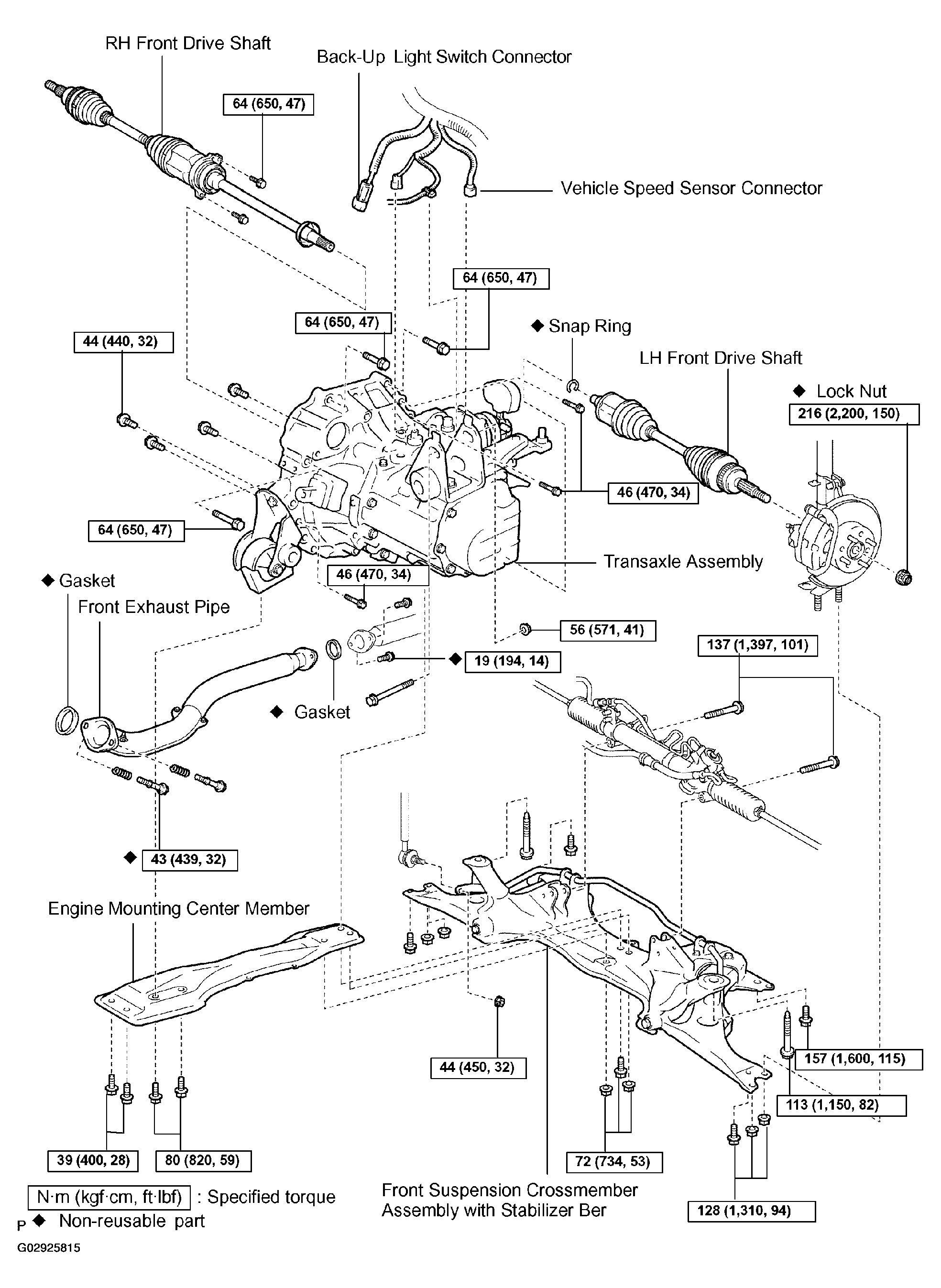

Fig 2: Locating Manual Transaxle Unit 2WD Components (2 Of 2)
G02925815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
