Differential Case (4WD): Components

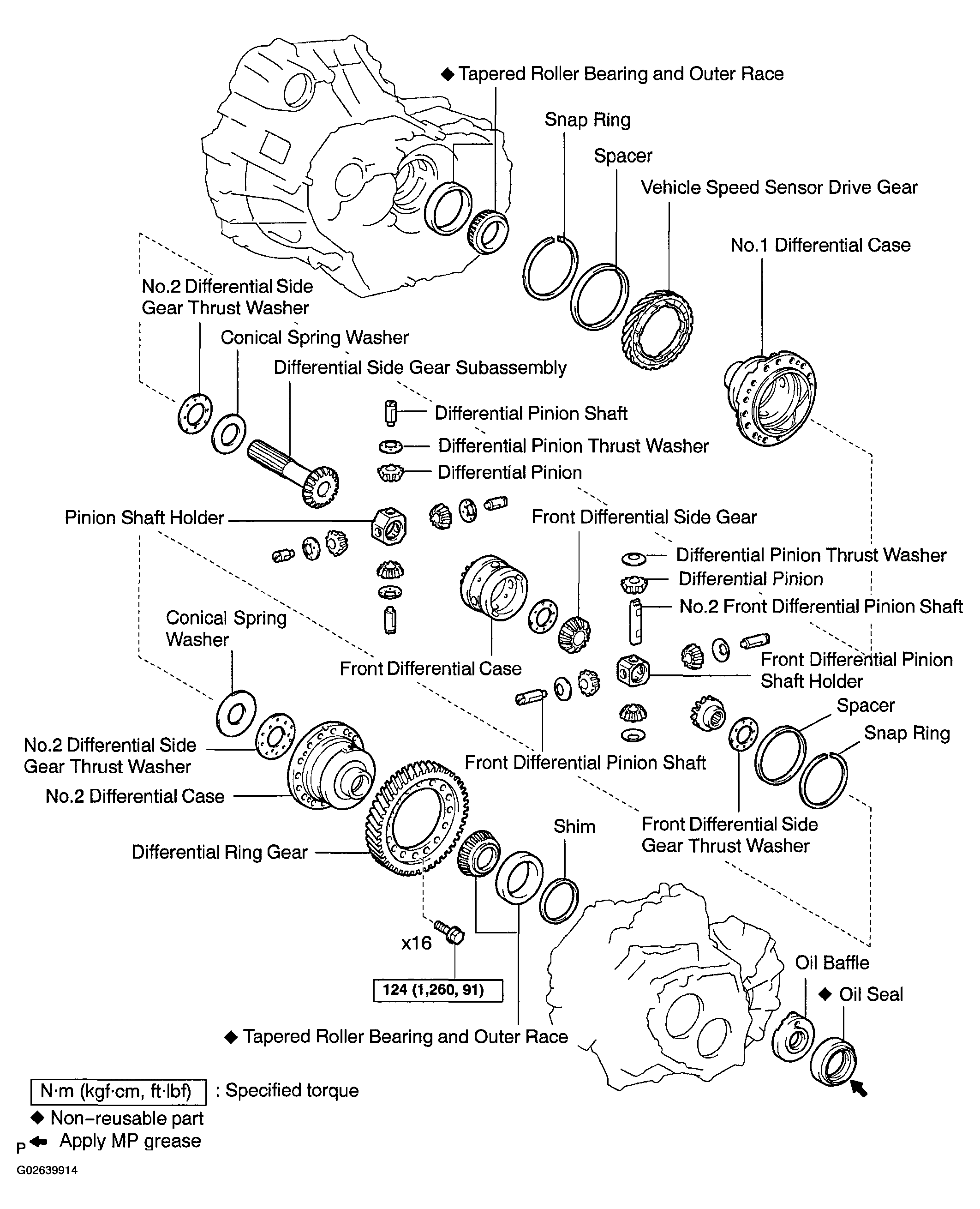

Fig 1: Exploded View Of Differential Case Components (4WD)
G02639914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
