Differential Case (2WD): Components

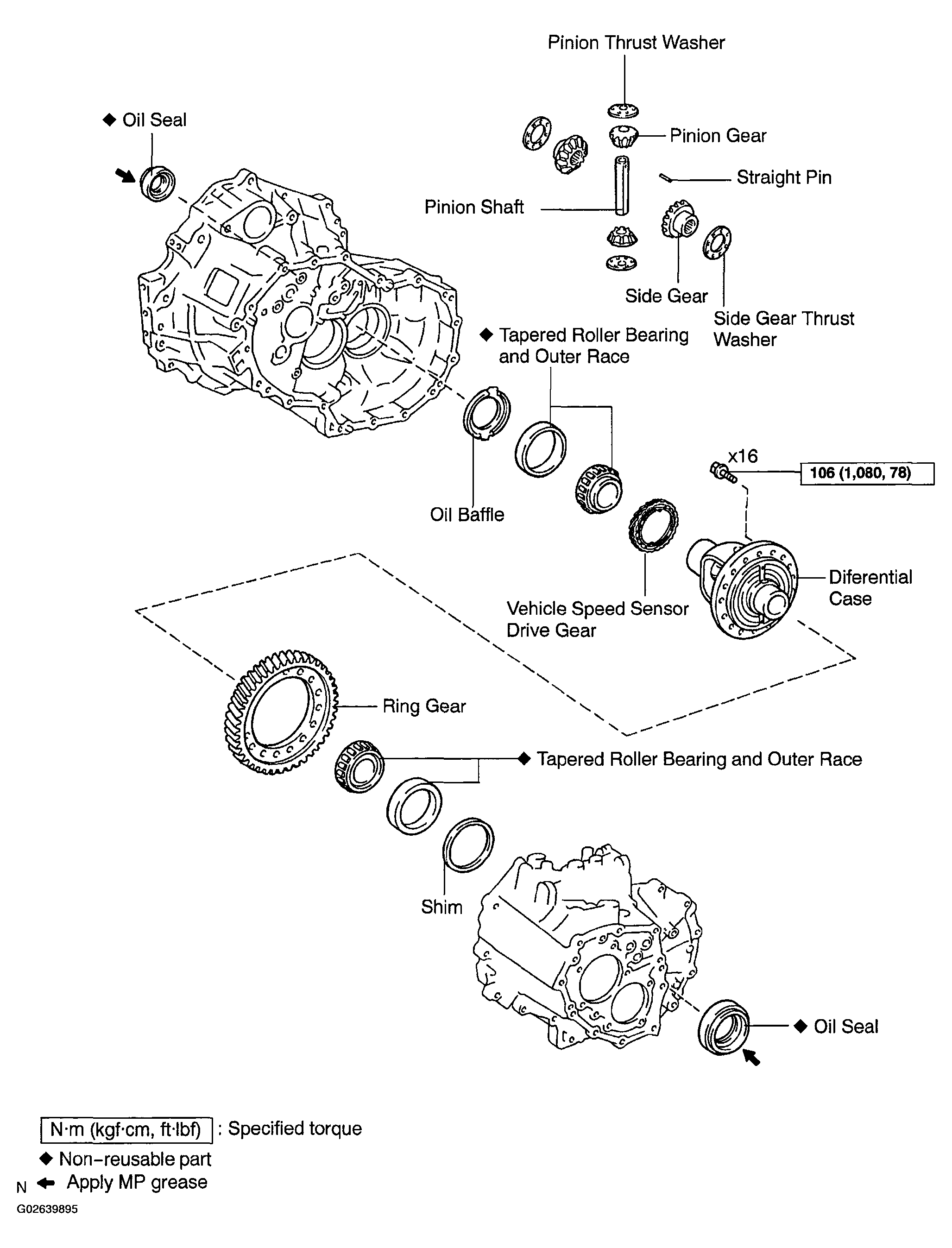

Fig 1: Exploded View Of Differential Case Components (2WD)
G02639895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
