Section 422 (Multiplex Communication System - Diagnosis): Location
WARNING: This page is about a different car, the 2002 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

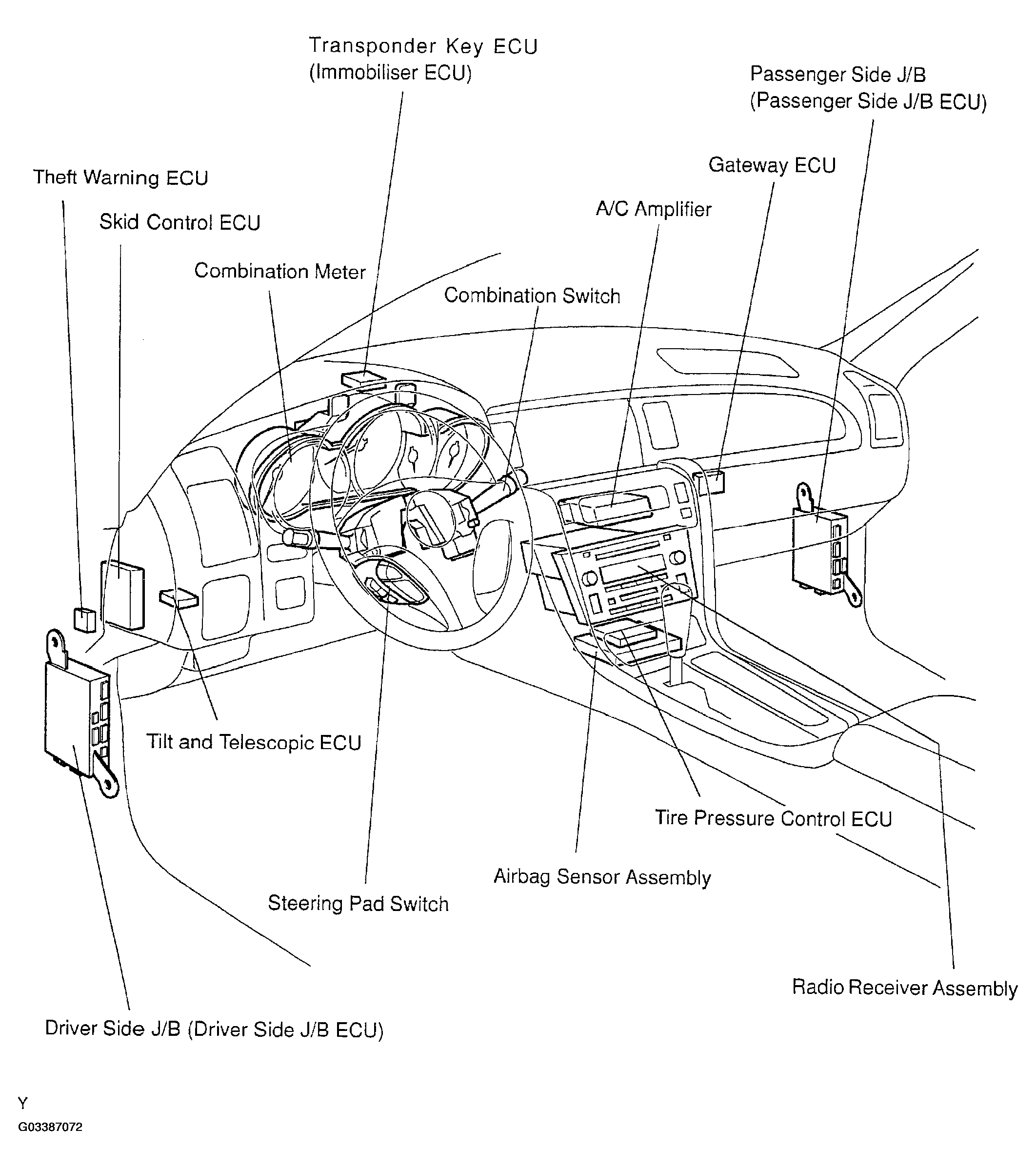

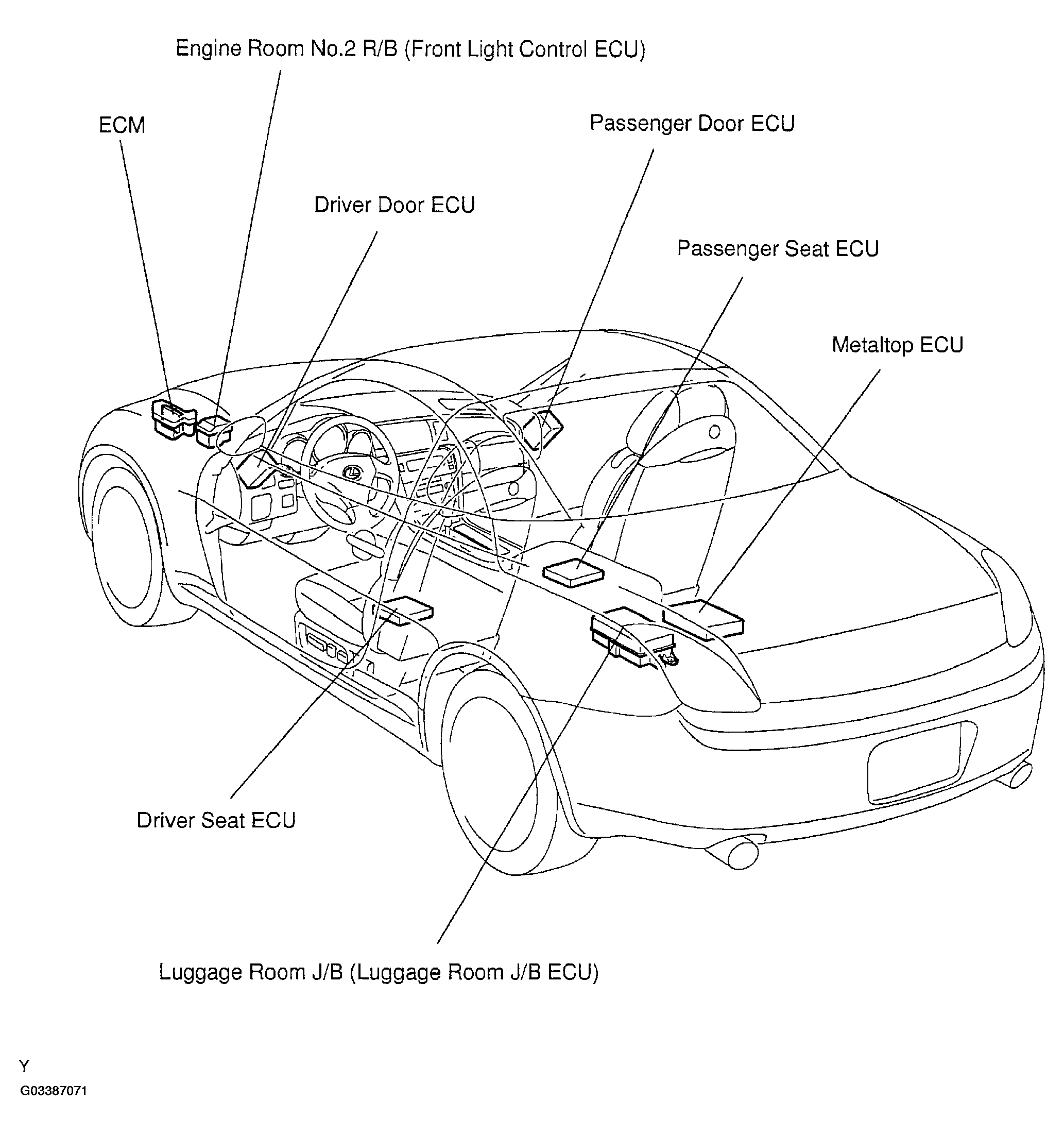

Fig 1: Locating Multiplex Communication System Connectors (1 Of 2)
