Three-Way Catalytic Converter (TWC) System: Components

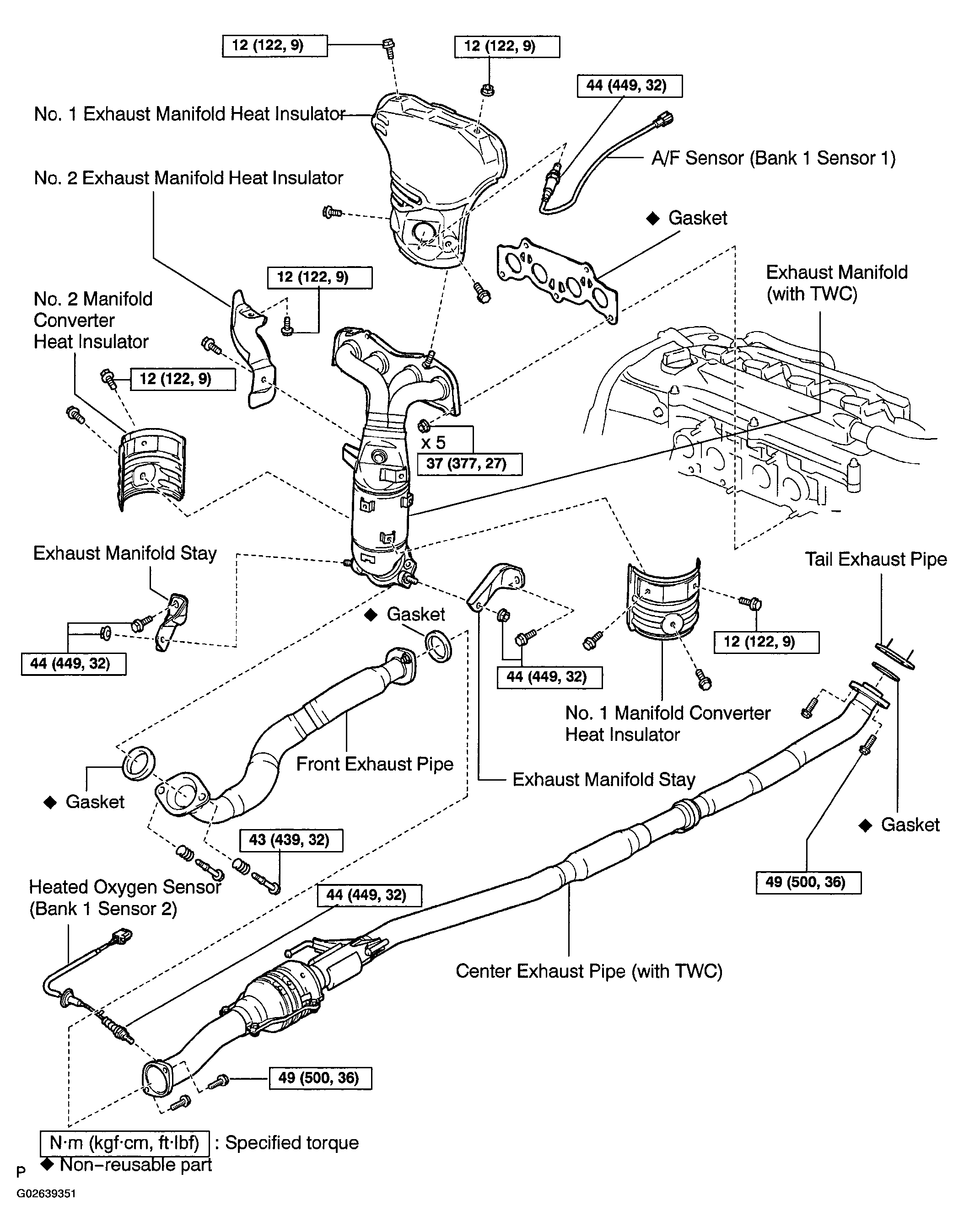

Fig 1: Exploded View Of Three-Way Catalytic Converter Components
G02639351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
