Parts Layout And Schematic Drawing: Location

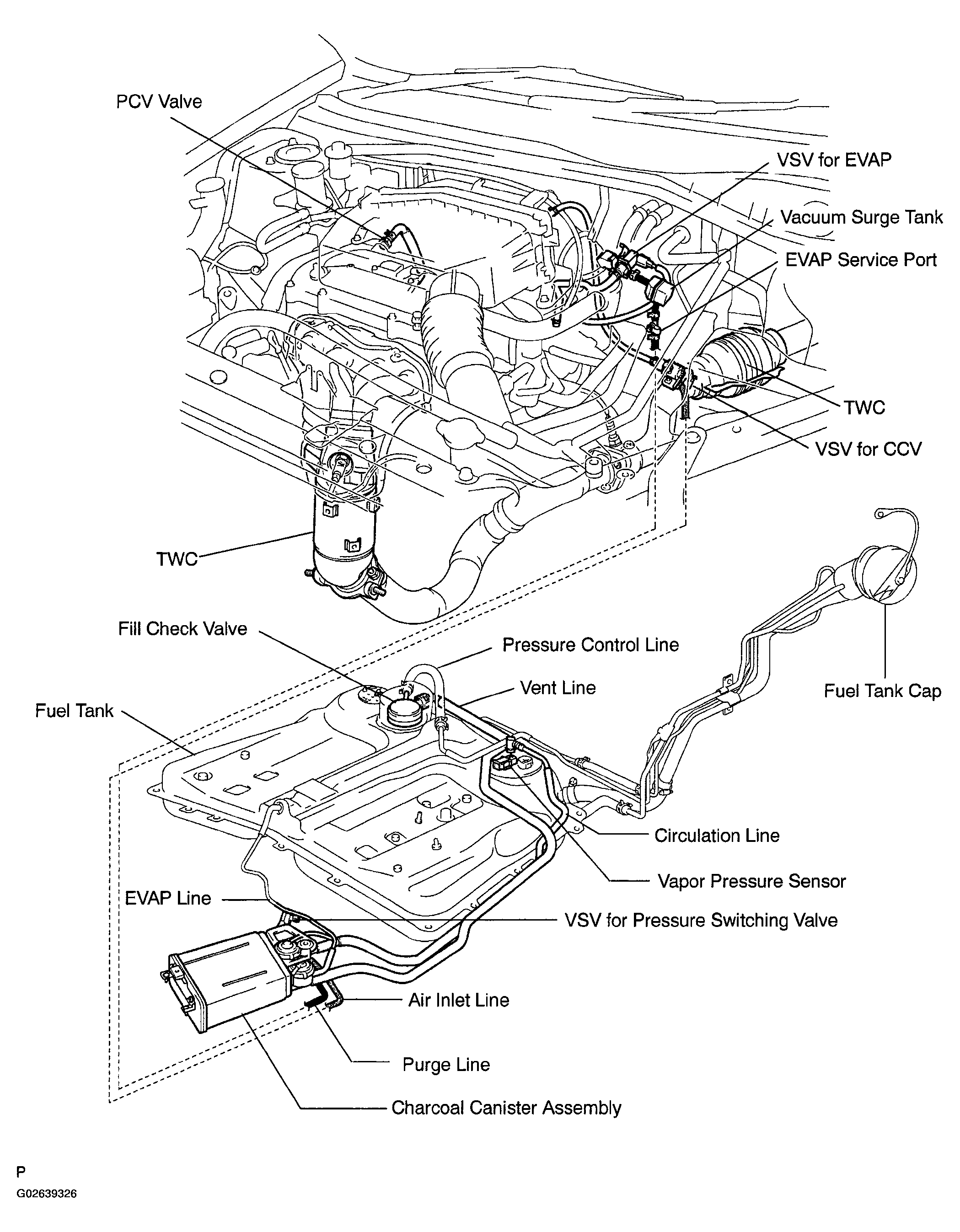

Fig 1: Emission Control System Parts Layout

G02639326

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
