Toyota
>>
2004
>>
RAV4 Base, AWD, Standard
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Abs With EBD - Diagnostics
>>
Terminals Of Ecu
Terminals Of Ecu

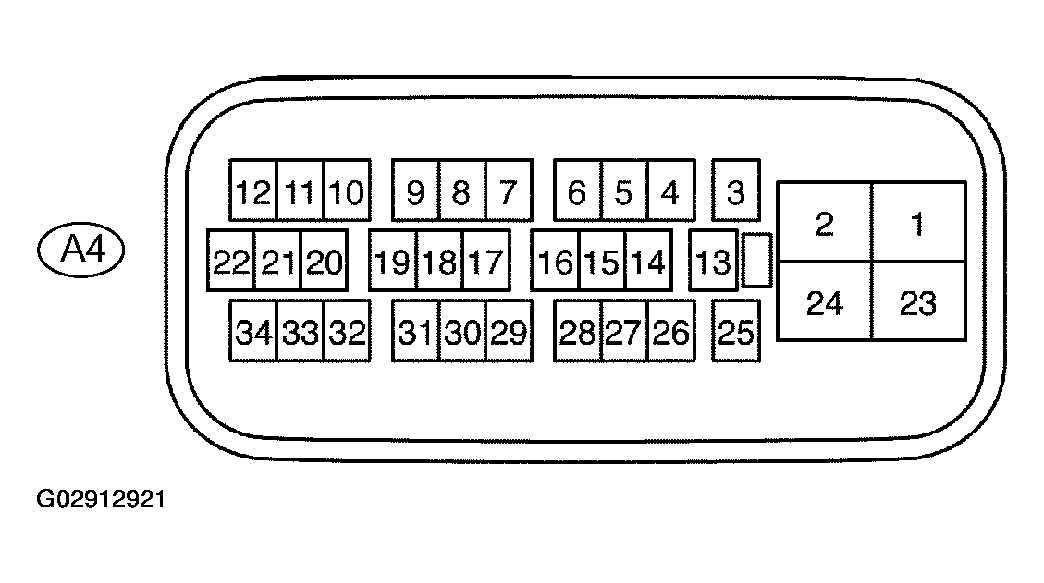

Fig 1: Locating ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

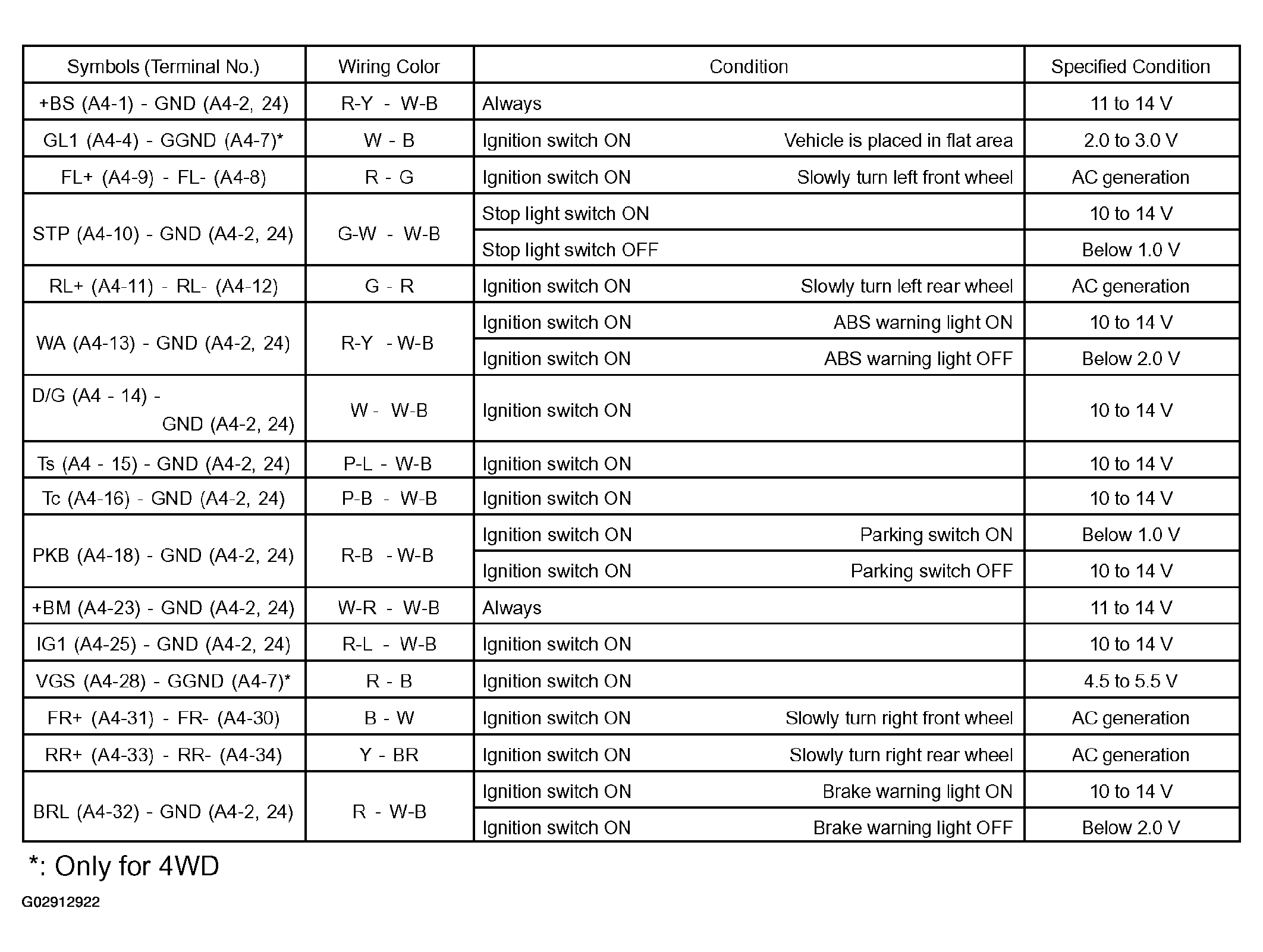

Fig 2: ECU Terminals Description Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
