Abs & VSC Actuator: Components

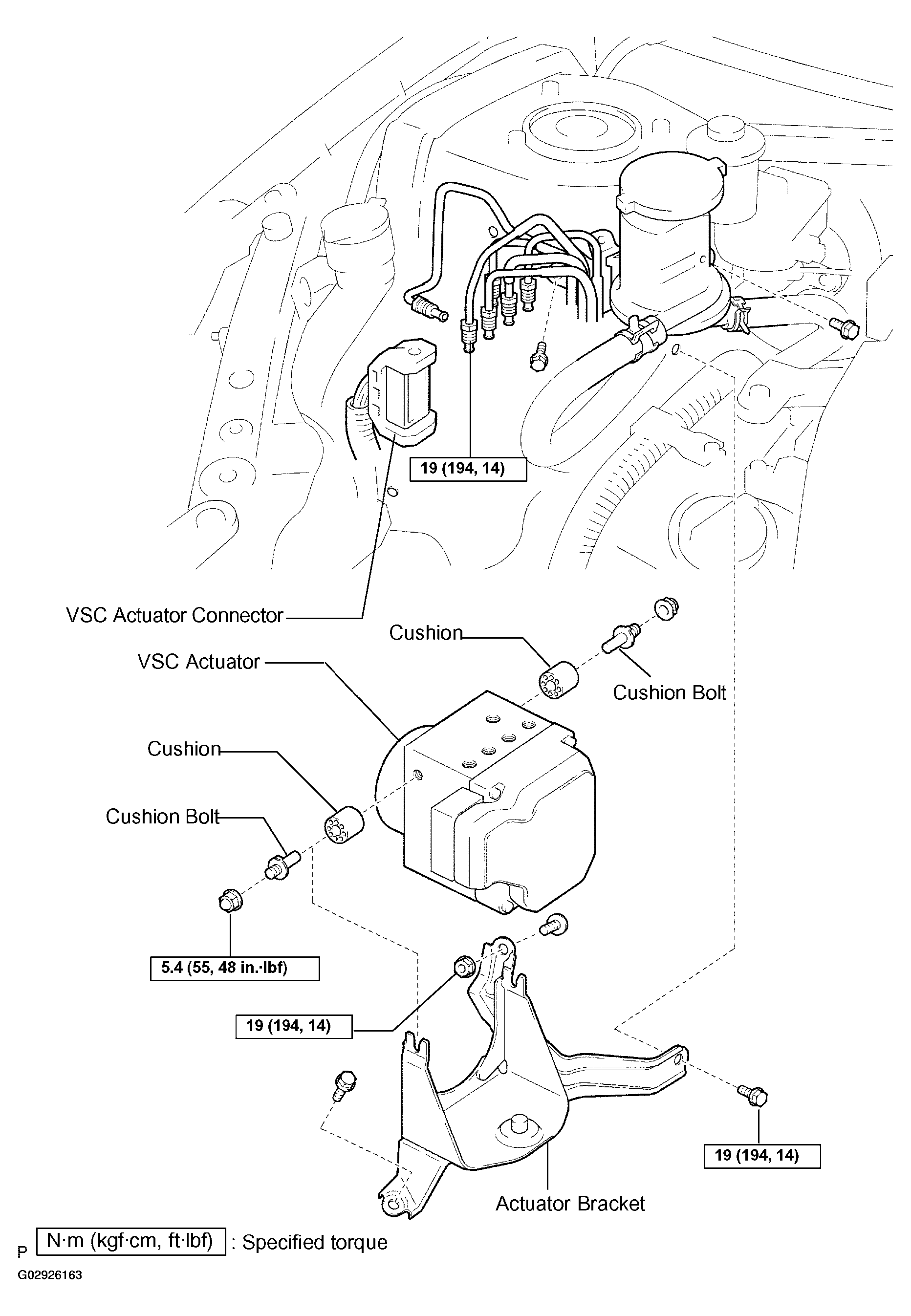

Fig 1: Locating ABS & VSC Actuator Components

G02926163

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
