Repair and Diagnosis
>>
Body & Frame
>>
Body, Cab Control Systems
>>
Body Control Systems - Diagnostics
>>
Circuit Inspection
>>
Light Control Switch Circuit (W/Daytime Running Light)
>>
Wiring Diagram
Light Control Switch Circuit (W/Daytime Running Light): Wiring Diagram

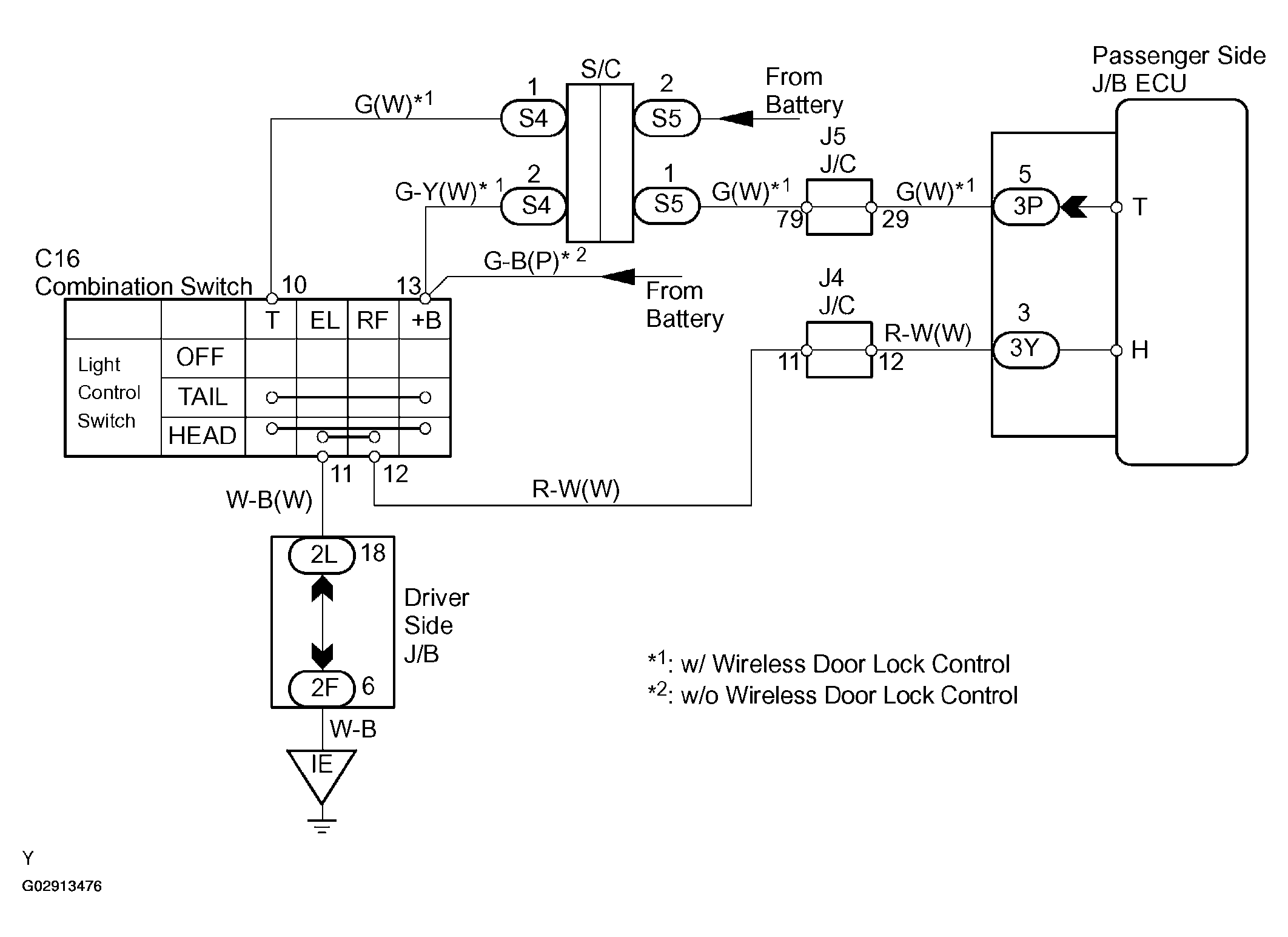

Fig 1: Wiring Diagram Of Light Control Switch Circuit (With Daytime Running Light)
