Shift Lever And Control Cable: Components

Fig 1: Exploded View Of Shift Lever And Control Cable (1 Of 2)
G02639953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

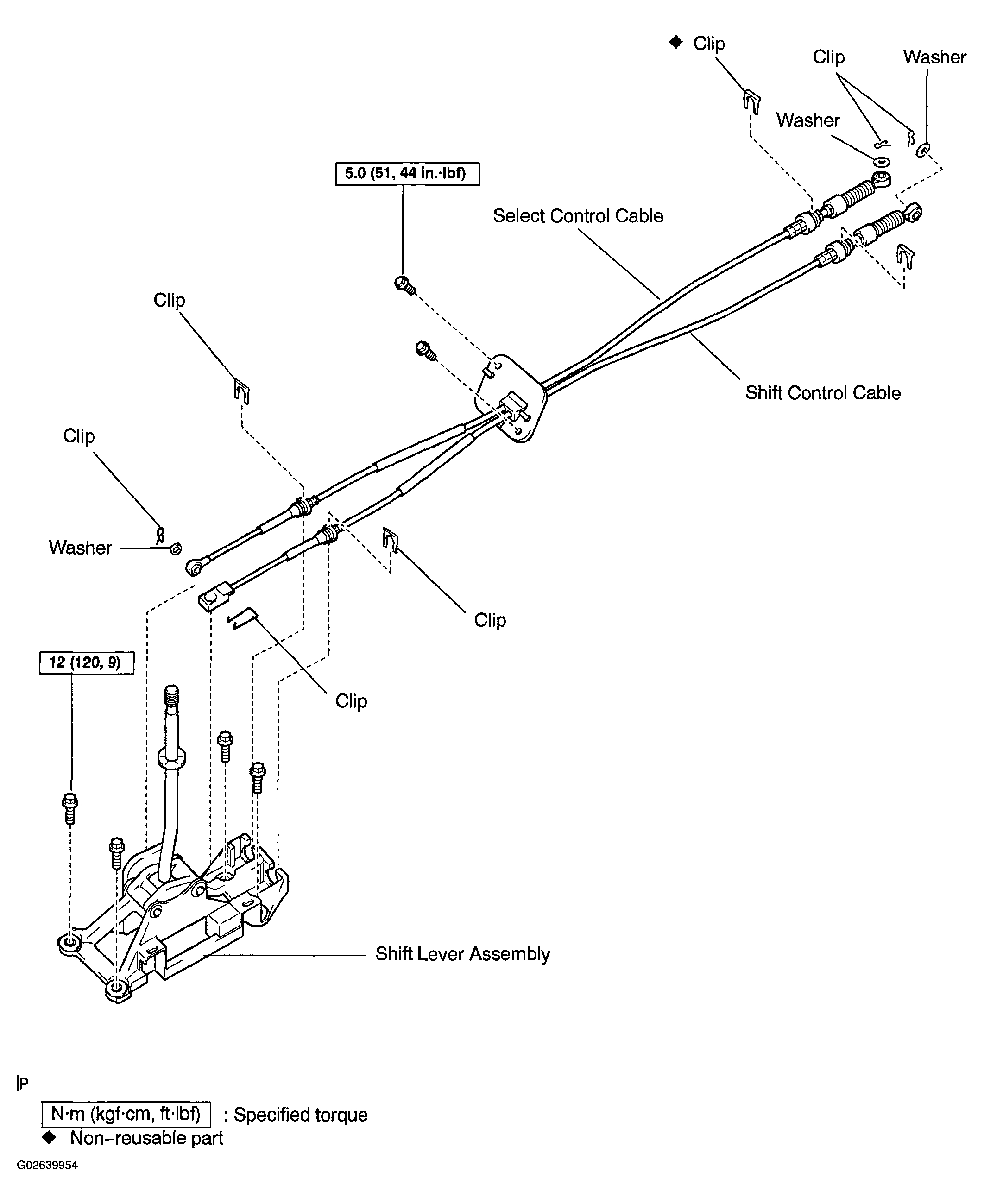

Fig 2: Exploded View Of Shift Lever And Control Cable (2 Of 2)
G02639954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
