Input Shaft: Components

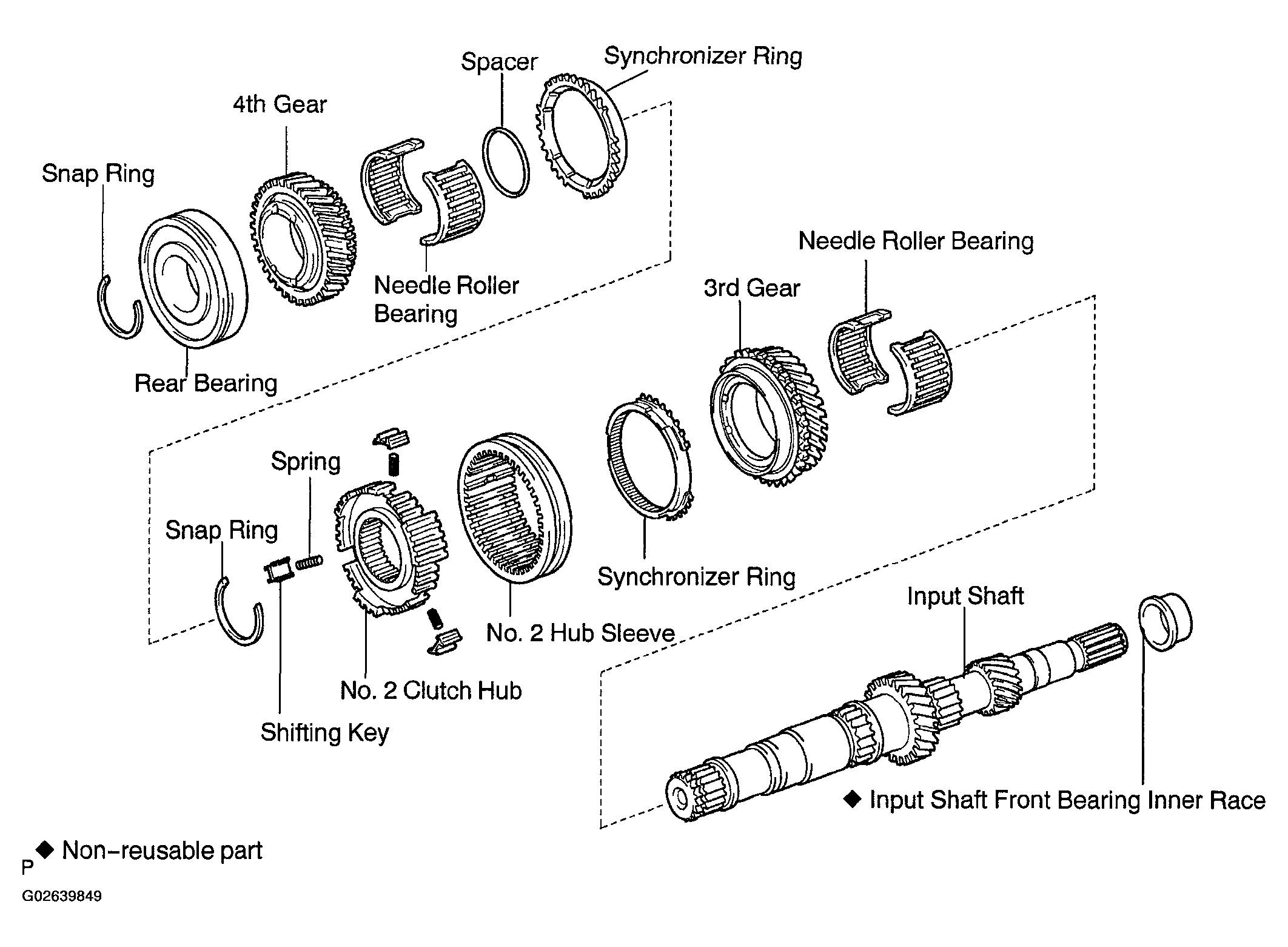

Fig 1: Exploded View Of Input Shaft Components

G02639849

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
